AGC-10-R
Bussmann
https://www.billows.com/3363234/product/EDIAGC10R
https://www.billows.com/3363234/product/EDIAGC10R
EDIAGC10R

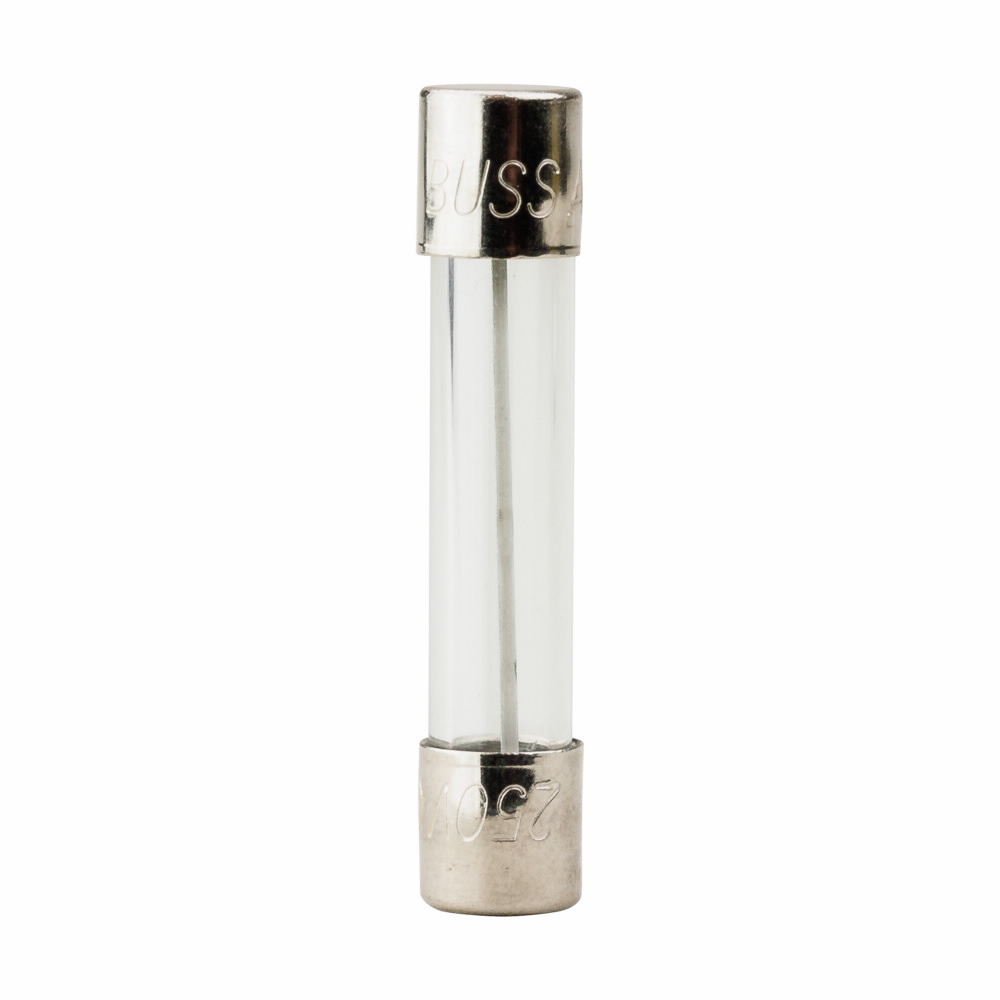

Bussmann Series AGC-10-R Small Dimension Fuse
- Manufacturers: Eaton (Group)
- Brand Name: Bussmann
- BPN: EDIAGC10R
- MPN: AGC-10-R
- UPC:051712654982
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
10A 250V 3AG - 1/4" x 1-1/4" RoHS Compliant Glass, Fast Acting Fuse
| Amperage Rating | : | 10 Amp |
| Amperage | : | 10 Amp |
| Application | : | Electronic Circuits |
| Brand Name | : | Bussmann |
| Connection Type | : | Ferrule |
| Connection | : | Ferrule end x ferrule end |
| Dimensions | : | 1.2500 IN X 0.2500 IN X 0.2500 IN |
| End Type | : | Ferrule |
| Height | : | 1/4 Inch |
| Interrupt Rating | : | 10 kAIC |
| Length | : | 1-1/4 Inch |
| Material | : | Glass tubeNickel-plated brass end cap construction |
| Response Time | : | 120 seconds maximum at 200%,60 minutes maximum at 135% |
| Size | : | 1/4 In Diameter X 1-1/4 In Length |
| Standards | : | RoHS Compliant |
| Standard | : | CSA,UL 248-14 |
| Sub Brand | : | Bussmann Series |
| Trade Slang | : | 051712654982, BUSAGC10R, Eaton/Bussmann Series, AGC-10-R, Electronic - Fast Acting, Electronic Fuses, Fuses & Accessories, Power Distribution, Bussmann, Cooper Bussman |
| Type | : | Electronic,Fast Acting |
| Voltage Rating | : | 250 Vac, 32 Vdc (self certified) |
| Voltage | : | 250 Volt |
| Weight | : | .005 lb |
| Width | : | .25 in |
Specifications
- Height: .25 IN
- Length: 1.25 IN
- Width: .25 IN
- Weight: .005 LB
- Application: Electronic circuits
- Voltage Rating: 250 Vac, 32 Vdc (self certified)
- Amperage Rating: 10A
- Interrupt Rating: 200 AIC at 250 Vac, 10 kAIC at 125 Vac
- Connection: Ferrule end X ferrule end
- Packaging Type: Standard
- Used With: out axial leads
- Fuse Indicator: Non Indicating
- Response Time: 60 min maximum at 135%, 120 s maximum at 200%
Spec Sheet
