NGB3B125B Siemens Canada
Siemens Canada NGB3B125B ITENGB3B125B
Send Print
  1. pin-int

ITENGB3B125B

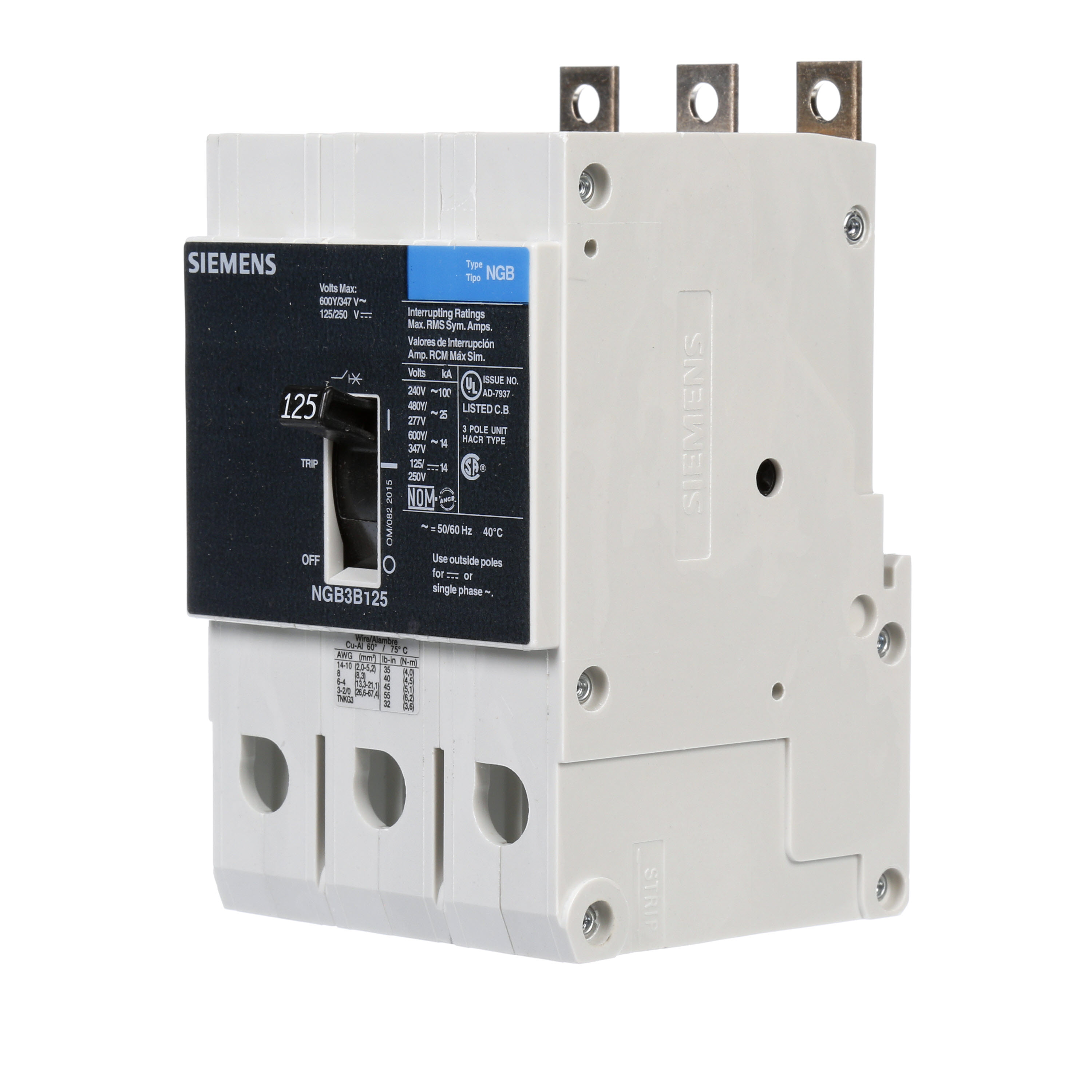

Siemens NGB3B125B 3-Pole 125 Amp 600 Volt 14 kA Molded Case Circuit Breaker

  • Manufacturers: Siemens
  • Brand Name: Siemens Canada
  • BPN: ITENGB3B125B
  • MPN: NGB3B125B
  • UPC:783643414396
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Type NGB Molded Case Circuit Breaker, 600/347V, 3 Poles, 125A, 14kA, Load Lugs

Amperage Rating      :      125A
Amperage      :      125 Amp
Application      :      INDUSTRIAL
Brand Name      :      Siemens Canada
Connection      :      Load Lugs
Current Rating      :      125 Amp
Current      :      125 Amp
ETIM 7 Class      :      EC000228
Frequency Rating      :      50/60 Hz
Height      :      4.6 Inch
Interrupt Rating      :      14 kAIC
Length      :      6.9 Inch
Number of Poles      :      3 Pole
Operating Temperature      :      40DEGC
Standards      :      UL/CSA/IEC/NOM
Sub Brand      :      NGB
  • pdfSpec Sheet https://digitalcontentcenter.compas.siemens-info.com/SIE_CS_NGB_PanelBoard-Mount-15-125A.pdf
