KON30 Edison
Send Print
  1. pin-int

EDIKON30

EFSE KON30 UL CLASS K5 FAST ACTING

  • Manufacturers: Eaton (Group)
  • Brand Name: Edison
  • BPN: EDIKON30
  • MPN: KON30
  • UPC:782634360308
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

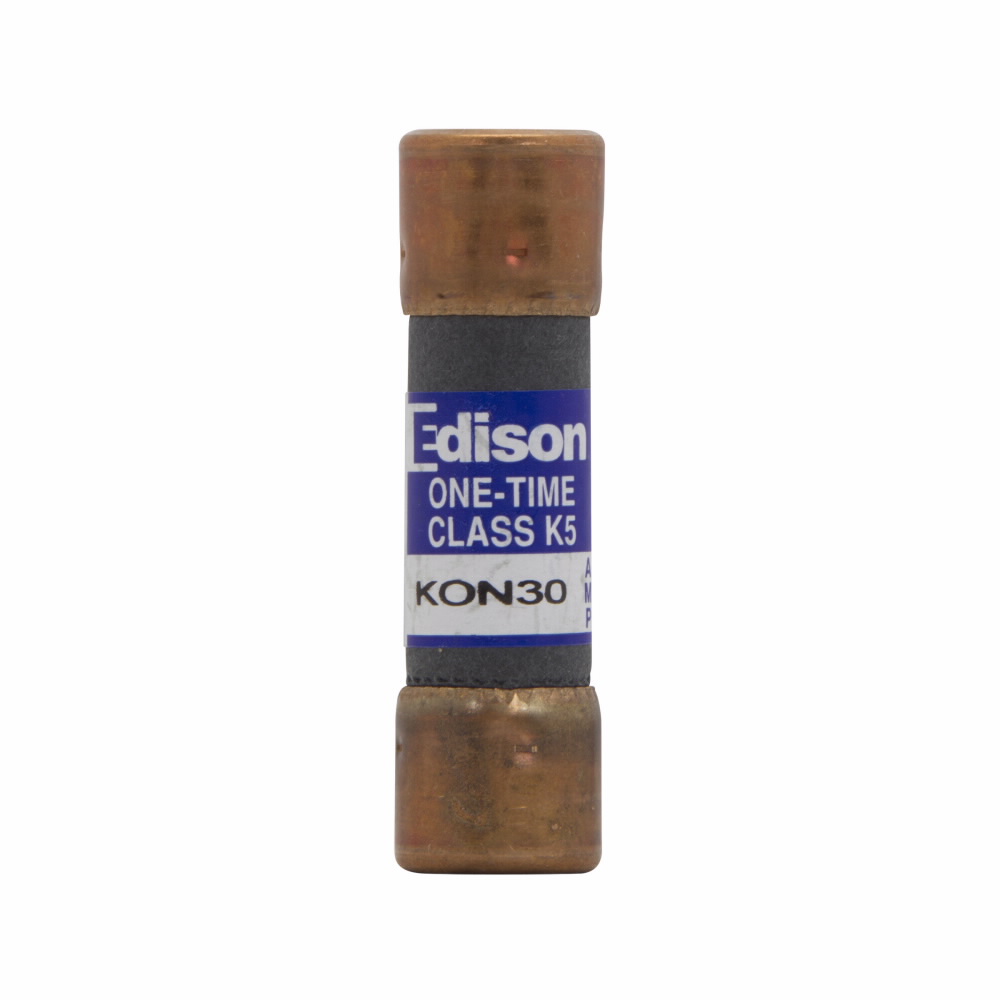

Eaton Edison KON fuse, Ferrule design, 30 A, Class K5, Non-indicating, 10 kAIC, Standard, 1, 250 V

Amperage Rating      :      30 Amp
Amperage      :      30 Amp
Brand Name      :      Edison
Class      :      Class K5
Height      :      0.56 Inch
Interrupt Rating      :      10 kAIC
Length      :      2 Inch
Voltage Rating      :      250 Volt
Voltage      :      250 Volt
Weight      :      .4 lb
Width      :      .56 in

Specifications

General

  • UPC: 782634360308
  • Product Length/Depth: 2 in
  • Product Height: .56 in
  • Product Width: .56 in
  • Product Weight: .4 lb
  • Warranty: No warranty
  • Compliances: CE Marked
  • Certifications: Not Applicable

Electrical Rating

  • Amperage Rating: 30 A
  • Interrupt rating: 10 kAIC
  • Voltage rating: 250 V

Physical Details

  • Packaging type: Standard

General Information

  • Class: Class K5
  • Fuse indicator: Non-indicating
  • Quantity: 1
  • Special features: Ferrule design
  • pdfSpec Sheet https://www.eaton.com/us/en-us/skuPage.KON30.pdf
