GFNT2-HGW
LEVITON
https://www.billows.com/3363450/product/LEVGFNT2HGW
https://www.billows.com/3363450/product/LEVGFNT2HGW
LEVGFNT2HGW
LEV GFNT2-HGW ST HG 20A SLIMLINE GF
- Manufacturers: Leviton
- Brand Name: LEVITON
- BPN: LEVGFNT2HGW
- MPN: GFNT2-HGW
- UPC:078477725061
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term

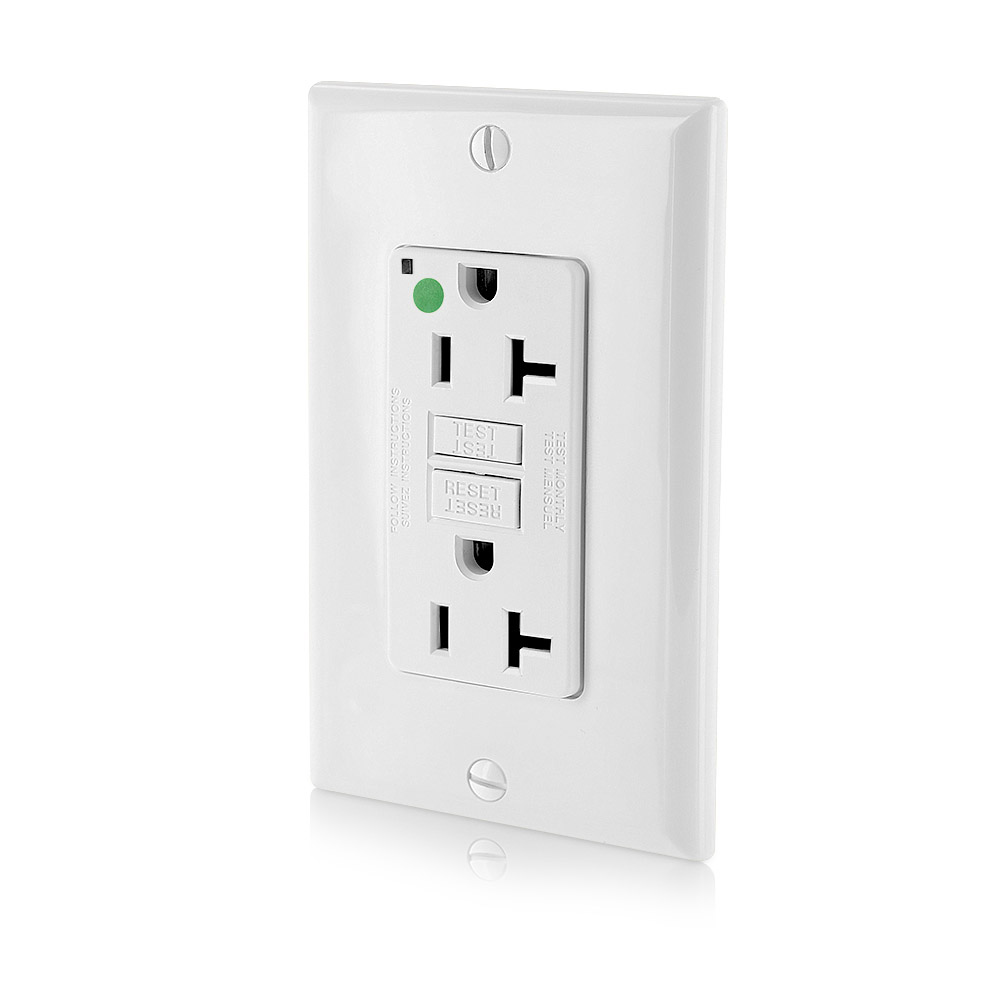

SmartlockPro GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Wallplate Included, Power Indication, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
| Amperage Rating | : | 20 Amp |
| Amperage | : | 20 Amp |
| Application | : | Extra-Heavy Duty Hospital Grade |
| Body Material | : | Polycarbonate |
| Brand Name | : | Leviton |
| Certifications | : | CSA,NOM-ANCE,UL |
| Color | : | White |
| Country of Origin | : | China |
| Device Type | : | Duplex Receptacle Outlet |
| Dimensions | : | 44.2 mm W x 34.5 mm D x 102.9 mm H |
| Enclosure Standard | : | WD-6 |
| Face Material | : | PBT |
| Finish | : | Enamel Coated |
| Flamability Class | : | Rated V-0 Per UL 94 |
| Grade | : | Hospital |
| Grounding | : | Self-Grounding |
| Horsepower | : | 1 hp |
| Item Name | : | GFCI Duplex Receptacle |
| Material | : | Polycarbonate |
| Mounting Type | : | Flush |
| NEMA Rating | : | 5-20R |
| NEMA | : | WD-1 |
| Number of Poles | : | 2 Pole |
| Number of Wires | : | 3 Wire |
| Operating Temperature | : | -35 degrees C |
| Short Circuit Current | : | 10 kA |
| Standards | : | UL Listed, CSA, NOM-ANCE Certified |
| Standard | : | ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943 |
| Sub Brand | : | Smart-Lock Pro |
| Temperature Rating | : | -35 to 66 °C |
| Terminal Connection | : | Screw |
| Termination Type | : | Back Wire,Side Wire |
| Trade Slang | : | 078477725061, gfi, gfci, smartlock, ground fault, ground, circuit, hospital, hospital grade, LEVGFNT2HGW, Leviton, GFNT2-HGW, 20 Amp - Hospital Grade GFCI Receptacles, Hospital Grade GFCI Receptacles, GFCI & AFCI Wiring Devices, Wiring Devices |
| Type | : | Self-Test Slim, Non-Tamper Resistant, Extra Heavy Duty |
| Voltage Rating | : | 125 VAC |
| Voltage | : | 125 Volt |
| Warranty Length | : | 2 yr |
Features
Patents
- CA2358721
- CA2425810
- CA2427366
- CA2515035
- CA2865659
- MX251584
- MX269232
- MX276626
- MX302458
- MX308495
- MX315596
- US7697252
- US7737809
- US8004804
- US8547126
- US8587914
- US8599522
- US9053886
- US9077091
NEMA
- WD-1
- WD-6
Color Variations
- Black
- Brown
- Gray
- Ivory
- Light Almond
- Red
- White
Specifications
- Country of Origin: China
AC Horsepower Ratings
- At Rated Voltage: 1 HP
Electrical Specifications
- Amperage: 20 A
- Grounding: Self-Grounding
- Pole: 2
- Short Circuit Current Rating: 10kA
- Voltage: 125 VAC
- Wire: 3
Environmental Specifications
- Flammability: Rated V-0 per UL 94
- Operating Temperature: -35C to +66C
Material Specifications
- Body Material: Polycarbonate
- Face Material: PBT
- Ground Clips: Brass
- Grounding Screw: Plated Steel
- Line Contacts: Brass
- Strap Material: Galvanized Steel
- Terminal Clamp: Brass
- Terminal Screws: Plated Steel
Mechanical Specifications
- Product ID: Ratings are permenantly marked on device
- Screw Terminal Torque: 14-18 in-lbs
- Terminal Accom.: 14-10 AWG solid or stranded
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Termination: Back and Side Wire
Product Features
- Brand: SmartlockPro
- Color: White
- Device Type: Duplex Receptacle Outlet
- Feature: Wallplate Included|Power Indication
- Function: GFCI
- Grade: Extra Heavy-Duty Hospital Grade
Standards and Certifications
- NEMA: WD-1 & WD-6
- ANSI: C-73
- Applicable Standards: UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
- Certification/Listing: UL, CSA, NOM-ANCE
Warranty
- Warranty: 2-Year Limited
Spec Sheet
