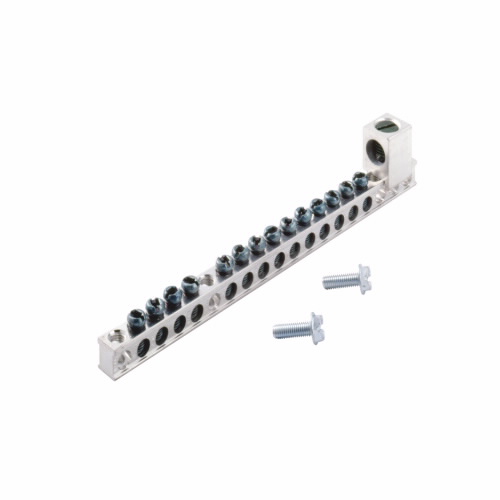

EATON GBK1420 Ground Bar Kit, For Use With CH and BR Loadcenter, 3/4 in Size, Aluminum/Copper

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CHDGBK1420
  • MPN: GBK1420
  • UPC:782113099576
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Ground Bar Kit, For Use With: CH and BR Loadcenter, Specifications: 3/4 in Size, Aluminum/Copper, 6.74 in L Dimensions

Dimensions      :      6.74 in L
Material      :      Aluminum/Copper
Specifications      :      3/4 in Size
Suitable For Use With      :      CH and BR Load Center
  • 1-3/4 in mounting hole distance
  • 14-terminal
  • pdfCatalog IDW_DOCUMENT_97979633dcaf4fc709f75ff7065ec843bc98a0d71d8e84549a700c5f2f44069d.pdf
  • pdfInstruction/Installation Manual IDW_DOCUMENT_bd4fd55ff7cbe2ee4b3003ed3cbbb2910ead70716e8121f17d5491ec72bede33.pdf
  • pdfSpecification Sheet IDW_DOCUMENT_d5fd6a3b462f61fb4cfe79bb0fac42c5df085df7e7986616139b4f4d29c15779.pdf
