MB4A10C2 HellermannTyton
Send Print
  1. pin-int

TYTMB4A10C2

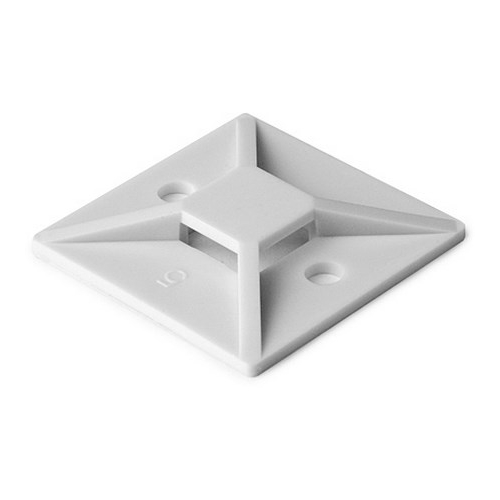

TYN MB4A10C2 MB4A MOUNTING BASE WHI

  • Manufacturers: HellermannTyton
  • Brand Name: HellermannTyton
  • BPN: TYTMB4A10C2
  • MPN: MB4A10C2
  • UPC:089306024378
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

MB4A adhesive mounts are for use with HellermannTyton T18 - T50 Series cable ties to provide stability when securing bundles. The rubber adhesive-backed mounts can be used to secure a bundle and have two predrilled holes to extend mounting options.

Application      :      HellermannTyton offers a wide variety of mounting bases suited for many applications. Mounting bases are used in conjunction with cable ties to stabilize and secure wiring bundles, both indoors and outdoors.
Brand Name      :      HellermannTyton
Cable Size      :      1.12 in
Color      :      White
Country of Origin      :      USA
Flamability Class      :      UL 94 V-2
Height      :      0.22 Inch
Length      :      1.12 Inch
Material      :      Polyamide
Operating Temperature      :      -40 degrees C
Standards      :      UL Recognized (US and Canada)
Standard      :      UL Recognized (US And Canada)
Sub Brand      :      Cable Tie Mounts
Trade Slang      :      089306024378, 1-518-05345, EF14040, TYNMB4A, cable tie base, cable tie mount, TYNMB4A10C2, HellermannTyton, MB4A10C2, Cable Tie Mounting Bases, Cable Ties & Accessories, Cable Management, Fasteners, Sticky backs, Tyton
Type      :      MB4A

Features

  • For use with HellermannTyton T18 - T50 cable ties to provide stability when securing bundles
  • 4-way opening allows cable ties to be installed parallel or perpendicular to bundles
  • The rubber-based adhesive is an economical choice ideal for indoor applications, with a static load weight of 1
  • 1 lb
  • Two predrilled holes extend mounting options and solutions
  • Extended adhesive liner is easy to remove quickly

Specifications

  • Flammability: UL 94 V-2 (excluding adhesive)
  • Country of Origin: US
  • Material: Polyamide 6.6 (PA66)
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Color: White (WH)
  • Length (Imperial): 1.12 "
  • Width W (Imperial): 1.12 "
  • Width W (Metric): 28.5 mm
  • pdfSpec Sheet https://media.distributordatasolutions.com/xlsx_hellerman_tyton/2021q4/documents/cdd965d9fc8163e5416cb07ca80bfc68ab95e880.pdf
