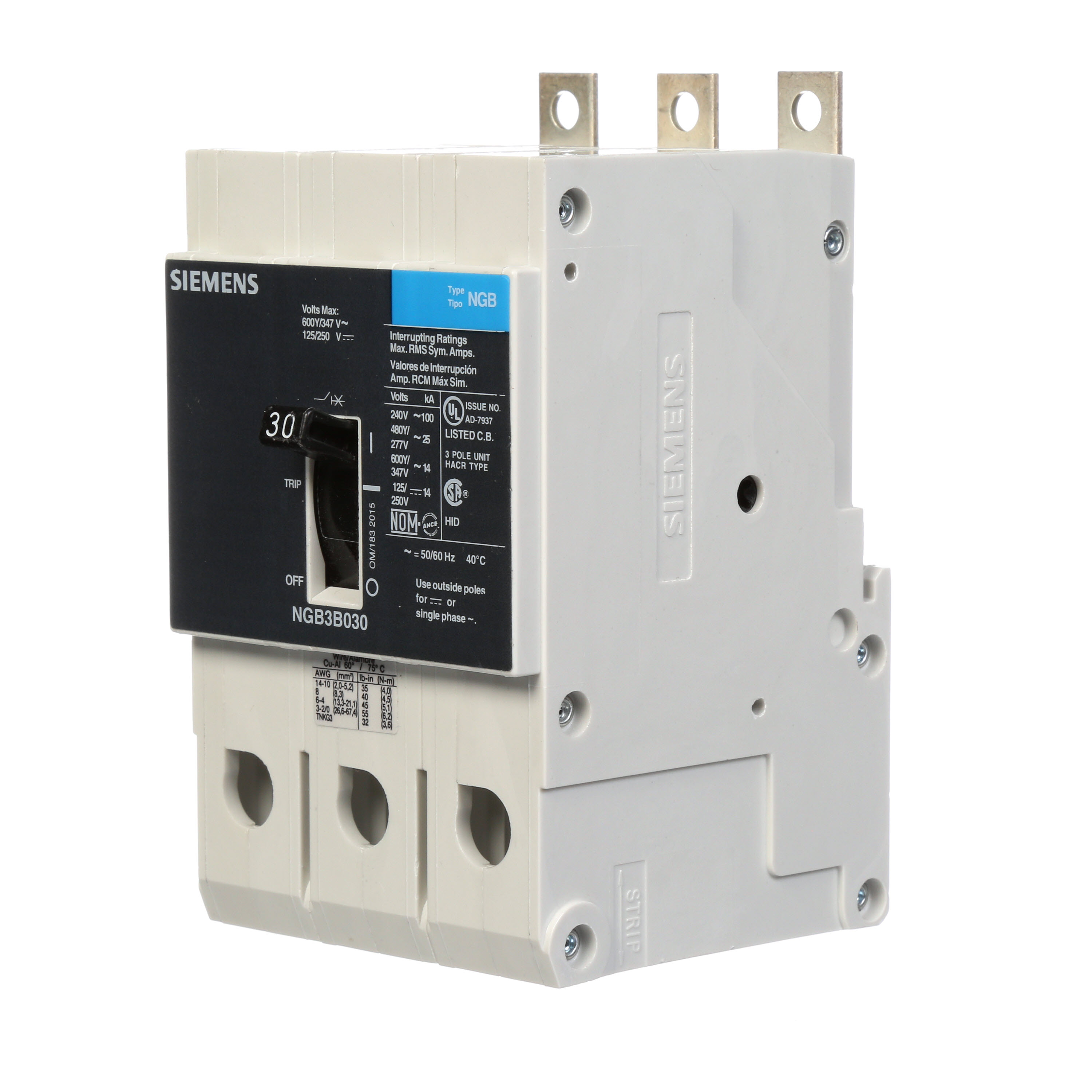

Siemens NGB3B030B 3-Pole 30 Amp 600 Volt 14 kA Molded Case Circuit Breaker

  • Manufacturers: Siemens
  • Brand Name: Siemens Canada
  • BPN: ITENGB3B030B
  • MPN: NGB3B030B
  • UPC:783643414280
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 30A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.

Amperage Rating      :      30A
Amperage      :      30 Amp
Application      :      INDUSTRIAL
Brand Name      :      Siemens Canada
Connection      :      Load Lugs
Current Rating      :      30 Amp
Current      :      30 Amp
ETIM 7 Class      :      EC000228
Frequency Rating      :      50/60 Hz
Height      :      2.9 Inch
Interrupt Rating      :      14 kAIC
Length      :      4.7 Inch
Number of Poles      :      3 Pole
Operating Temperature      :      40DEGC
Standards      :      UL/CSA/IEC/NOM
Sub Brand      :      NGB
  • pdfSpec Sheet https://ideadigitalasset.com/DAMRoot/Original/10055/10991_ID-SPE-v1-SF17-07-033.pdf
