10250T103
EATON
https://www.billows.com/3363707/product/CHM10250T103
https://www.billows.com/3363707/product/CHM10250T103
CHM10250T103

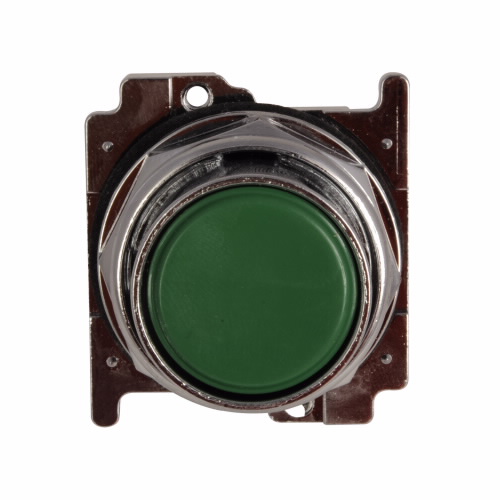

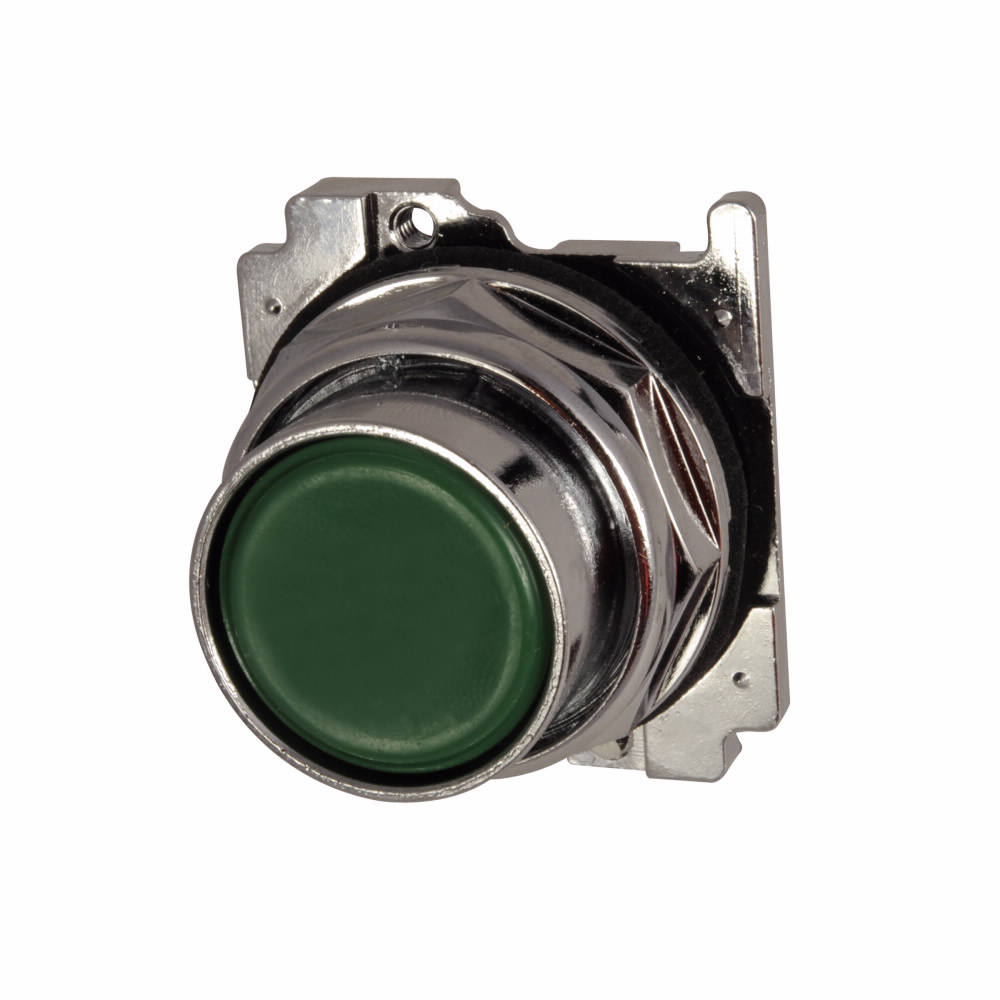

Eaton Electrical 10250T103 30.5 mm Momentary Die-Cast Zinc IP65 Flush Heavy-Duty Non-Illuminated Push Button Operator
- Manufacturers: Eaton (Group)
- Brand Name: EATON
- BPN: CHM10250T103
- MPN: 10250T103
- UPC:782113203294
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Eaton, 30.5 mm, Heavy-Duty Watertight/Oiltight Pushbutton,Class I Division 2,Green,Plastic Actuator,Chrome bezel,Non-illuminated,Flush mounting,Momentary,30.5 mm,Flush Pushbutton,10250T Series
| Action | : | Momentary |
| Actuator | : | Flush Button |
| Base Material | : | Plastic |
| Bezel Color | : | Chrome |
| Brand Name | : | Eaton |
| Color | : | Green |
| Degree of Protection | : | IP65 |
| Dimensions | : | 48.26 mm L x 50.8 mm W x 53.34 mm H |
| Environmental Conditions | : | 50 - 95% Relative Humidity |
| For Use With | : | 30.5 mm Heavy-Duty Watertight/Oiltight Pushbuttons and Indicating Lights |
| Head Material | : | Plastic |
| Height | : | 2.1 Inch |
| Item Name | : | Non-Illuminated Push Button Operator |
| Length | : | 1.9 Inch |
| Mounting Type | : | Flush |
| Mounting | : | Flush |
| Size | : | 30.5 mm |
| Standards | : | CE EN60947-5-1 Certified, UL 508, 131568 Listed, CSA C22.2 No. 14 LR68551 Certified |
| Temperature Rating | : | 1 - 150 °F |
Specifications
- Product category: Flush pushbutton
- Series: 10250T
- Type: Class I division 2
- Actuator color: Green
- Operating mode: Momentary
- Actuator material: Plastic
- Rating: NEMA 12
- Illumination: Non-illuminated
- Size: 30.5 mm
- Mounting method: Flush
- Bezel: Chrome
- Degree of protection: NEMA 13
General
- UPC: 782113203294
- Product Length/Depth: 1.9 in
- Product Height: 2.1 in
- Product Width: 1.9 in
- Product Weight: .2 lb
- Warranty: 1 year
- Compliances: CE Marked
- Certifications: UL Listed
Spec Sheet
