1MP2122RRL
EATON
https://www.billows.com/3363801/product/CHD1MP2122RRL
https://www.billows.com/3363801/product/CHD1MP2122RRL
CHD1MP2122RRL

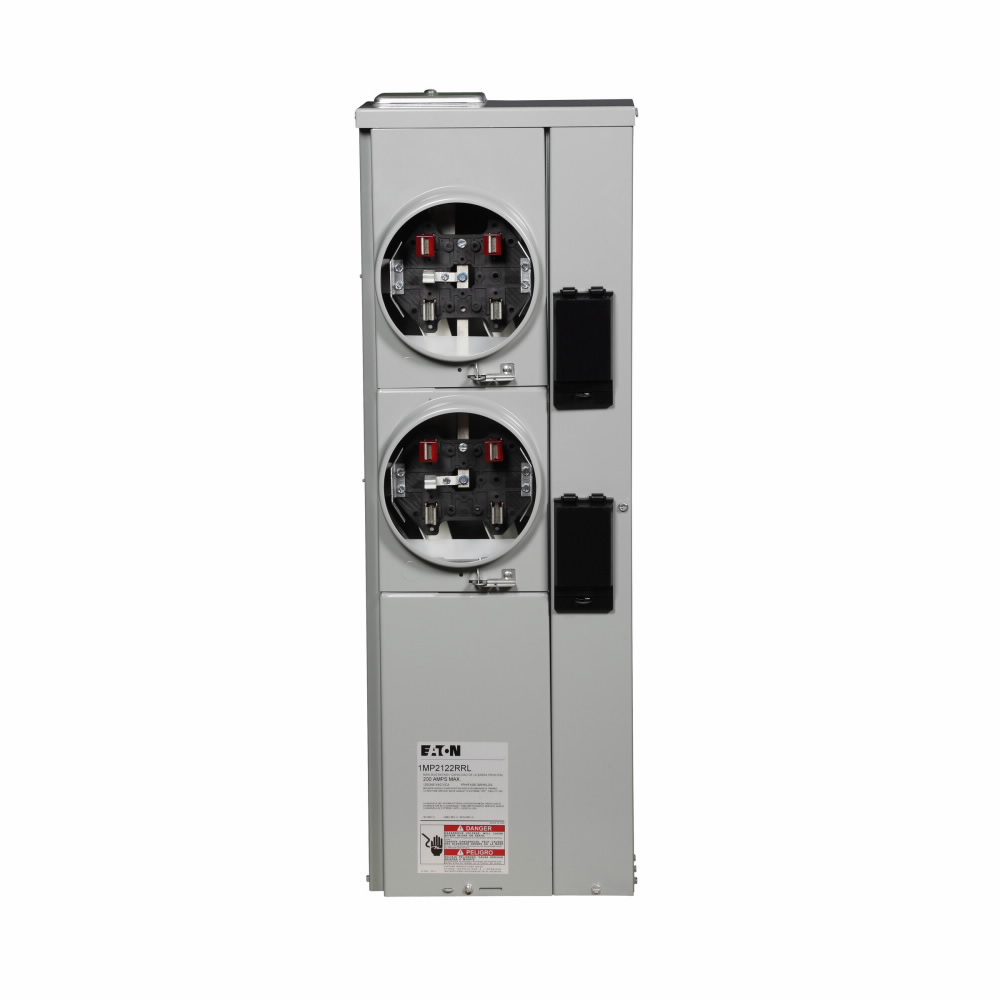

Eaton Electrical 1MP2122RRL 120/240 VAC 200 Amp 1-Phase 3-Wire 2-Socket Aluminum Ringless Meter Pack
- Manufacturers: Eaton (Group)
- Brand Name: EATON
- BPN: CHD1MP2122RRL
- MPN: 1MP2122RRL
- UPC:786849052478
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Eaton meter pack, Socket amperage: 125A, Amperage rating: 125A, Aluminum, Bus rating: 200A, No bypass, Indoor/outdoor, Up to 100 KAIC, Five-jaw, 2 Sockets, Single-phase in/single-phase out, Ringless, 120/240 Vac
| Amperage Rating | : | 125 Amp |
| Amperage | : | 125 Amp |
| Application | : | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Brand Name | : | Eaton |
| Bus Material | : | Aluminum |
| Dimensions | : | 7.5600 IN X 11.8800 IN X 34.5600 IN |
| Enclosure Type | : | Indoor/Outdoor |
| Height | : | 34.56 Inch |
| Interrupt Rating | : | 100 kAIC |
| Length | : | 7.56 Inch |
| Number of Jaws | : | 5 |
| Number of Phases | : | 1 Phase |
| Phase | : | 1 |
| Standards | : | UL Listed |
Specifications
- Interrupt rating: Up to 100 KAIC
- Utility approvals: ME : Central Maine Power
- Bus material: Aluminum
- Number of jaws: Five-jaw
- Enclosure: Indoor/outdoor
- Security: Ringless
- Amperage Rating: 125A
- Socket amperage: 125A
- Secondary circuit breaker: BR2_, BRH2_, BRHH2_, BRX2_
- Number of sockets: 2
- Bypass: None
- Bus Rating: 200 A
- Voltage rating: 120/240 V
General
- UPC: 786849052478
- Product Length/Depth: 7.56 in
- Product Height: 34.56 in
- Product Width: 11.88 in
- Product Weight: 34 lb
- Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Certifications: UL Listed
Spec Sheet
