T/Y+JUG 3M
3M T/Y+JUG MMMTYJUG
Send Print
  1. pin-int

MMMTYJUG

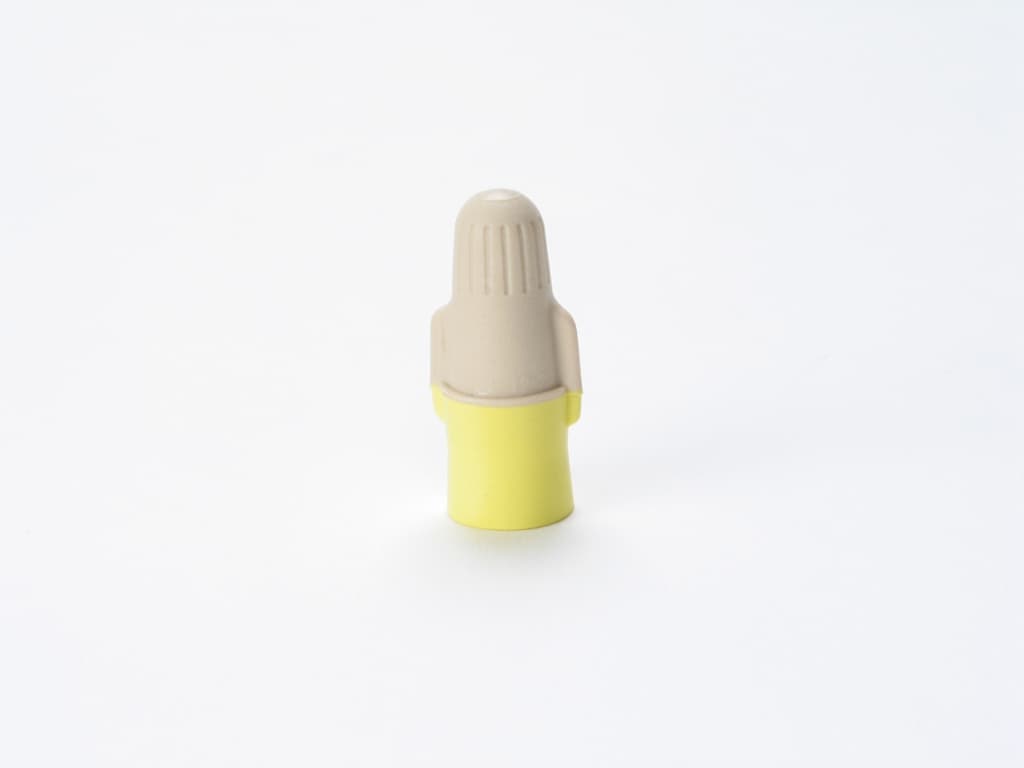

3M T/Y+JUG Tan/Yellow Performance Plus™ Wire Connector (Jug of 500)

  • Manufacturers: 3M
  • Brand Name: 3M
  • BPN: MMMTYJUG
  • MPN: T/Y+JUG
  • UPC:051128552193
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.

Brand Name      :      3M
Material      :      Plastic
Max Operating Temperature      :      221 degrees F
Voltage Rating      :      600/1000 Volt
Voltage      :      600/1000 Volt

Features

  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed
  • UL Listed and CSA Certified

Specifications

  • Color Family: Multi-Color
  • Conductor Sizes: 22 - 12 AWG
  • Conductor Size Unit: AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Performance Plus Wire Connector
  • Flame Retardant: Yes
  • Material: Plastic
  • Maximum Conductor Size: 12 AWG
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 V
  • Maximum Wire Gauge: 12 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Operating Temperature (Celsius): 0 NP
  • Minimum Operating Temperature (Fahrenheit): 0 NP
  • Minimum Order Quantity: 500
  • Minimum Wire Gauge: 22 AWG
  • Product Color: Yellow - Tan
  • Product Type: Connector
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Voltage Rating: 600 Volt
  • Wire Connector Type: Twist-on Wire Connectors
  • pdfSpec Sheet https://media.distributordatasolutions.com/3M/2020q3/documents/002fbbc05a674e532f2fb8bf05305b5439dde6df.pdf
