Wiremold 525I 20 Amp 125 Volt 4-Piece Duplex Plate Pedestal Service Fitting

  • Manufacturers: Legrand
  • Brand Name: Legrand
  • BPN: WIR525I
  • MPN: 525I
  • UPC:786564015154
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

525 Series Service Fittings provide an expanded range of services to include audio/video devices. 525 Series Service Fittings’ four-piece design delivers the flexibility of interchangeable faceplates and the durability to withstand multiple moves, adds and changes. These fittings can be applied to Walkerduct® Pro Series, Walkerduct® Underfloor Duct, Flushduct® and Walker 800 Series Floor Boxes. 525 Series Service Fittings are made from die-cast aluminum with a brushed satin finish. Each pedestal provides a single service, with multiple fittings required for two or more services. This line of fittings is ideal for use in schools, commercial office spaces and in labs.

Application      :      Commercial
Brand Name      :      Legrand
Buy American Compliant      :      Y
Cable Entry      :      Through Floor
Certifications      :      CULUS,NAFTA,ROHS
Color      :      Silver
Construction      :      Not Assembled
Country of Origin      :      USA
Material      :      Aluminum
Mounting      :      Screw On
Size      :      4 7/16"L x 3 1/8"W x 3"H
Standards      :      cULus Listed Underfloor Raceway Fittings: File E11912, Guide RQKX Meets Article 390 of NEC
Sub Brand      :      Wiremold
Trade Slang      :      786564015154, wiremold, service fitting, fitting, bracket, floor box, WMD525I, Wiremold, 525I, Floor Boxes - Service Fittings, Floor Box - Accessories, Boxes - Recessed, Boxes, Enclosures
Type      :      525 Series Service Fittings



  • cULus Listed
  • RoHS Compliant
  • NAFTA Compliant

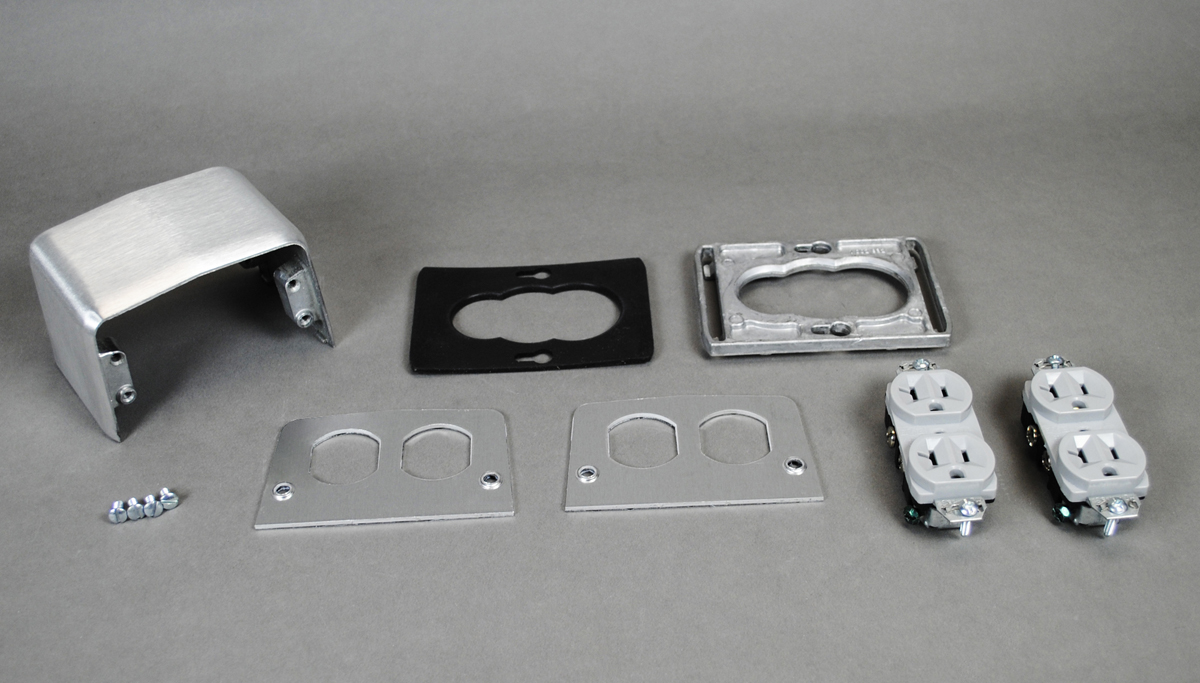

  • 20A 125V duplex plate two sides. 20A 125V Receptacles included. NOTE: Four-piece service fittings include: housing and base plate. Receptacles included when indicated in part number description. 525 Series Service Fittings have 27 cubic inches (442ml) of capacity.


  • Product Line: Wiremold


  • Country of Origin: United States
  • Special Features: Die-cast aluminum with satin finish. Durable construction provides a fitting that performs and maintains a good appearance after years of service.
  • Construction: Not Assembled
  • Application Sector: Commercial
  • Cable Entry: Through Floor in
  • Standard: cULus Listed Underfloor Raceway Fittings: File E11912, Guide RQKX Meets Article 390 of NEC
