UBHRS101BCH
EATON
https://www.billows.com/3364002/product/CHDUBHRS101BCH
https://www.billows.com/3364002/product/CHDUBHRS101BCH
CHDUBHRS101BCH
ETN UBHRS101BCH MtrSkt,125A,Ringles
- Manufacturers: Eaton (Group)
- Brand Name: EATON
- BPN: CHDUBHRS101BCH
- MPN: UBHRS101BCH
- UPC:782116074037
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term

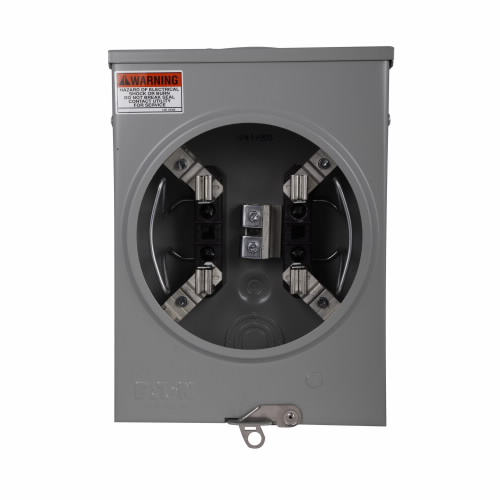

Eaton meter socket, 1-pos resi service, 125A, Over, 3-5/16 inch hub open, #8-2/0 AWG, 4-jaw, 1-ph, #8-2/0 AWG, Horn bypass, 3-wire, Ringless, 600 Vac
| Amperage Rating | : | 125 Amp |
| Amperage | : | 125 Amp |
| Application | : | Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other |
| Brand Name | : | Eaton |
| Dimensions | : | 3.5000 IN X 8.0000 IN X 10.8800 IN |
| Enclosure Material | : | Steel |
| Feed Type | : | Overhead |
| Height | : | 10.88 Inch |
| Length | : | 3-1/2 Inch |
| Number of Jaws | : | 4 |
| Number of Phases | : | 1 Phase |
| Number of Wires | : | 3 Wire |
| Phase | : | 1 |
| Standards | : | UL Listed |
Specifications
- Special features: Barrel lock provisions
- Phase: Single-phase
- Utility approvals: PA : PECO Energy
- Number of jaws: Four-jaw
- Security: Ringless
- Amperage Rating: 125A
- Hub type: 3-5/16 in hub opening plate
- Line: #8-2/0 AWG
- Enclosure material: 16 GA GALV STEEL
- Load: #8-2/0 AWG
- Type: Single-position residential service
- Feed type: Overhead
- Number of sockets: 1
- Bypass: Horn
- Number of wires: Three-wire
- Voltage rating: 600 V
General
- UPC: 782116074037
- Product Length/Depth: 3.5 in
- Product Height: 10.88 in
- Product Width: 8 in
- Product Weight: 14 lb
- Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Certifications: UL Listed
Spec Sheet
