C30CNE20H0 EATON
Send Print
  1. pin-int

CHMC30CNE20H0

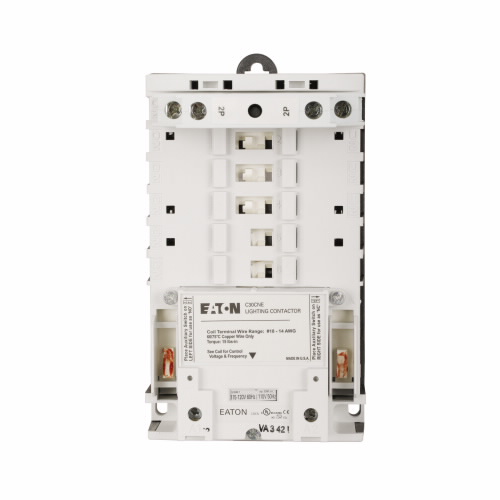

EATON C30CNE20H0 Electrically Held Lighting Contactor, 240/265 to 277 VAC V Coil, 1NO-2NO Contact, 2 Poles

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CHMC30CNE20H0
  • MPN: C30CNE20H0
  • UPC:782116124589
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON's lighting contactors are designed to provide a safe, convenient means for local or remote switching of tungsten (incandescent filament) or ballast (fluorescent and mercury arc) lamp loads. They are also suitable for other loads such as low pressure and high pressure sodium lamp loads and other non-motor (resistive) loads. They are not recommended for most sign flashing loads. These lighting contactors are designed to withstand the large initial inrush currents of tungsten lamp loads without contact welding. They are fully rated and do not require derating.

EATON Lighting Contactor, Electrically/Mechanically Held, Series: C30CN, 240/277 VAC Coil, 2 Pole, 50/60 Hz Frequency, 1NO-2NO Contact Configuration, 3 Auxiliary Contacts, 30 A Contact, Open Enclosure, -13 to 104 deg F Operating, 7.39 in L x 4.18 in W x 3.86 in H Dimensions

Coil Voltage      :      240/277 VAC
Contact Configuration      :      1NO-2NO
Contact Rating      :      30 A
Dimensions      :      7.39 in L x 4.18 in W x 3.86 in H
Enclosure Type      :      Open
Frequency Rating      :      50/60 Hz
Number of Auxiliary Contacts      :      3
Number of Poles      :      2
Operating Temperature      :      -13 to 104 deg F
Series      :      C30CN
Type      :      Electrically/Mechanically Held
  • Power poles latch easily onto the base and designating them as NO/NC is a simple matter of left or right positioning
  • Additional poles, either NO/NC, may be easily added at any time
  • Low input VA permits long wire runs
  • pdfCatalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_0a3f9be9427f3b11ddd40f8d9bea6227f231ec02b99f172ccef93d92e4b2168d.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_2f473bc78385d32999f93a1ee303942c00eae09d7f7aa5dacb10d28581e2aa94.pdf
  • pdfTechnical Bulletin https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_6c8242fc0a93fc3ec060b41e1a8ec7277ba2e861b9baaa4ebed6a25a0b01002d.pdf
