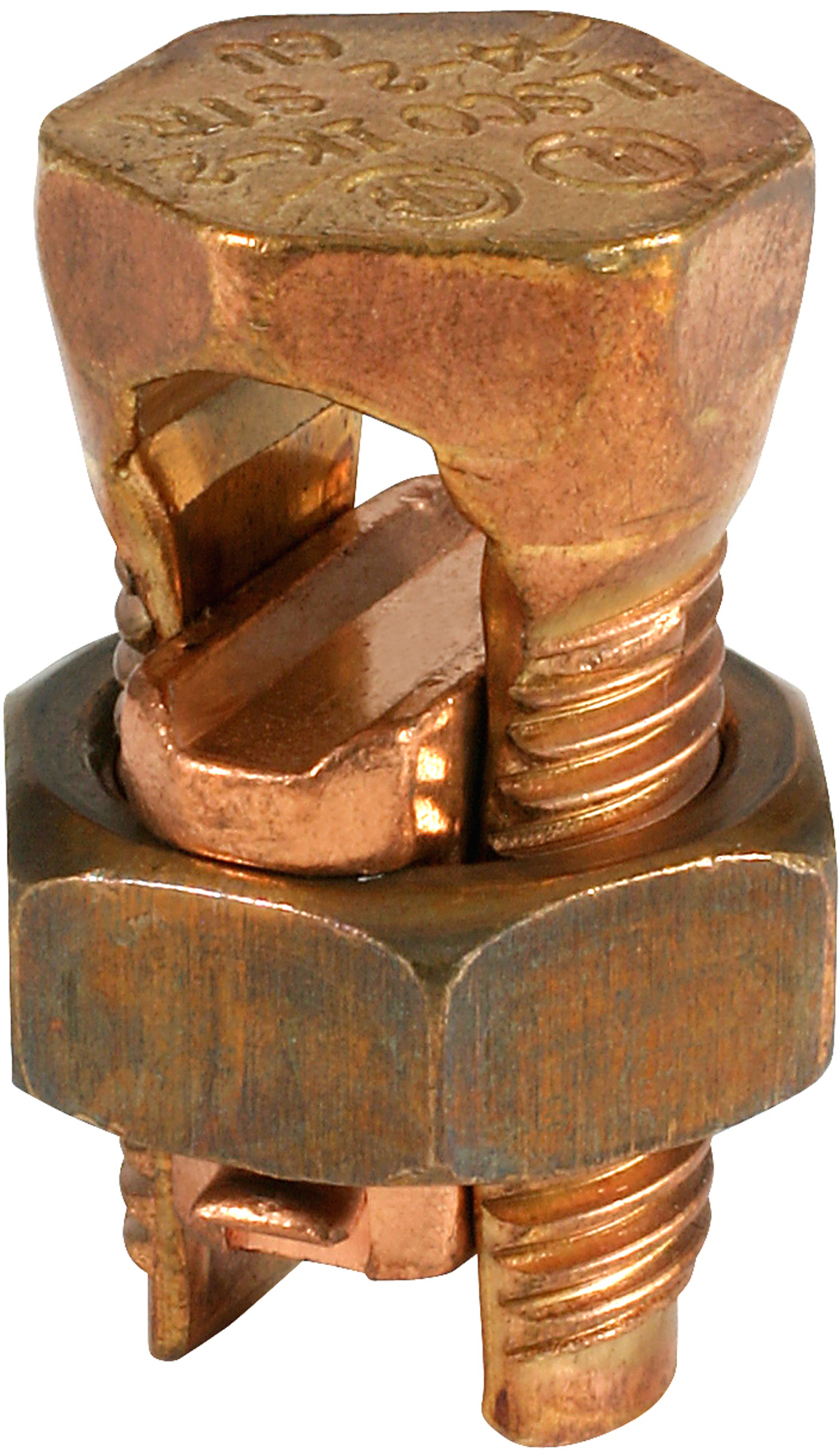

Ilsco IK-500 Copper Split Bolt, Conductor Range for Equal Main & Tap 500-250, UL, CSA

  • Manufacturers: ILSCO
  • Brand Name: Ilsco
  • BPN: ILSIK500
  • MPN: IK-500
  • UPC:783669470222
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

ILSCO Split Bolt, Mechanical connection, Copper material, UL 467 Listed, UL 486A/B Listed, C22.2 No. 65, C22.2 No. 188, 1 conductors, 1 ports/wireways, Drive Type Main 1-5/8, 1-13/16 External Hex, rated for 35 kV, primary color Copper, 1 poles,

Application      :      For Direct Burial in Earth and Concrete
Bolt Size      :      0.834 in
Brand Name      :      Ilsco
Carton Qty      :      1
Color      :      Copper
Conductor Material      :      Copper
Conductor Range      :      AL Solid (Primary, run, main, line):NA;CU Solid (Primary, run, main, line):NA;CU Stranded (Primary, run, main, line):NA;AL Stranded (Primary, run, main, line):NA
Conductor Type      :      Solid Copper, Compact Copper, Compressed Copper, Concentric Copper
Connection Type      :      Mechanical
Connection      :      Mechanical
Direct Burial Y/N      :      Yes
Finish      :      NA
Height      :      1.81 Inch
Inner Diameter      :      1-5/8 in
Insulation      :      NA
Item Name      :      Split Bolt Connector
Length      :      3 Inch
Main Conductor Size      :      500 - 250 kcmil
Material      :      Copper
Number of Conductors      :      1
Nut Size      :      1.812 in
Overall Length      :      3 in
Standards      :      UL 467, UL 460C, UL File Number E6207, CSA Certified, ROHS Compliant
Sub Brand      :      ClearChoice
Tap Conductor Size      :      500 kcmil - 8 AWG
Temperature Rating      :      90 °C
Tightening Torque      :      825 in-lb
Trade Slang      :      783669470222, IK, Split Bolt, Copper Split Bolt, ILSIK500, Ilsco, IK-500, Split Bolts - Copper, Split Bolts, Lugs & Split Bolts, Connectors, Crimps, Termination
Type      :      IK:CU SPLIT BOLT
Voltage Rating      :      2000 Volt
Voltage      :      35 Volt

Specifications

  • Height: 1.81 in
  • Length: 3 in
  • Weight: 0.831 lbs
  • Width: 2.09 in

Additional Class Attributes

  • Connection: Mechanical
  • Number of Conductors: 1
  • Number of Poles: 1

Dimensions

  • Drive Size Main: 1-5/8, 1-13/16
  • Drive Type Main: External Hex
  • Height BX (IN): 2.25
  • Weight BX (LB): 0.9769
  • Width BX (IN): 4.375
  • Wire Diameter Range Primary (IN): 0.575 - 0.815

Additional Technical Specifications

  • Conductor Type: Stranded, Solid

Material and Finish

  • Conductor Material: Copper
  • Material: Copper

Bolt and Screw Sizes

  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Torque: 825

Environment and Temperature

  • Temperature Rating: 90°C

Conductor Ranges

  • Conductor Range for Equal Run & Tap Str: 500 kcmil - 250 kcmil
  • Conductor Range for Minimum Tap with Maximum Run: 8 Sol
  • Max Conductor Copperweld - Str: 19 No. 6
  • Rebar Size(s) Main: #6 (3/4)

Color

  • Color: Copper

Voltage

  • Voltage Rating: 35 kV

Testing Standards

  • CSA File Number: LR-701570
  • CSA Standard: C22.2 No. 188, C22.2 No. 65
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • UL Control Number: 460C
  • UL / CULUS Specification: UL 486A/B Listed, UL 467 Listed
  • UL File Number: E6207

General

  • Bag Quantity: 1
  • Carton Quantity Description: STD PACK QTY 1
  • Direct Burial: Yes
  • Dual Rated: No
  • NEMA Code: S-588-4
  • UPC Code: 78366947022
  • pdfSpec Sheet https://media.distributordatasolutions.com/web_ilsco_v2/2021q4/documents/15ad2248341cf55c30495a709ffd52e83755ff0b.pdf
