GFSW1-I LEVITON
Send Print
  1. pin-int

LEVGFSW1i

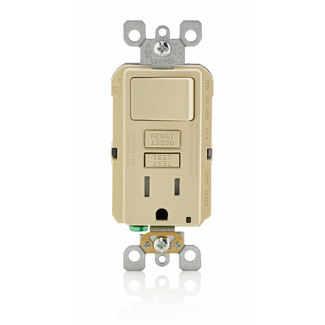

LEV GFSW1-I TR GFCI/SWITCH COMBO

  • Manufacturers: Leviton
  • Brand Name: LEVITON
  • BPN: LEVGFSW1i
  • MPN: GFSW1-I
  • UPC:078477714744
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

SmartlockPro Slim GFCI Combination Switch. Tamper-Resistant Receptacle with LED Indicator. 15 Amp, 125 Volt. Switch 1800 Watts, 120V AC. Monochromatic, Back and Side Wired, Wallplate/Faceplate Sold Separately, Self-Grounding Clip Included - Ivory

Amperage Rating      :      15 Amp
Amperage      :      15 Amp
Application      :      Commercial use
Body Material      :      Polycarbonate
Brand Name      :      Leviton
Certifications      :      CSA,CSA
Color/Finish      :      Ivory
Color      :      Ivory
Country of Origin      :      China
Dielectric      :      1250 V
Face Material      :      Thermoplastic
Grade      :      Commercial,Residential
Item Name      :      Combination GFCI Receptacle and Switch
Material      :      Polycarbonate
NEMA Configuration      :      5-15R
NEMA Rating      :      5-15R
NEMA      :      5-15R
Number of Poles      :      2 Pole
Number of Wires      :      3 Wire
Operating Temperature      :      -35 degrees C
Short Circuit Current      :      10 kA
Standards      :      UL Listed, CSA Certified
Standard      :      CSA,UL
Sub Brand      :      Smart-Lock Pro
Temperature Rating      :      -35 to 66 °C
Temperature Rise      :      150%
Termination Type      :      Back Wire,Side Wire
Torque      :      14 lb-in
Trade Slang      :      078477714744, gfi, gfci, receptacle, switch, outlet, toggle, combination, LEVGFSW1I, Leviton, GFSW1-I, Combination Switch/GFCI Outlets, Combination GFCI Devices, GFCI & AFCI Wiring Devices, Wiring Devices
Type      :      Tamper-Resistant
Voltage Rating      :      125 Volt
Voltage      :      125 Volt
Warranty Length      :      2 yr

Features

  • Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
  • Single receptacle GFCI with switch saves space and adds convenience.
  • Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
  • On initial power up, tests the GFCI within 3 seconds
  • Auto-monitoring exceeds the UL requirement
  • Auto adapts and shifts to more frequent testing if potential problem is detected
  • Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
  • Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Electronics are designed to minimize any false triggers
  • Reduced depth makes it easier to install in any electrical box, even shallow ones.
  • Terminals allow for easy wiring options – back and side wire capable.
  • External back wire clamps provide visual indication of proper wire seating.
  • Withstands high torque and resists wire pullout.
  • Standard brass self-grounding clip.
  • Trip threshold meets or exceeds UL requirements for tripping time.
  • Improved immunity to high-frequency noise reduces nuisance tripping.
  • Advanced electronics design provides superior resistance to electrical surges and over-voltages.
  • Compatible with all Decora devices and wallplates; available in select Decora colors.

Color Variations

  • Ivory
  • Light Almond
  • White

Specifications

  • Country of Origin: China
  • pdfSpec Sheet https://ideadigitalasset.com/DAMRoot/Original/10844/10962_TCHVWUKOSN4B6AXR.pdf
  • pdfInstallation / Instruction Manual https://media.distributordatasolutions.com/csv_leviton/2023q2/documents/7df2a160e683fd7951f6ee1025f48a1ac6598644.pdf
