DH362NRK EATON
Send Print
  1. pin-int

CHDDH362NRK

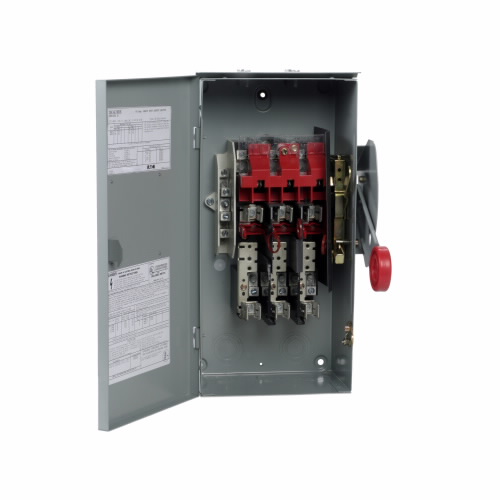

Eaton DH362NRK Heavy Duty Safety Switch

  • Manufacturers: Eaton (Group)
  • Brand Name: EATON
  • BPN: CHDDH362NRK
  • MPN: DH362NRK
  • UPC:782113206059
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton Enhanced visible blade single-throw safety switch, 60 A, NEMA 3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al

Amperage Rating      :      60 Amp
Amperage      :      60 Amp
Application      :      Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Brand Name      :      Eaton
Dimensions      :      16.5000 IN X 9.2500 IN X 8.2500 IN
Enclosure Material      :      Steel
Enclosure Standard      :      3R
Height      :      8-1/4 Inch
Length      :      16-1/2 Inch
Material      :      Steel
NEMA Size      :      3R
NEMA      :      3R
Number of Poles      :      3 Pole
Number of Wires      :      4 Wire
Standards      :      UL Listed

Specifications

  • Product Category: Heavy Duty, Fusible with neutral
  • Enclosure material: Painted galvanized steel
  • Fuse class provision: Class H
  • Type: Heavy duty fusible safety switch
  • HP rating - max: 20, 25/ 30, 50 hp (1/3PH @480, 600 V)
  • Fuse configuration: Fusible with neutral
  • Number of wires: 4
  • Enclosure: NEMA 3R
  • Voltage rating: 600 V
  • Amperage Rating: 60A
  • Number Of Poles: Three-pole

General

  • UPC: 782113206059
  • Product Length/Depth: 16.5 in
  • Product Height: 8.25 in
  • Product Width: 9.25 in
  • Product Weight: 20 lb
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Certifications: UL Listed
  • pdfSpec Sheet https://media.distributordatasolutions.com/csv_eaton/2021q3/documents/7724bedd80157e3429477ceaaa65f03105ccf448.pdf
