Wiremold 880MP 5-1/2 x 4-1/8 x 6" 100 In? 1-Gang Non-Metallic Rectangular Floor Box

  • Manufacturers: Legrand
  • Brand Name: Wiremold
  • BPN: WIR880MP
  • MPN: 880MP
  • UPC:786564524304
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

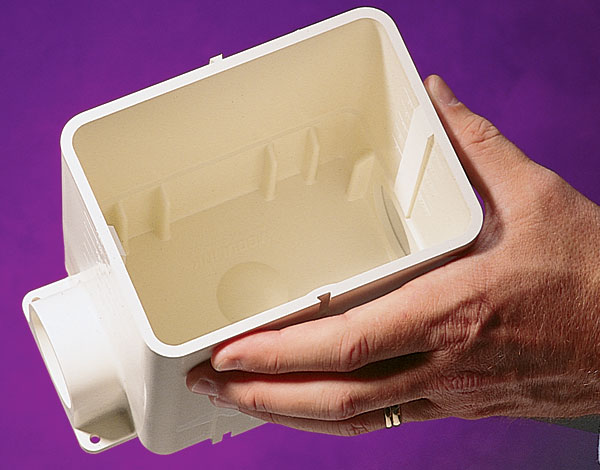

The Modulink™ nonmetallic floor box provides power and communication services directly to the workstation or to any open space location. The Modulink™ Floor Box is a gangable box that allows a one-gang floor box to easily be turned into a two- or three-gang box simply by ganging together individual boxes. This floor box has many applications, some of which are commercial offices, retail stores, malls, financial and government institutions.

Application      :      Commercial, Office
Brand Name      :      Wiremold
Buy American Compliant      :      Yes
Cable Entry      :      Conduit Opening
Certifications      :      CULUS,NAFTA,ROHS
Color      :      Black
Construction      :      Not Assembled
Country of Origin      :      USA
Cubic Capacity      :      50 - 100 in³
Depth      :      152 mm
Height      :      6-1/4 Inch
Item Name      :      Floor Box
Length      :      6 Inch
Material      :      Plastic
Mounting Type      :      In Concrete
Mounting      :      In Concrete
Number of Gangs      :      1 Gang
Number of Outlets      :      0
Product Series      :      Modulink 880MP
Series/Model      :      880MP
Size      :      6"x4 1/8"x5 1/2"
Standards      :      cULus Listed, UL File Number E110748, Meets Article 314.27(C) of NEC.
Sub Brand      :      Wiremold
Trade Slang      :      786564524304, 880, nonmetallic, concrete, WMD880MP, Wiremold, 880MP, Floor Boxes - Square, Floor Boxes, Boxes - Recessed, Boxes, Enclosures
Type      :      Rectangular
Volume      :      183.69 cu in



  • NAFTA Compliant
  • cULus Listed
  • RoHS Compliant
  • TopGuard protection. Activation covers for the 880MP PVC box are TopGuard protected. These cover assemblies keep out water, dirt, and debris from the power and communication compartments."
  • Multiple service capability. Eliminates the cost of a separate floor box and cover to accommodate communication service.
  • Depth markings on exterior of the box. Makes floor box depth calculations quick and easy. Reduces installation time and labor costs.
  • 1 1/4'' [32mm] conduit openings. Provides the largest conduit feed in the industry. Meets customer requirements for greater communication cable capacity.
  • Ratchet adjusting ring. Allows connection of cover flange without glue or mechanical fasteners. Reduces installation time and cost by providing 10° of post-pour adjustment of the cover flange.
  • Conduit reducers and plugs provided. Allows direct reduction from 1 1/4'' [32mm] conduit to 1'' [25mm], 3/4'' [19.1mm] or 1/2'' [12.7mm] conduit. Reduces installation time by providing direct reduction and separate plugs by eliminating the need to cut out plugs to form reducers."
  • Cubic inch markings on the interior of the box. No need to calculate cubic inch capacity for wire fill, saving installation time."
  • Ratchet adjusting ring has built-in fiber storage. Provides bend radius control for fiber optic cables.
  • Pass-through capability. Can feed multiple gangs from a single cable feed location. Reduces total installation time.
  • Modular design and gangability. One SKU to order boxes with the ability to configure boxes as needed on the job site.
  • Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A, 514C, 514D, and Canadian standard C22.2."
  • Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use. A wide selection of data and bezel options available for use with Ortronics ® TracJack ™ and Series II devices."
  • Internal spacer. Protects box from deformation of the sidewalls when high temperature additives are used in the concrete pour.
  • Redesigned mudcap. High impact mudcap protects the box from damage when heavy equipment such as scissor lift trucks come in contact with the box during installation.


  • Color: Black
  • Product Line: Wiremold
  • Product Volume: 183.69


  • Depth: 7.13 in
  • Height: 6.25 in
  • Special Features: Depth markings on exterior of the box. 2 inch conduit opening. Ratchet adjusting ring. Cubic inch markings on the interior of the box. Pass-through capability. Gangable.
  • Type: Floor Box
  • Weight: 2.27 lb
  • Width: 4.13 in
  • Number of Outlets: 0.0
  • Construction: Not Assembled
  • Country of Origin: United States
  • Cubic Capacity: 100.0 cu in
  • Application Sector: Commercial
  • Cable Entry: Knockouts & Conduit Hubs in
  • Standard: cULus Listed Nonmetallic Outlet Boxes: File E110748 Guide QCMZ.
