GUS4-50NW/D10
RAB
https://www.billows.com/3368417/product/RABGUS450NWD10
https://www.billows.com/3368417/product/RABGUS450NWD10
RABGUS450NWD10
RAB GUS4-50NW/D10 Dimmable General Purpose Wraparound Fixture With 0 to 10 VDC Dimming Driver,) LED Lamp, 50 W Fixture, 120 to 277 VAC, White Housing
- Manufacturers: RAB Lighting
- Brand Name: RAB
- BPN: RABGUS450NWD10
- MPN: GUS4-50NW/D10
- UPC:019813424224
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
RAB Wraparound Fixture, Dimmable General Purpose, Series: GUS, 120 to 277 VAC, 50 W Fixture, 0.2 to 0.43 A, LED Lamp, 50 W Lamp, 109 Lumens/W Light Output, 100000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 84 CRI, Class 2/Constant Current Ballast, Acrylic Lens, 5456 Lumens, Surface Mounting, Cold Rolled Steel Housing Material, White Housing Finish, 4 ft L x 9-3/4 in W x 2-15/16 in H Dimensions
| Amperage Rating | : | 0.2 to 0.43 A |
| Average Life | : | 100000 hr |
| Ballast Type | : | Class 2/Constant Current |
| Color Rendering Index (CRI) | : | 84 |
| Color Temperature | : | 4000 K |
| Dimensions | : | 4 ft L x 9-3/4 in W x 2-15/16 in H |
| Fixture Wattage | : | 50 W |
| Housing Finish | : | White |
| Housing Material | : | Cold Rolled Steel |
| Lamp Type | : | LED |
| Lamp Wattage | : | 50 W |
| Lens Type | : | Acrylic |
| Light Color | : | Neutral White |
| Light Output | : | 109 Lumens/W |
| Lumens | : | 5456 Lumens |
| Mounting Type | : | Surface |
| Series | : | GUS |
| Type | : | Dimmable General Purpose |
| Voltage Rating | : | 120 to 277 VAC |
- Energy efficient, maintenance-free LED wrap fixture
- Surface, pendant or chain multiple mounting options
- High reflectance white finish for optimal output
- Diffusion wrap around lens for smooth light distribution
- Formulated for high durability and long-lasting color
- Long life, high efficacy
- 0.43 A at 120 VAC, 0.27 A at 208 VAC, 0.23 A at 240 VAC and 0.2 A at 277 VAC amperage ratings
Instruction/Installation Manual

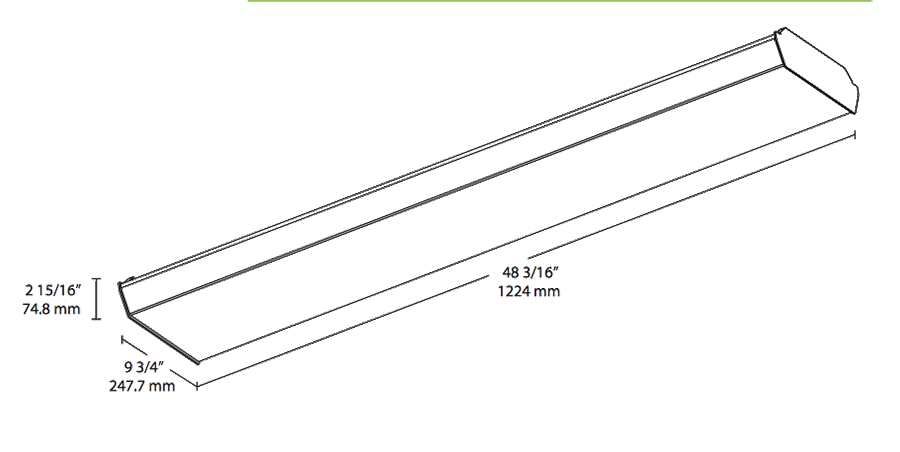

Line Drawing
