PBT-250
Ilsco
https://www.billows.com/3370275/product/ILSPBT250
https://www.billows.com/3370275/product/ILSPBT250
ILSPBT250

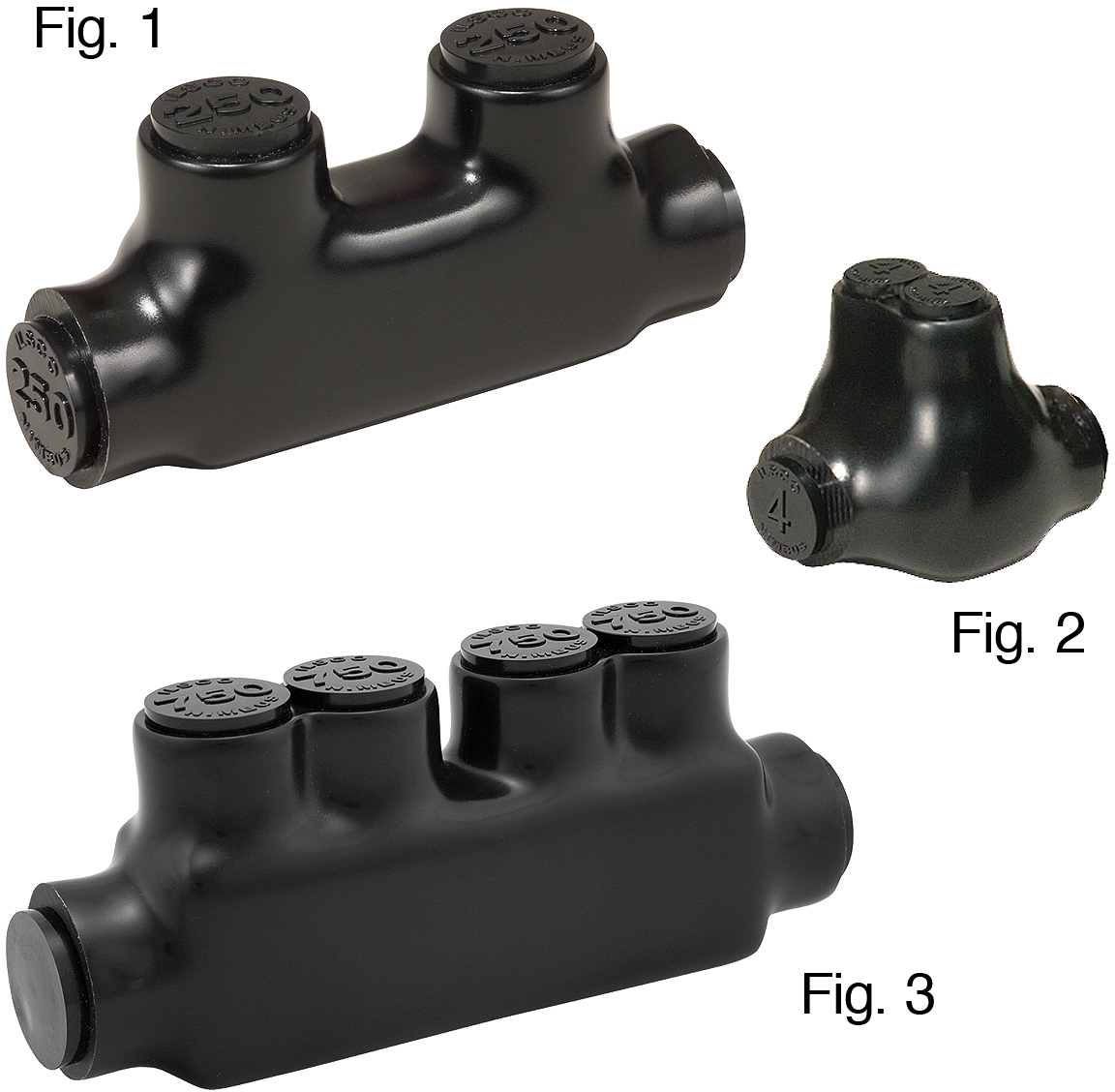

Ilsco PBT-250 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 250-6, 2 Ports, Tin Plated, UL, CSA
- Manufacturers: ILSCO
- Brand Name: Ilsco
- BPN: ILSPBT250
- MPN: PBT-250
- UPC:783669077025
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Nimbus Insulated in-line splicer-reducer connectors, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, Contains DE-OX®, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,
| Amperage Rating | : | 290 Amp |
| Amperage | : | 290 Amp |
| Application | : | Insulated in-line splicer-reducer connectors |
| Brand Name | : | Ilsco |
| Carton Qty | : | 4 |
| Color | : | Black |
| Conductor Material | : | Aluminum,Copper |
| Conductor Range | : | AL Solid (Primary, run, main, line):NA;CU Solid (Primary, run, main, line):NA;CU Stranded (Primary, run, main, line):250 kcmil - 6 Str;AL Stranded (Primary, run, main, line):250 kcmil - 6 Str |
| Conductor Type | : | Stranded |
| Connection Type | : | Mechanical |
| Connection | : | Mechanical |
| Environmental Conditions | : | Cold temperature rated to -45°C |
| Finish | : | Tin Plated |
| Height | : | 2.041 Inch |
| Insulation | : | Plastisol |
| Length | : | 3.88 Inch |
| Material | : | Aluminum |
| Number of Conductors | : | 2 |
| Number of Ports | : | 2 |
| Standards | : | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed |
| Sub Brand | : | Nimbus |
| Temperature Rating | : | 90 degrees C |
| Trade Slang | : | 783669077025, PBT, Nimbus, In-Line Splice, Inline Reducer, ILSPBT250, Ilsco, PBT-250, 2-Wire & In-Line Splicers/Reducers, Connector Blocks - Insulated, Distribution & Terminal Blocks, Connectors, Crimps, Termination |
| Type | : | PBT:INS BLK SPL/OFFSET |
| Voltage Rating | : | 600 Volt |
| Voltage | : | 600 Volt |
Specifications
- Height: 2.041 in | 51.8414 mm
- Length: 3.88 in | 98.552 mm
- Weight: 0.559 lbs
- Width: 1.187 in | 30.1498 mm
Additional Class Attributes
- Connection: Mechanical
- Contains DE-OX®: Yes
- Number of Conductors: 2
- Number of Poles: 1
- Number of Ports / Wireways: 2
- Number of Usable Ports: 2
- Replacement Part(s): PORTPLUG-250, SCREWCAP-250
Dimensions
- Drive Size Main: 5/16
- Drive Type Main: Internal Hex
- Height BX (IN): 2.75
- Height (mm): 51.8414
- Length (mm): 98.552
- Max Insulation OD (IN): 0.75
- Max Insulation OD (mm): 19.05
- Weight BX (LB): 2.24
- Width BX (IN): 5
- Width (mm): 30.1498
Additional Technical Specifications
- Conductor Type: Stranded
Material and Finish
- Conductor Material: Copper, Aluminum
- Connector Finish: Tin
- Insulation: Plastisol
- Material: Aluminum
- Wire Binding Hardware Finish: Tin
- Wire Binding Hardware Material: Aluminum
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port: 1
- Wire Binding Screw Size: 5/8
- Wire Binding Torque: 275
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line): 250 kcmil - 6 Str
- Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 6 Str
Voltage
- Voltage Rating: 600 V
Color
- Cap Color Main: Black
- Cap Color Tap: Black
- Color: Black
Testing Standards
- CSA File Number: LR-29601
- CSA Standard: C22.2 No. 65-03
- Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number: 453G
- UL / CULUS Specification: UL 486A/B Listed
- UL File Number: E6207
General
- Bag Quantity: 1
- Carton Quantity Description: STD PACK QTY 4
- Dual Rated: Yes
- NEMA Code: S-588-4
- UPC Code: 78366907702
Environment and Temperature
- Environmental Conditions: Cold temperature rated to -45°C
- Flammability Rating: Insulation rated per UL 94
- Temperature Rating: 90°C
