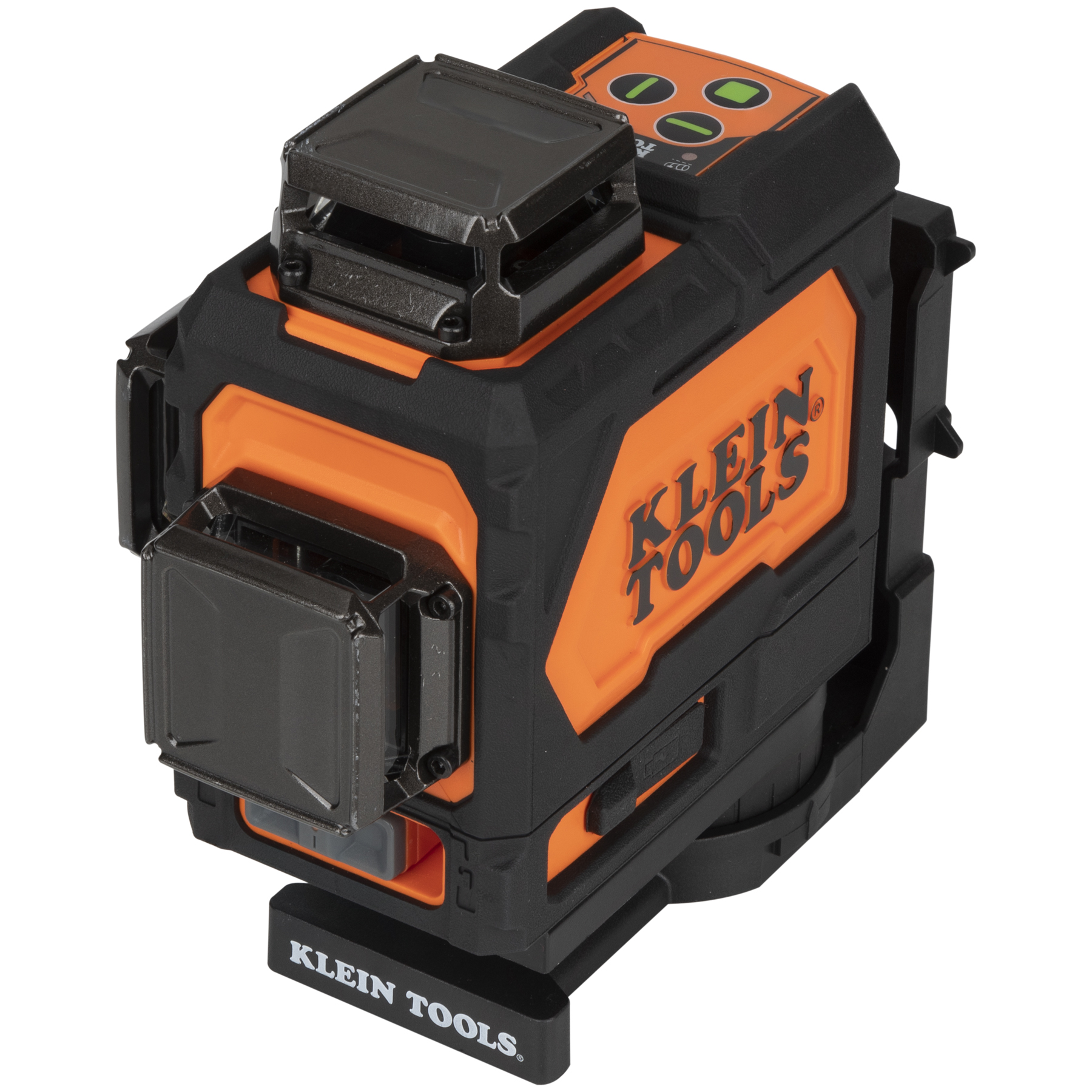

Klein 93PLL Rechargeable Self-Leveling Green Planar Laser Level

  • Manufacturers: Klein Tools
  • Brand Name: Klein Tools, Inc.
  • BPN: KLE93PLL
  • MPN: 93PLL
  • UPC:092644692789
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

The Klein Tools’ Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 510-530nm).

Accuracy      :      +/- 4.5 mm
Application      :      Self-Leveling Laser Alignment Instrument
Battery Life      :      9 hr
Brand Name      :      Klein Tools, Inc.
Country of Origin      :      China
Depth      :      5-1/2 Inch
Height      :      3-1/2 Inch
Includes      :      Lithium-Ion Battery, USB-A to USB-C Cable, Magnetic Mounting Bracket, and Hard Carrying Case
Item Name      :      Planar Laser Level
Length      :      5-1/2 Inch
Material      :      ABS,Electrical Components
Maximum Distance      :      91' (28 m)
Measuring Range      :      91 ft
Number of Batteries      :      1
Number of Beams      :      3
Overall Height      :      3.5" (1.4 cm)
Overall Length      :      5.5 in
Overall Width      :      4.8" (1.9 cm)
Power Source      :      Lithium-Ion
Receiver      :      No
Standards      :      EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11
Trade Slang      :      092644692789, laser level, laser, magnetic laser, KLE93PLL, Klein, 93PLL, Laser Levels & Tools, Levels & Measuring, Hand Tools, Tools, Testing, Meters
Type      :      Rechargeable, Self-Leveling

Features

  • Rechargeable Self-Leveling Green Planar Laser Level is easy-to-read with strong green horizontal and vertical laser lines
  • Projects a line independently or together in X-, Y-, and Z-planes to align stud, concrete, tiles, conduit, and more
  • Find Plumb spots much quicker than a traditional string bob by using the intersection of the Y and Z planes
  • More than 9 hour run time with integrated rechargeable Li-Ion powered battery
  • This product is classified as a Class II laser product according to IEC/EN 60825-1 -2014, (Power ≤1mW @ 510-530nm)
  • Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads
  • Strong and rugged body provides IP54 water and dust resistance; hard plastic carrying case included
  • Includes Li-Ion battery pack, USB-A to USB-C charging cable, magnetic mounting bracket, drop-resistant hard carrying case, and instructions
  • Rechargeable Battery, Magnetic Mounting Bracket with 1/4-20 Tripod Mounting Threads; 3 Orthogonal 360° Planar Lines

Warnings

  • Exposing eyes to laser radiation can result in severe and permanent eye injuries.
  • Do not use the instrument if it appears to be damaged.
  • Do not modify the instrument in any way, as to do so could result in emission of hazardous laser radiation than could result in severe eye injuries.
  • See instruction manual for additional warnings.

Specifications

  • Accuracy: +/-3/16" per 33' (+/-4.7 mm per 10 m)
  • Bag or Case: Hard Carrying Case
  • Application: Self-Leveling Laser Alignment Instrument
  • Plumb Laser: No
  • Number of Beams: 3
  • Overall Length: 5.5" (2.2 cm)
  • Material: ABS Housing and Electronic Components
  • Outdoor Range: 91' (28 m)
  • Type: Self-Leveling Laser Level
  • Included: Laser Level; Lithium-Ion Battery; USB-A to USB-C Cable; Magnetic Mounting Bracket; and Hard Carrying Case
  • Overall Width: 4.8" (1.9 cm)
  • Pulse Mode: No
  • Transit Locking Mechanism: Yes
  • Overall Height: 3.5" (1.4 cm)
  • Receiver: No
  • Ingress Protection: IP54 - Water and Dust Resistant
  • Weight: 1.4 lb (0.6 kg)
  • Magnet Type: Rare Earth Magnets
  • Laser Safety: ≤1mW Each Beam, Class 2 Laser Product
  • Indoor Range: 91' (28 m)
  • Standard: EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
  • Laser Wavelength: 510-530 nm
  • Maximum Distance: 91' (28 m)
  • Batteries: Lithium-Ion
  • Low Battery Indicator: Yes
  • Laser Color: Green
  • Battery Life: 9 hr
  • Replacement Parts: 29026
  • Accessories: 69345
  • Item Height: 4.7400 in
  • Item Width: 3.4900 in
  • Item Depth: 5.5000 in
  • Item Weight: 1.8900 lbs
  • pdfSpec Sheet https://media.distributordatasolutions.com/xlsx-klein/2023q3/documents/6642b0b50f338d3e3196cc3ba395b7b1ae64cc43.pdf
  • pdfInstallation / Instruction Manual https://ideadigitalasset.com/DAMRoot/Original/11838/11509_MJX5RLUPF89EC7HY.pdf
