GN4LED13NAC11B
RAB Design Lighting
https://www.billows.com/3388696/product/RABGN4LED13NAC11B
https://www.billows.com/3388696/product/RABGN4LED13NAC11B
RABGN4LED13NAC11B
RAB GN4LED13NAC11B GOOSEWALL 20" H
- Manufacturers: Rab Design Lighting
- Brand Name: RAB Design Lighting
- BPN: RABGN4LED13NAC11B
- MPN: GN4LED13NAC11B
- UPC:019813037950
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term

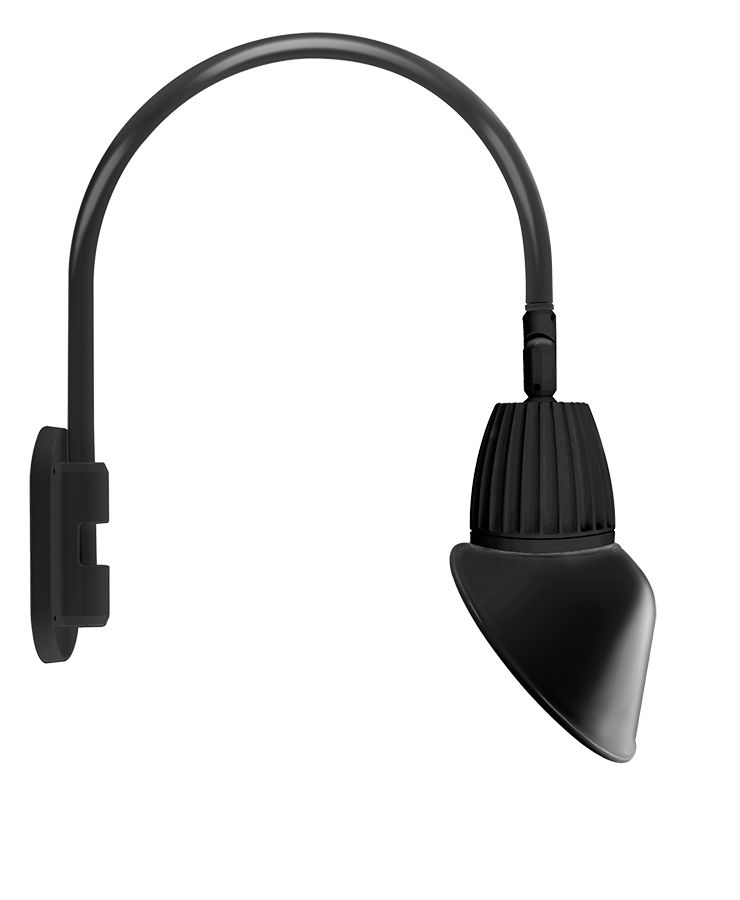

Decorative 388 Lumens Gooseneck 13W 4000K 20 Inches High & 19 Inches From The Wall Angled Cone Flood 11 Inches Black
| Amperage Rating | : | 150m/300m Amp |
| Amperage | : | 0.15 Amp |
| Application | : | LED Gooseneck |
| Average Life | : | 100000 Hrs |
| Average Rated Life | : | 100,000 hr |
| Brand Name | : | Rab Design Lighting |
| Buy American Compliant | : | Y |
| Color Accuracy | : | 86 |
| Color Rendering Index (CRI) | : | 86 |
| Color Rendering Index | : | 86 |
| Color Temperature | : | 4000 K |
| Color | : | 4000K (4000K Neutral) |
| Correlated Color Temp | : | 4,000 K |
| Efficacy | : | 25 LPW |
| Input Wattage | : | 15 W |
| Lamp Type | : | LED |
| Lumens | : | 388 Lumen |
| Minimum Starting Temperature | : | -40 degrees C |
| Mounting | : | Ceiling |
| Type | : | Constant Current |
| Voltage Rating | : | 120/277 Volt |
| Voltage | : | 120-277 Volt |
| Wattage | : | 13 Watt |
Features
- Adjustable 45° swivel joint
- Superior heat sink
- Die-cast aluminum housing
- 5-Year, No-Compromise Warranty
- Patents
- Warranty
- Equivalency
- Buy American Act Compliance
Specifications
- Weight: 16.0 lbs
Compliance
- UL Listed: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
- IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
- Watts: 13W
- Color Temp: 4000K (Neutral)
- Lumens: 388 lm
- Efficacy: 25 lm/W
- Color Accuracy: 86 CRI
- Type: Constant Current
- 120V: 0.3A
- 208V: 0.3A
- 240V: 0.3A
- 277V: 0.15A
- Input Watts: 15W
LED Characteristics
- LED: Single multi-chip, 13W high-output, long-life LED
- Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
- Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
- Fixture: The GN4LED13NAC11B comes with the GOOSE4B arm
- Housing: Precision die-cast aluminum housing, lens frame and mounting plate
- Gaskets: High-temperature Silicone
- Mounting: Heavy-duty mounting arm with "O" ring seal and stainless steel screw
- Cold Weather Starting: The minimum starting temperature is -40°C (-40°F)
- Shades: 11" Angled Cone Shade offered
- Finish: Formulated for high durability and long-lasting color
- Green Technology: Mercury and UV free. RoHS-compliant components.
Electrical
- Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 100-240VAC 0.3 - 0.15A, 277VAC 0.15A, THD ≤20%, PF 97.5%.
- Surge Protection: 4kV
