AL3316 Legrand
Legrand AL3316 WIRAL3316
Send Print
  1. pin-int

WIRAL3316

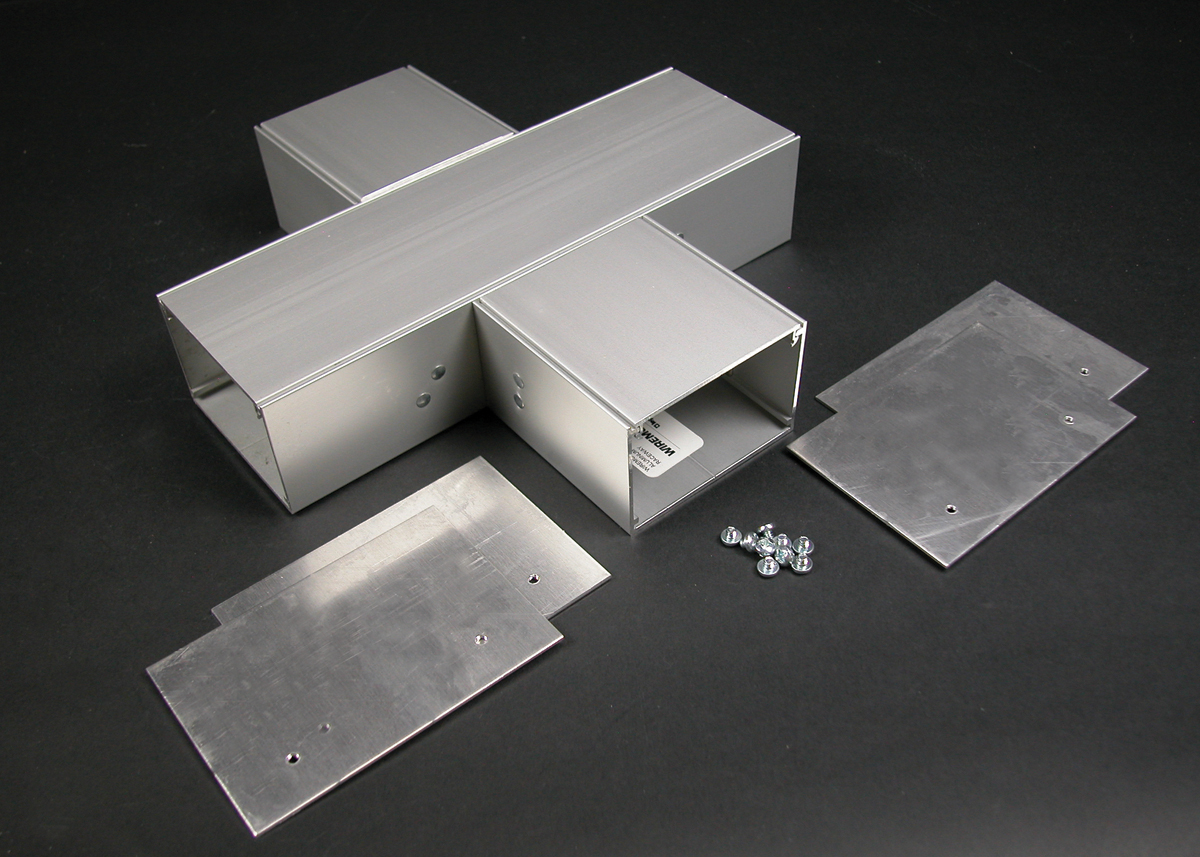

Wiremold AL3316 AL3300-Series Cross Fitting

  • Manufacturers: Legrand
  • Brand Name: Legrand
  • BPN: WIRAL3316
  • MPN: AL3316
  • UPC:786776105117
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

AL3300 Series Aluminum Raceway System meets the demands of today’s commercial spaces, providing a compact, handsome and effective method of consolidating all power and communication cabling. In laboratories, healthcare facilities and upscale office locations, the divided aluminum raceway separates power and communication cabling and directs these services where required. The low-profile design can be installed as baseboard, surface mounted, or under laboratory reagent shelves. The two-piece raceway design means wiring is always accessible and changes are easily accomplished at any time.

Application      :      Commercial
Brand Name      :      Legrand
Capacity      :      Single-Channel
Certifications      :      CULUS,NAFTA,ROHS
Country of Origin      :      Mexico
Jacket Color      :      Satin Anodized
Length      :      9 Inch
Material      :      Aluminum
Outside Diameter      :      2.9375 in
Product Series      :      AL3300
Standards      :      cULus Listed Raceway: File E4376 Guide RJPR. Fittings: File E41751 Guide RJPR. Raceway & Fittings: Meet Article 386 of NEC. Multioutlet Assemblies: Meet Article 380 of NEC.
Sub Brand      :      Wiremold
Type      :      Raceway
Voltage Rating      :      600 Volt
Voltage      :      600 Volt

Features

Certifications

  • NAFTA Compliant
  • cULus Listed
  • RoHS Compliant
  • 90 degree cross-through connection of two runs of raceway. Four AL3001 Couplings included.

Specifications

  • Country of Origin: Mexico
  • Standard: cULus Listed Raceway: File E4376 Guide RJPR. Fittings: File E41751 Guide RJPR. Raceway & Fittings: Meet Article 386 of NEC. Multioutlet Assemblies: Meet Article 380 of NEC.
  • Special Features: Compact size, application flexibility. Useful for locations requiring limited space. Satin anodized finish, good-looking appearance, resists corrosion and is easy to clean and maintain.
  • Type: Raceway
  • Voltage: 600.0 V
  • Application Sector: Commercial

Specifications

  • Product Line: Wiremold
