AL5216 Legrand
Legrand AL5216 WIRAL5216
Send Print
  1. pin-int

WIRAL5216

Wiremold AL5216 AL5200-Series Large Multi-Channel Raceway Cross Fitting

  • Manufacturers: Legrand
  • Brand Name: Legrand
  • BPN: WIRAL5216
  • MPN: AL5216
  • UPC:786776046847
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

AL5200 Series ™ Aluminum Raceway is sleek, clean and attractive. Integrated into casework or lab furniture, or installed as baseboard, these raceways can be used to distribute communication and power wiring while maintaining aesthetics. The satin anodized finish is designed for both good looks and easy service. The “hi-tech” appearance makes this raceway an attractive choice for contemporary spaces. This aluminum raceway system also compliments the decor of commercial offices, laboratories, and healthcare facilities.

Application      :      Commercial
Brand Name      :      Legrand
Capacity      :      Dual-Channel
Certifications      :      CULUS,NAFTA,ROHS
Country of Origin      :      Mexico
Jacket Color      :      Satin Anodized
Length      :      9 Inch
Material      :      Aluminum
Outside Diameter      :      15 in
Product Series      :      AL5200
Standards      :      cULus Listed Raceway: File E4376 Guide RJPR. Fittings: File E41751 Guide RJPR. Raceway & Fittings: Meet Article 386 of NEC. Multioutlet Assemblies: Meet Article 380 of NEC.
Sub Brand      :      Wiremold
Trade Slang      :      786776046847, AL5200, WMDAL5216, Wiremold, AL5216, 2-Piece Large Raceway - Clips/Connectors/Couplings, 2-Piece Large Raceway & Accessories, Raceway - Metallic, Conduit, Ducts, Raceways
Type      :      Raceway
Voltage Rating      :      600 Volt
Voltage      :      600 Volt

Features

Certifications

  • NAFTA Compliant
  • cULus Listed
  • RoHS Compliant

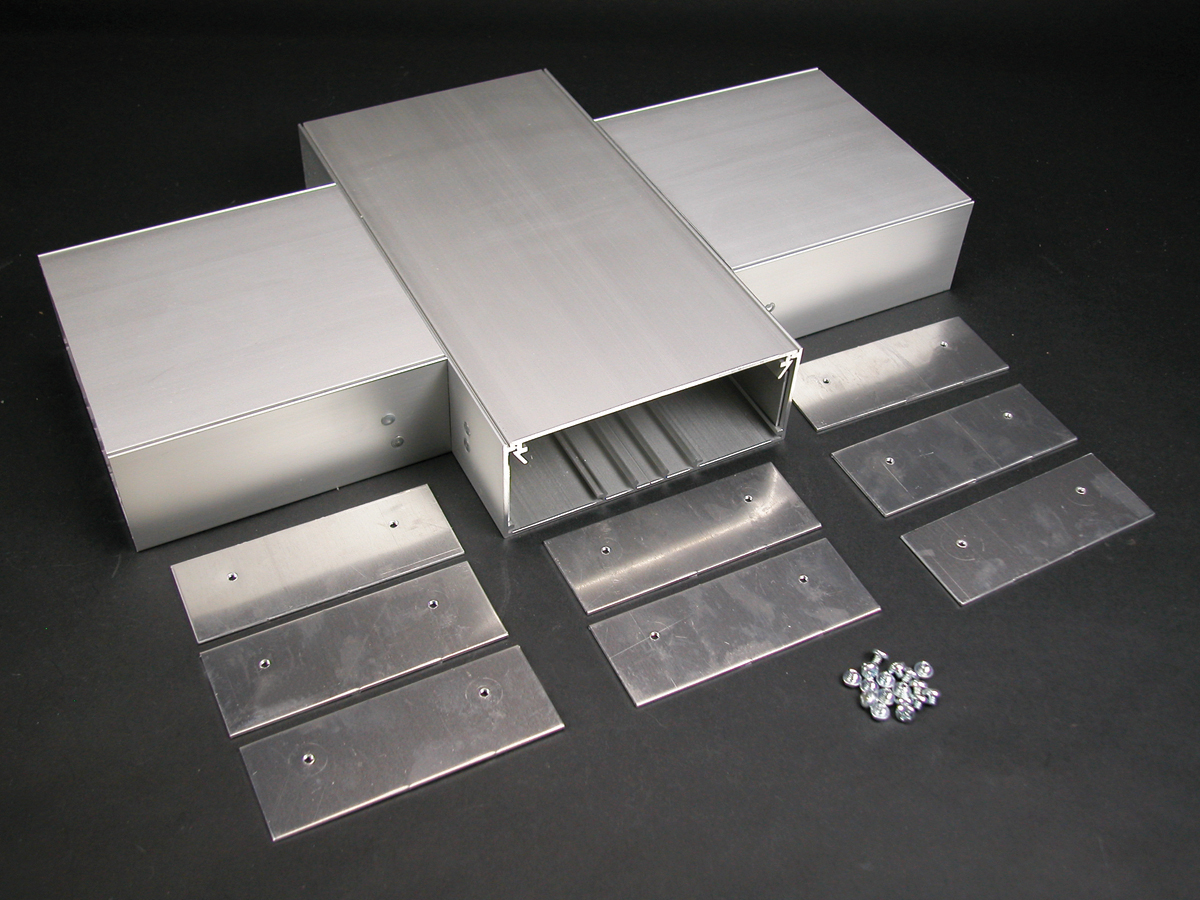

  • Cross throuhgh connection in a raceway run. Includes four pairs of AL5201 Couplings.

Specifications

  • Product Line: Wiremold

Specifications

  • Country of Origin: Mexico
  • Standard: cULus Listed Raceway: File E4376 Guide RJPR. Fittings: File E41751 Guide RJPR. Raceway & Fittings: Meet Article 386 of NEC. Multioutlet Assemblies: Meet Article 380 of NEC.
  • Type: Raceway
  • Voltage: 600.0 V
  • Application Sector: Commercial
  • Special Features: Satin anodized finish. Good-looking appearance, resists corrosion and is easy to clean and maintain. Numerous raceway channel configurations, able to accommodate your specific cable capacity requirements. Accommodates most standard flush mounted switches and receptacles, accepts devices up to 30 amperes to meet any job requirement.
