CRFB-BEZ6A-4 Legrand
Legrand CRFB-BEZ6A-4 WIRCRFBBEZ6A4
Send Print
  1. pin-int

WIRCRFBBEZ6A4

Wiremold CRFB-BEZ6A-4 CRFB-Series Center 6A Comm Adapter

  • Manufacturers: Legrand
  • Brand Name: Legrand
  • BPN: WIRCRFBBEZ6A4
  • MPN: CRFB-BEZ6A-4
  • UPC:786564077022
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

FloorSource Series™ CRFB Series™ Floor Boxes are round recessed floor boxes designed to meet the functionality and flexibility requirements of the raised and wood floor markets. CRFB Series Floor Boxes have multiple trade size KOs located on the sides and bottom of the box to feed separate compartments that can accommodate multiple combinations of power, communication, and audio/video services. The surface style covers (sold separately) are made from cast aluminum and are available in powder coat finishes of black, brass, nickel, bronze, gray and aluminum, as well as brushed aluminum, satin brass plated and satin nickel plates finishes. CRFB Series Floor Boxes can also be field configured to accommodate power only, communication only, audio visual only, or combinations of all three services. CRFB Series Floor boxes applications include: open office environments, conference rooms, schools, stages, computer centers and altars.

Application      :      Commercial
Brand Name      :      Legrand
Buy American Compliant      :      Y
Certifications      :      CULUS,ROHS
Color      :      Black/Brass/Bronze/Gray/Silver
Construction      :      Assembled
Country of Origin      :      USA
Mounting      :      Screw On
Product Series      :      CRFB
Standards      :      UL Listed Classified Raised Floor Box: File E2961, Guide QCIT. UL Listed Classified Raised Floor Box (prewired): File E51105, Guide QQVX. Meets Article 314 of NEC. Meets Article 12-2500 of CEC.
Sub Brand      :      Wiremold
Trade Slang      :      786564077022, WMDCRFBBEZ6A4, Wiremold, CRFB-BEZ6A-4, Floor Boxes - Service Fittings, Floor Box - Accessories, Boxes - Recessed, Boxes, Enclosures
Type      :      Floor Box

Features

Certifications

  • RoHS Compliant
  • cULus Listed

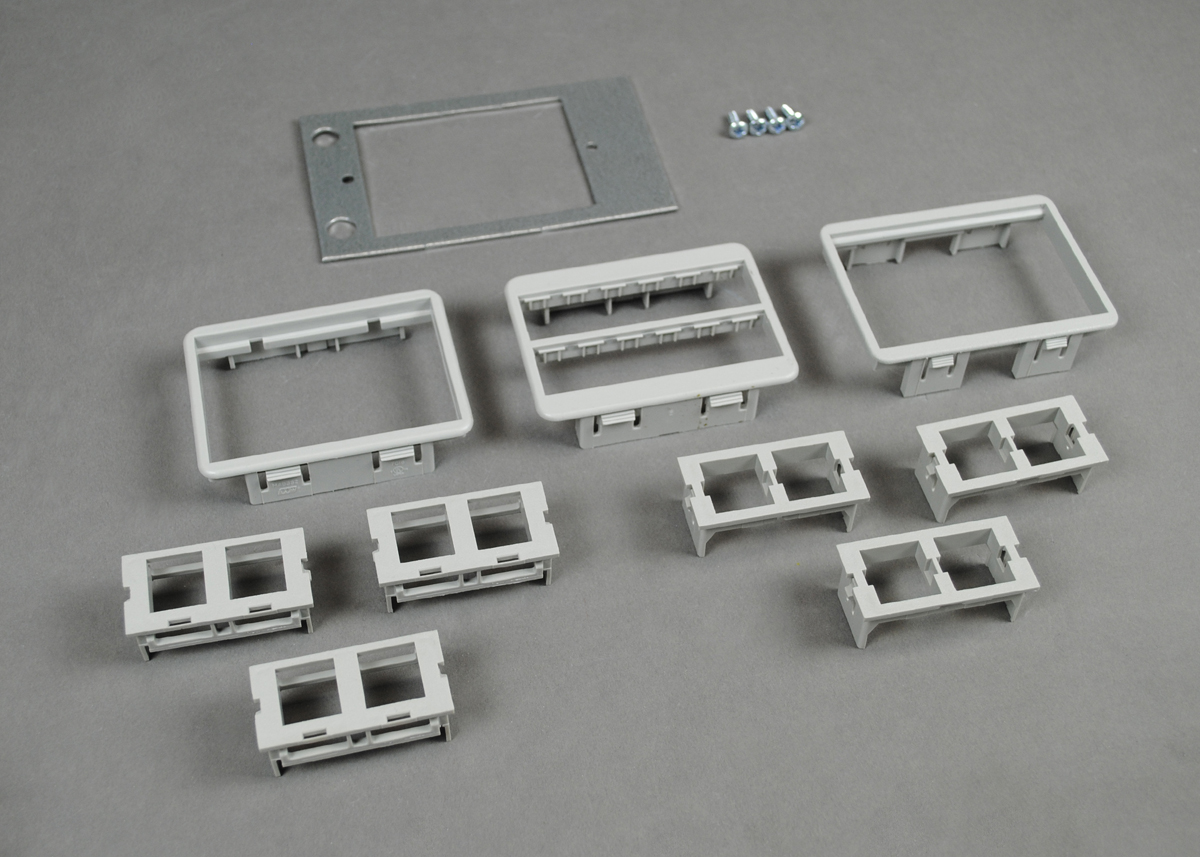

  • The CRFB4 has four compartments that accept different device plates. This 6A Communication Plate is for Plate location 4, includes: (1) 6A Wiremold Open System Adapter, (1) Ortronics Series II Adapter, (1) Ortronics TracJack Adapter. Modular jacks sold separately. NOTE: Standard size for device plates for Plate Location 4 is 5 7/32'' (132mm) x 2 3/4'' (62mm)."

Specifications

  • Country of Origin: United States
  • Special Features: Audio/video ready. CRFB Series Floor Boxes have been designed to accept a wide range of audio/video devices from most manufacturers.
  • Standard: UL Listed Classified Raised Floor Box: File E2961, Guide QCIT. UL Listed Classified Raised Floor Box (prewired): File E51105, Guide QQVX. Meets Article 314 of NEC. Meets Article 12-2500 of CEC.
  • Type: Floor Box
  • Construction: Assembled
  • Application Sector: Commercial

Specifications

  • Product Line: Wiremold
  • linkSpec Sheet https://legrand.webdamdb.com/directdownload.php?ti=55654850&tok=TI3wYLi3s15QBBcoWYgIsARR
  • linkInstallation / Instruction Manual https://legrand.webdamdb.com/directdownload.php?ti=55645653&tok=tFub0kWtq9Fsk2VdsCRQ6wRR
