Features

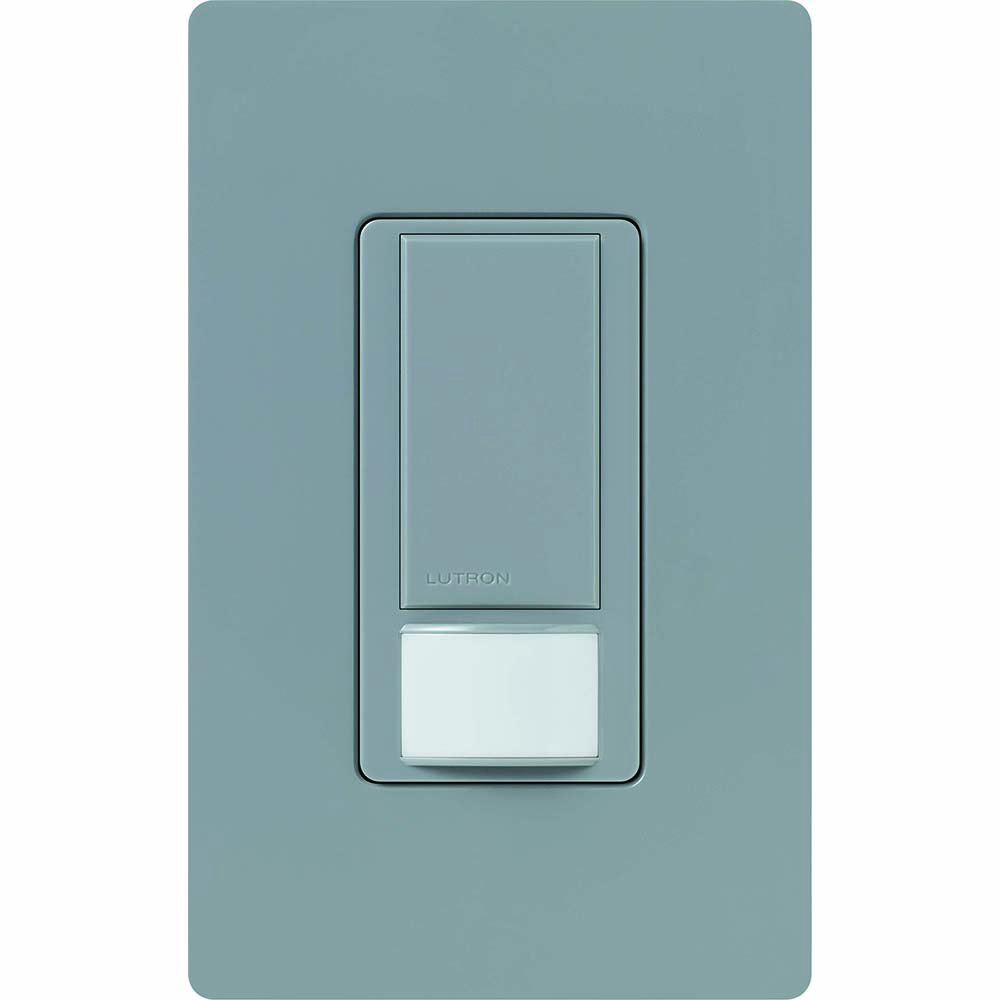

• Combines a Maestro switch with a passive infrared occupancy sensor
• Detects the heat from occupants moving within an area to determine whether the space is occupied
• Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
• Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
• 180 degree sensor field-of-view
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
• Meets CA Title 24 requirements
• Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
• Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
• Ground wire required.

Specifications

• NETXASC: Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Meets CA Title 24 requirements. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required.
• NETXCAT: Lutron Vacancy-Only Motion Sensor Switch, 2A, Single-Pole, No Neutral Required, Gray
• NETXPOL: Lutron Online Policy - PUBLIC
• NETXMKG: Coordinating Claro Wall Plate and accessories sold separately. Let Lutron's Maestro Vacancy Sensor switch automatically turn lights off for you. It's a simple, easy, and low cost way to save energy and add light automation to your home. Simply turn lights on when you enter a room, and the Maestro Vacancy Sensor will automatically turn lights off when room is vacant. With manual-on feature, the vacancy sensor is perfect for use in a bedroom or TV room so lights/fan only turn on when you want them to. Install it in the kids' rooms and never worry about lights being left on by mistake. Keeping the sleek design of the Maestro family, Lutron sensors will match the decor of any room in your home. Maestro Sensors work with any bulb type, including CFLs and LEDs.
• NETXMB1: Coordinating Claro Wall Plate and accessories sold separately
• NETXMB2: Automatically turns lights off when room is unoccupied
• NETXMB3: Uses Advanced XCT sensing technology, offering the most reliable on/off performance up to 30 ft.
• NETXMB4: Works with all bulb types
• NETXMB5: Meets California Title 24 and other sensor code requirements
• NETXMB6: Requires ground wire
• NETXMB7: Great for bedrooms, kid rooms and rooms with pets
• NETXMB8: Simple, easy and low cost way to bring light automation to your home
• NETXMB9: Sleek design of Maestro controls
