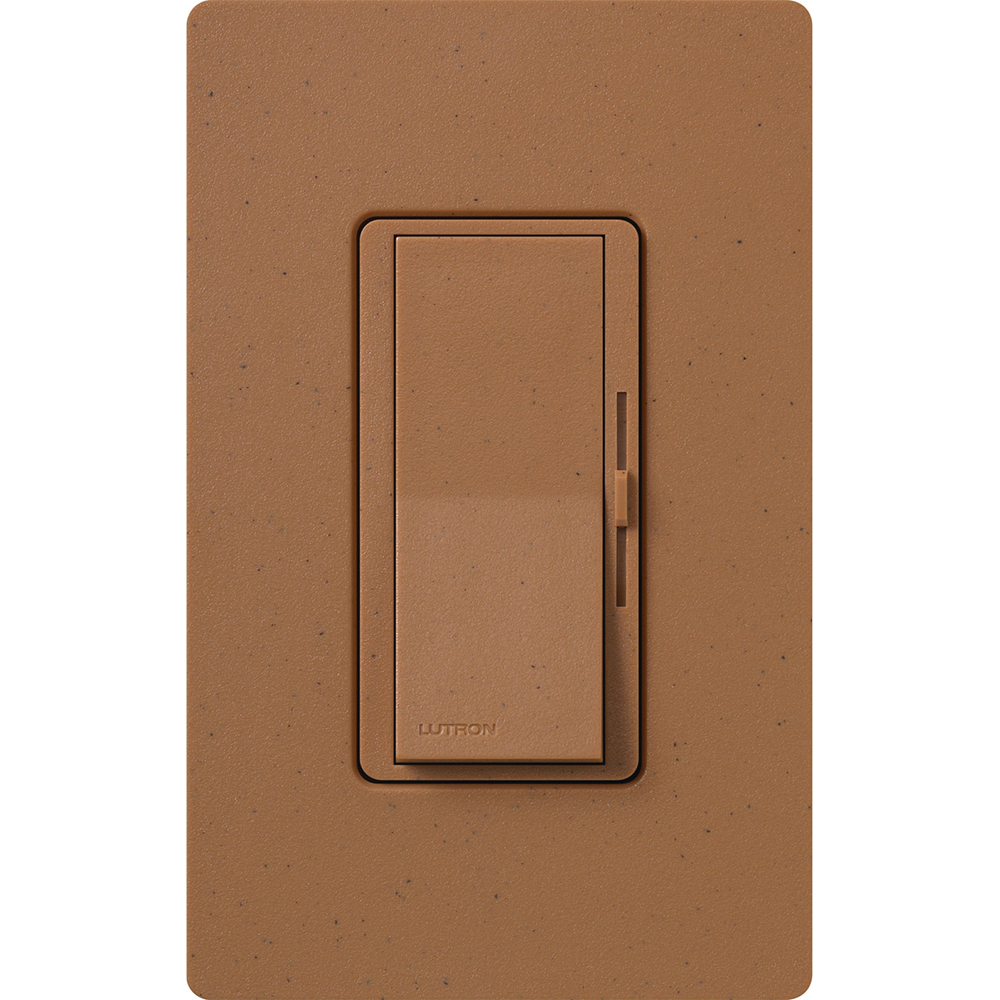

DVSCTV-TC Lutron Electronics Company
Lutron Electronics Company DVSCTV-TC LUTDVSCTVTC
Send Print
  1. pin-int

LUTDVSCTVTC

  • Manufacturers: Lutron Electronics
  • Brand Name: Lutron Electronics Company
  • BPN: LUTDVSCTVTC
  • MPN: DVSCTV-TC
  • UPC:027557663649
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Controls 0-10 V LED or fluorescent fixture loads, 30 mA max control current. Paddle turns on/off. Slide up to brighten, down to dim. Power pack required.

Actuator      :      Paddle Switch
Application      :      Lighting
Brand Name      :      Lutron Electronics Company
Color      :      Terracotta
Connection Type      :      Wire Leads
Connection      :      Wire Leads
Country of Origin      :      USA
Enclosure Material      :      Plastic
Enclosure Standard      :      Plastic
Environmental Conditions      :      Indoor Use Only
Frequency Rating      :      50-60 Hz
Frequency      :      50 Hz
Insulation Material      :      Plastic
Material      :      Metal
Mounting Type      :      Wallbox
Mounting      :      Wallbox
Number of Poles      :      1 Pole
Operating Temperature      :      0 degrees C
Size      :      2.94 in
Standards      :      UL, CSA
Standard      :      CSA,UL
Sub Brand      :      Diva
Trade Slang      :      027557663649, Diva, LUTDVSCTVTC, Lutron, DVSCTV-TC, Fluorescent Dimmers - Decora, Dimmers & Switches - Wired, Lighting Control Systems - Wired, Lighting, Lighting Controls
Type      :      Dimmer,Single-pole
Voltage Rating      :      24 VAC
Voltage      :      24 Volt

Features

  • Controls 0-10 V LED or fluorescent fixture loads, 30 mA max control current
  • Paddle turns on/off
  • Slide up to brighten, down to dim
  • Power pack required.

Standards and Certifications

  • UL
  • CSA

Specifications

  • Class Code: ED-LSR
  • Actuator: Paddle switch
  • Application: Lighting Control
  • Color: Terracotta
  • Connection: Wire Leads
  • Enclosure: Plastic
  • Environmental Conditions: Indoor use only
  • Frequency Rating: 50 to 60 Hz
  • Insulation: Plastic
  • Material: Plastic/Metal
  • Mounting: Wallbox
  • Number Of Poles: 1
  • Operating Temperature: 32 to 104 F | 0 to 40 C
  • Size: 4.69 x 2.94 in | 119 x 75 mm
  • Type: Dimmer, single-pole
  • Voltage Rating: 24 VAC
  • pdfSpec Sheet https://media.distributordatasolutions.com/xlsx_lutron/2023q1/documents/cbda0352d48b0fbda30cfc4d75232a2fee21bc32.pdf
