URMJS-8T-DV-B Lutron®
Lutron® URMJS-8T-DV-B LUTURMJS8TDVB
Send Print
  1. pin-int

LUTURMJS8TDVB

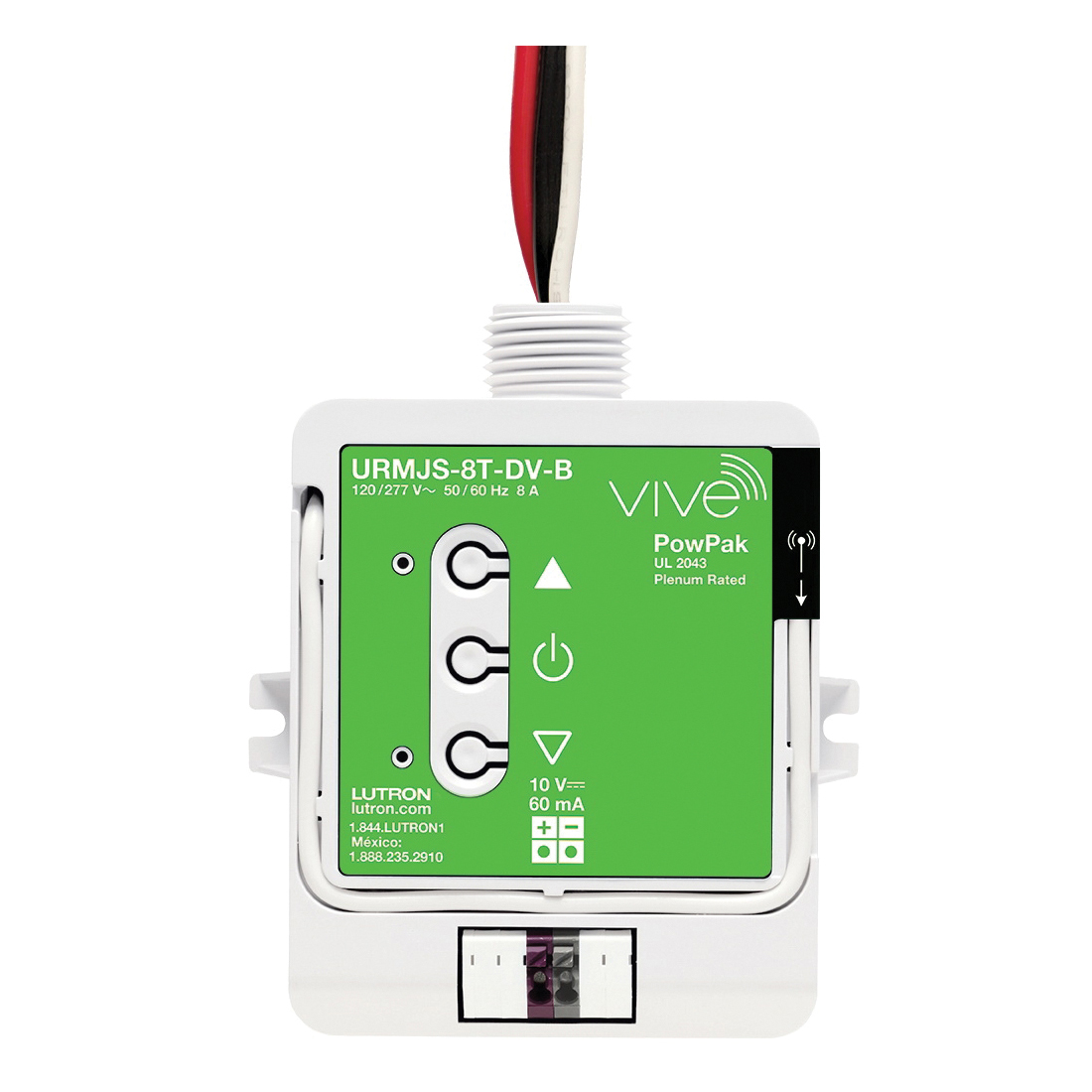

Lutron® PowPak® URMJS-8T-DV-B Dimming Module, On/Off Operation, 120/277 VAC, 60/30 ft, Fluorescent/LED Lamp

  • Manufacturers: Lutron Electronics
  • Brand Name: Lutron®
  • BPN: LUTURMJS8TDVB
  • MPN: URMJS-8T-DV-B
  • UPC:784276159739
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Lutron® PowPak® Dimming Module, Series: URMJS, 120/277 VAC, 8 A, 550/610 mW Power, Fluorescent/LED Lamp, Operation Mode: On/Off, 60/30 ft Sensing, 431 to 437 MHz Frequency, Junction Box Mounting, 32 to 104 deg F, 3.94 in H x 2.82 in W x 1.25 in D Dimensions

Amperage Rating      :      8 A
Dimensions      :      3.94 in H x 2.82 in W x 1.25 in D
Frequency Rating      :      431 to 437 MHz
Lamp Type      :      Fluorescent/LED
Mounting Type      :      Junction Box
Operation Mode      :      On/Off
Power Rating      :      550/610 mW
Sensing Range      :      60/30 ft
Series      :      URMJS
Temperature Rating      :      32 to 104 deg F
Voltage Rating      :      120/277 VAC
  • Controls up to 6 mA of 0 to 10 VDC controlled fixtures
  • Switches up to 8 A total
  • 0 to 10 VDC control link automatically sources or sinks to the third party fixtures
  • Configurable high and low end trim
  • Receives wireless inputs from up to 10 Pico® remote controls, 10 Radio Powr Savr™ occupancy/vacancy sensors and 1 Radio Powr Savr™ daylight sensor
  • Utilizes Lutron® Clear Connect® RF technology
  • Mounts to a US style junction box through a standard size knockout
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RMJS_8T_DV_B_EM_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RMJS_8T_DV_B_EM_Specification_Sheet.pdf
