RR-15APS-1-MN Lutron®
Send Print
  1. pin-int

LUTRR15APS1MN

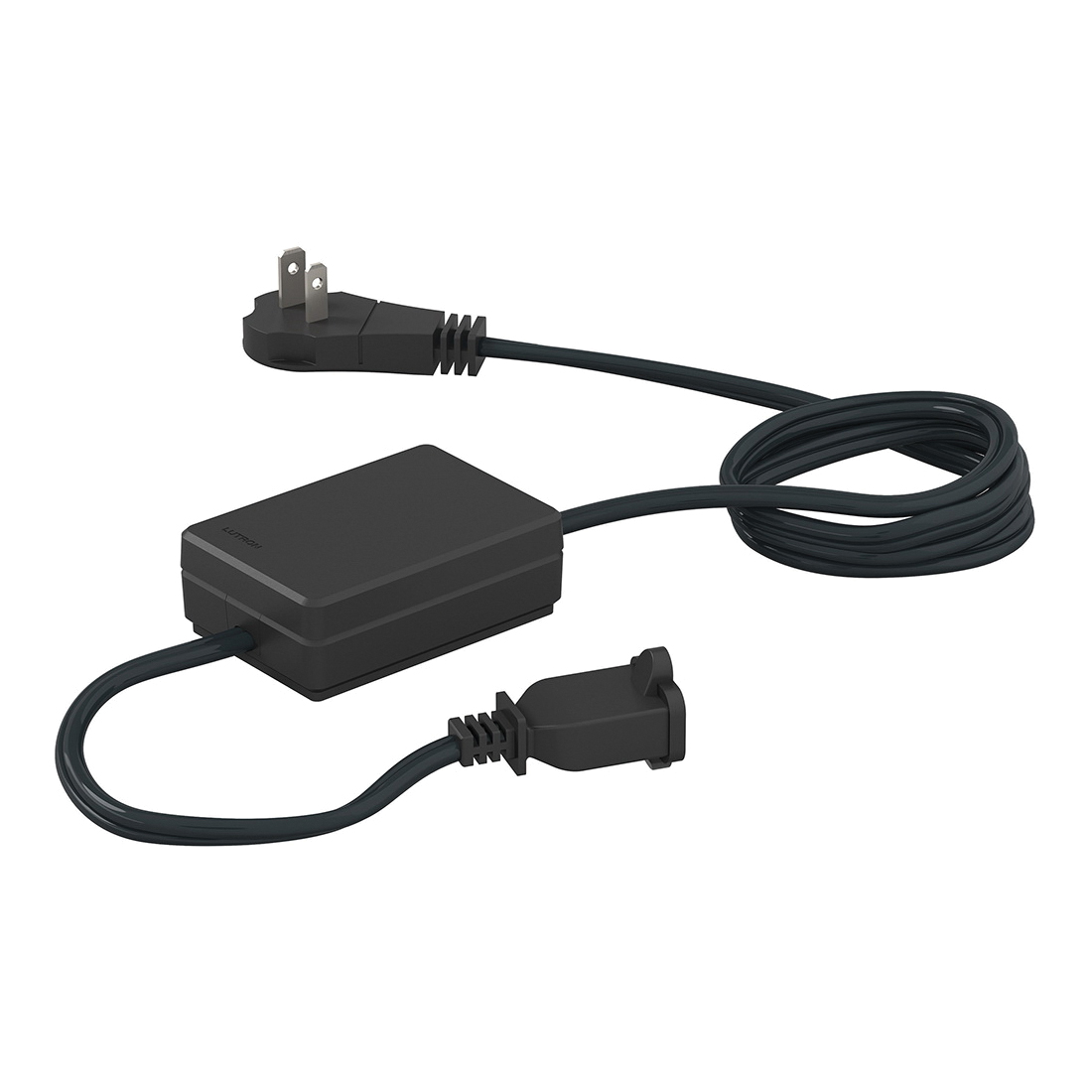

Lutron® RR-15APS-1-MN RF Plug-in Appliance Module, 120 VAC, 15 A, 0.3 W

  • Manufacturers: Lutron Electronics
  • Brand Name: Lutron®
  • BPN: LUTRR15APS1MN
  • MPN: RR-15APS-1-MN
  • UPC:027557975681
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

RadioRA® 2 RF plug-in modules are simple to install and easy to use. RF plug-in modules allow floor and table lamps (RR-3PD-1) as well as general purpose switching loads (RR-15APS-1) to be added to a system quickly and easily using Clear Connect® RF techn

Lutron® RF Plug-in Appliance Module, 120 VAC, 15 A, 0.3 W Power, 32 to 104 deg F, Midnight, 3.25 in H x 2.25 in W x 1.23 in D Dimensions

Amperage Rating      :      15 A
Color      :      Midnight
Dimensions      :      3.25 in H x 2.25 in W x 1.23 in D
Power Rating      :      0.3 W
Temperature Rating      :      32 to 104 deg F
Type      :      General Purpose
Voltage Rating      :      120 VAC
  • On a single tap of the toggle button, load toggles ON or OFF
  • The appliance module may be used with, but is not limited to, the following, task lighting, humidifiers, monitors, fans, printers
  • Shut down process before power is interrupted, such as computers, cool down process before power is interrupted, such as projectors, programming, such as clocks or DVRs, long warm up cycle
  • If an over temperature condition is detected, the LED on the unit will flash a unique sequence (double blink, then pause) and turn the load off
  • Proper installation and conformance to all specifications should be ensured before proceeding, to return the device to normal operation, cycle power to the device
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RR_15APS_1_MN_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RR_15APS_1_MN_Specification_Sheet.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RR_15APS_1_MN_Warranty.pdf
