SC-1PS-LS Lutron®
Send Print
  1. pin-int

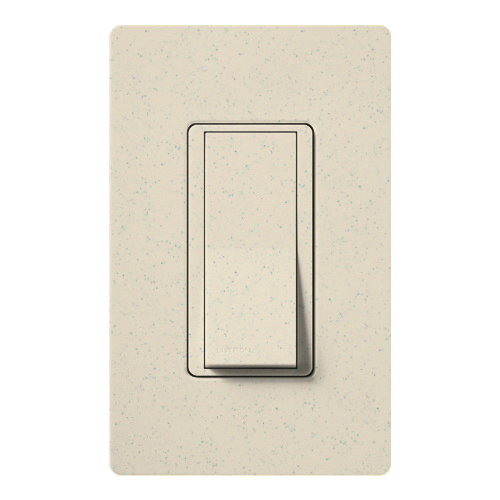

Lutron® Claro® Diva® Satin Colors® SC-1PS-LS Designer Style Paddle Switch With (2) Brass Screws, 120/277 VAC, 15 A, 60 Hz, 1 Poles

  • Manufacturers: Lutron Electronics
  • Brand Name: Lutron®
  • MPN: SC-1PS-LS
  • UPC:027557508384
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Simple and elegant solution designed to match your existing designer style switches and accessories. Easily turn the lights on and off with the paddle switch. While the lights are on, use the sleek slide control to adjust lights to your perfect level. The

Lutron® Claro® Diva® Satin Colors® Paddle Switch, Designer Style, Series: SC-1PS, 120/277 VAC, 15 A Electrical Rating, 60 Hz Frequency, 1 Pole, Paddle Actuator, ON/OFF Switch Function, Back Wiring Connection, Wall Mounting, Screw Terminal, Metal/Plastic,

Actuator      :      Paddle
Color      :      Limestone
Connection      :      Back Wiring
Dimensions      :      4.69 in H x 2.94 in W x 1.31 in D
Electrical Ratings      :      15 A at 120/277 VAC
Environmental Conditions      :      32 to 104 deg F Ambient Temperature, 90% Non-Condensing Relative Humidity
Frequency Rating      :      60 Hz
Material      :      Thermoplastic
Mounting      :      Wall
Number of Poles      :      1
Series      :      SC-1PS
Switch Function      :      ON/OFF
Terminal Type      :      Screw
Type      :      Designer General Purpose
  • Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening
  • Full family of products for most lighting sources
  • Easy installation in any home
  • Square law dimming
  • Power failure memory
  • Electrostatic discharge tested
  • RFI suppression
  • Precise color matching
  • Mechanical air gap switch to disconnect load power
  • No derating if ganged
  • Use with any 15 A load
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVSC_10P_SI_Catalog.pdf
  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_SC_1PS_SI_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_SC_1PS_SI_Manual.pdf
