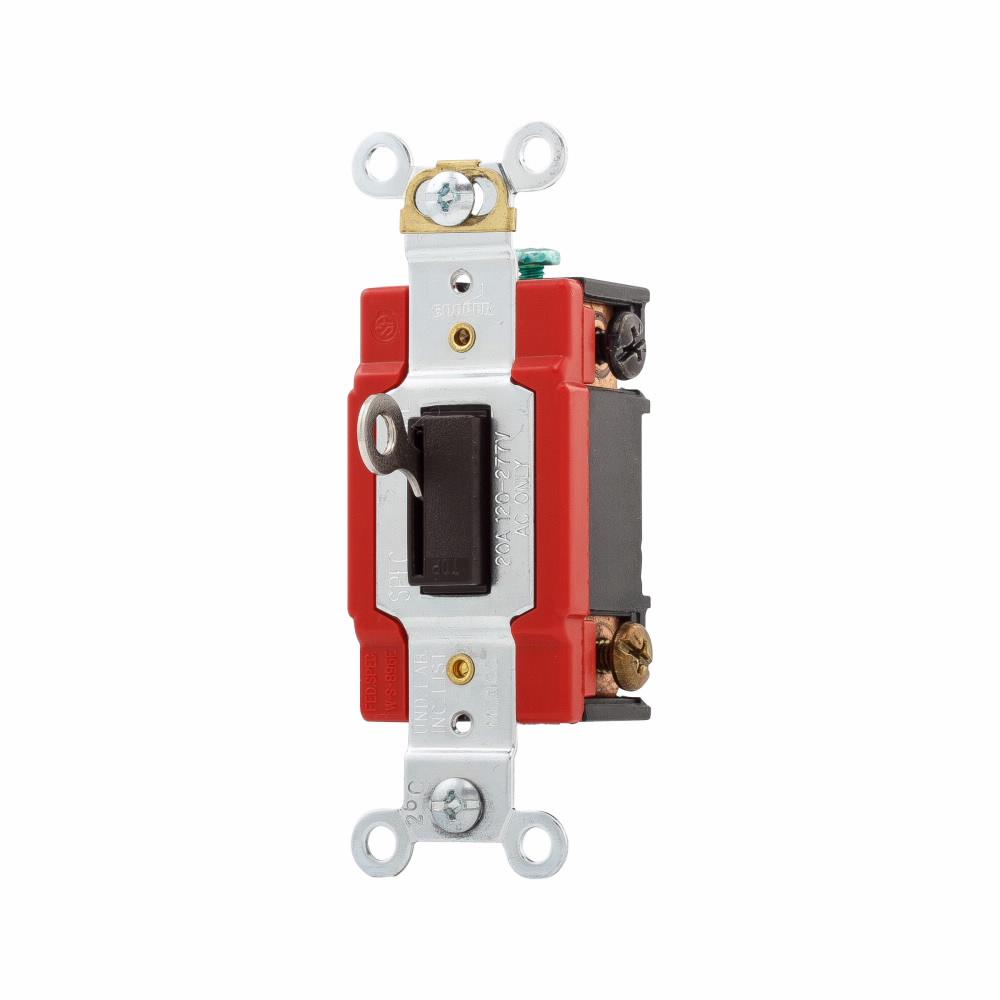

EATON Arrow Hart AH1224L 4-Way Auto Ground AC Locking Switch, 120/277 VAC, 20 A, 1 hp, 2 hp Power Rating

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAH1224L
  • MPN: AH1224L
  • UPC:032664706349
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Industrial grade toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Ground screw terminal standard. 0.05 in THK steel mounting strap zinc plated for corrosion resistance. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Combination slot/Phillips® head mounting and terminal screws ease installation with power screwdrivers (slot/robertson screws in Canada where available). Tri-combo screws.

EATON Arrow Hart AC Locking Switch, 4-Way Auto Ground, 120/277 VAC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 VAC Contact, Key Operated Actuator, Back/Side Wired/Screw Connection, Wall Mounting, Phenolic/Urea, Brown, Environmental Conditions: -20 to 60 deg C Operating Temperature, 2.4 in L x 1.31 in W x 1.05 in D Dimensions

Actuator      :      Key Operated
Amperage Rating      :      20 A
Color      :      Brown
Connection      :      Back/Side Wired/Screw
Contact Rating      :      20 A at 120/277 VAC
Dimensions      :      2.4 in L x 1.31 in W x 1.05 in D
Environmental Conditions      :      -20 to 60 deg C Operating Temperature
Material      :      Phenolic/Urea
Mounting      :      Wall
Power Rating      :      1 hp, 2 hp
Type      :      4-Way Auto Ground
Voltage Rating      :      120/277 VAC
  • Lighted version toggle glows when in the off position
  • Color-coded faces identify amperage
