PJ14A EATON
Send Print
  1. pin-int

CWDPJ14A

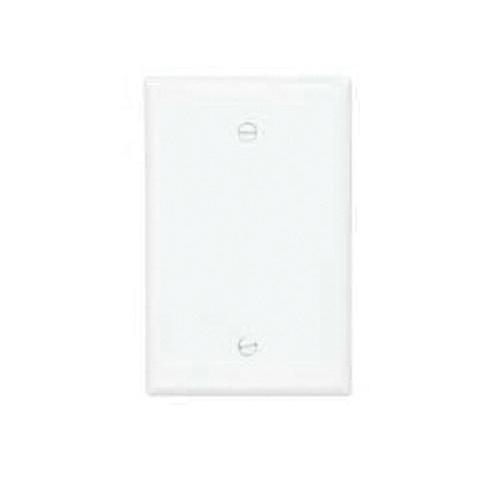

EATON Arrow Hart™ Eaton Wiring Devices PJ14A Mid-Sized Blank Wall Plate, 1 Gangs, 4.87 in H x 3.12 in W, Polycarbonate/Thermoplastic, Almond

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDPJ14A
  • MPN: PJ14A
  • UPC:032664627101
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Mid size wallplates - polycarbonate Blank Polycarbonate wallplates are virtually unbreakable, with high structural rigidity, long term form retention and superior impact and abrasion resistance. Rugged construction reduces installation cost due to less plate breakage and resists bowing to provide a smooth, flat installation. Exclusive time saving screw catch feature holds mounting screws captive and simplifies installation. High gloss finish is soil-resistant. Polycarbonate wallplates are virtually unbreakable, with high structural rigidity, long term form retention and superior impact and abrasion resistance. Matching mounting screws provided.

EATON Arrow Hart™ Eaton Wiring Devices Blank Wall Plate, Mid-Sized, Series: PJ Series, 1 Gangs, 4.87 in H x 3.12 in W Size, 2.64 in H x 1.31 in W Cutout, Surface Mounting, Superior Impact-Resistance Construction, 0.08 in Thickness, Polycarbonate/Thermoplastic, Almond, High Gloss

Color      :      Almond
Construction      :      Superior Impact-Resistance
Cutout      :      2.64 in H x 1.31 in W
Finish      :      High Gloss
Material      :      Polycarbonate/Thermoplastic
Mounting      :      Surface
Number of Gangs      :      1
Series      :      PJ Series
Size      :      4.87 in H x 3.12 in W
Thickness      :      0.08 in
Type      :      Mid-Sized
  • Virtually unbreakable plates reduce installation and replacement costs
  • Injection molded
  • Rugged design and quality materials make Arrow Hart™ wallplates the best choice
  • -40 to 158 deg f temperature rating
  • Medium size wallplates for applications that require additional wall coverage
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1708cf9afc39236d0d5180ec8d7eccb44602caaf94736582ec1873eeeb73f347.pdf
