CSB315STW-SP EATON
EATON CSB315STW-SP CWDCSB315STWSP
Send Print
  1. pin-int

CWDCSB315STWSP

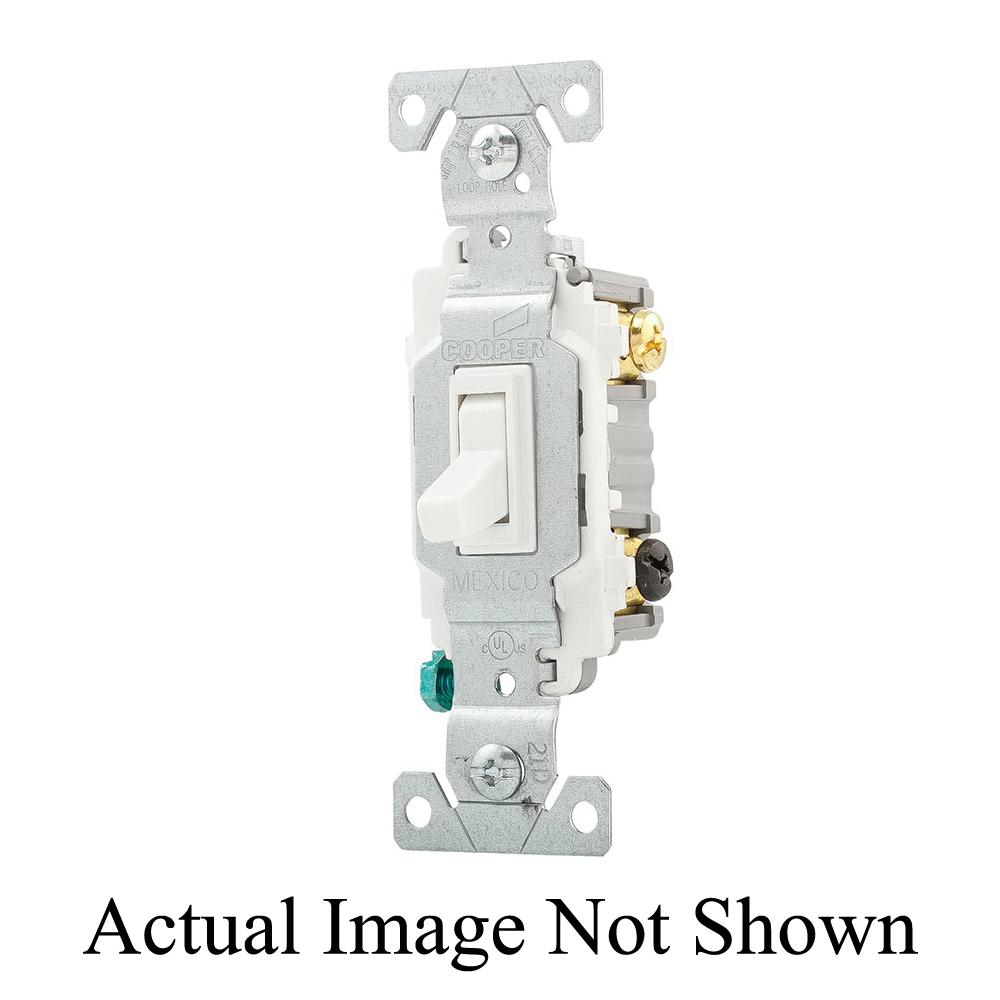

EATON Arrow Hart® CSB315STW-SP 3-Way Toggle Switch, 120/277 V, 15 A, 1/2 hp Power Rating

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDCSB315STWSP
  • MPN: CSB315STW-SP
  • UPC:032664709982
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart® Toggle Switch, 3-Way, 120/277 V, 15 A, 1/2 hp Power, Toggle Actuator, Wall Mounting, Screw Terminal, PVC, Brown, Environmental Conditions: -20 to 60 deg C Operating Temperature, 3.28 in L x 1.31 in W x 1.05 in D Dimensions

Actuator      :      Toggle
Amperage Rating      :      15 A
Color      :      Brown
Dimensions      :      3.28 in L x 1.31 in W x 1.05 in D
Environmental Conditions      :      -20 to 60 deg C Operating Temperature
Material      :      PVC
Mounting      :      Wall
Power Rating      :      1/2 hp
Terminal Type      :      Screw
Type      :      3-Way
Voltage Rating      :      120/277 V
  • 2.38 in L screw to screw
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_71faade23bd8e5a75e0d9718c3568598e31b5cfae184af18346a66d19fc1f089.pdf
