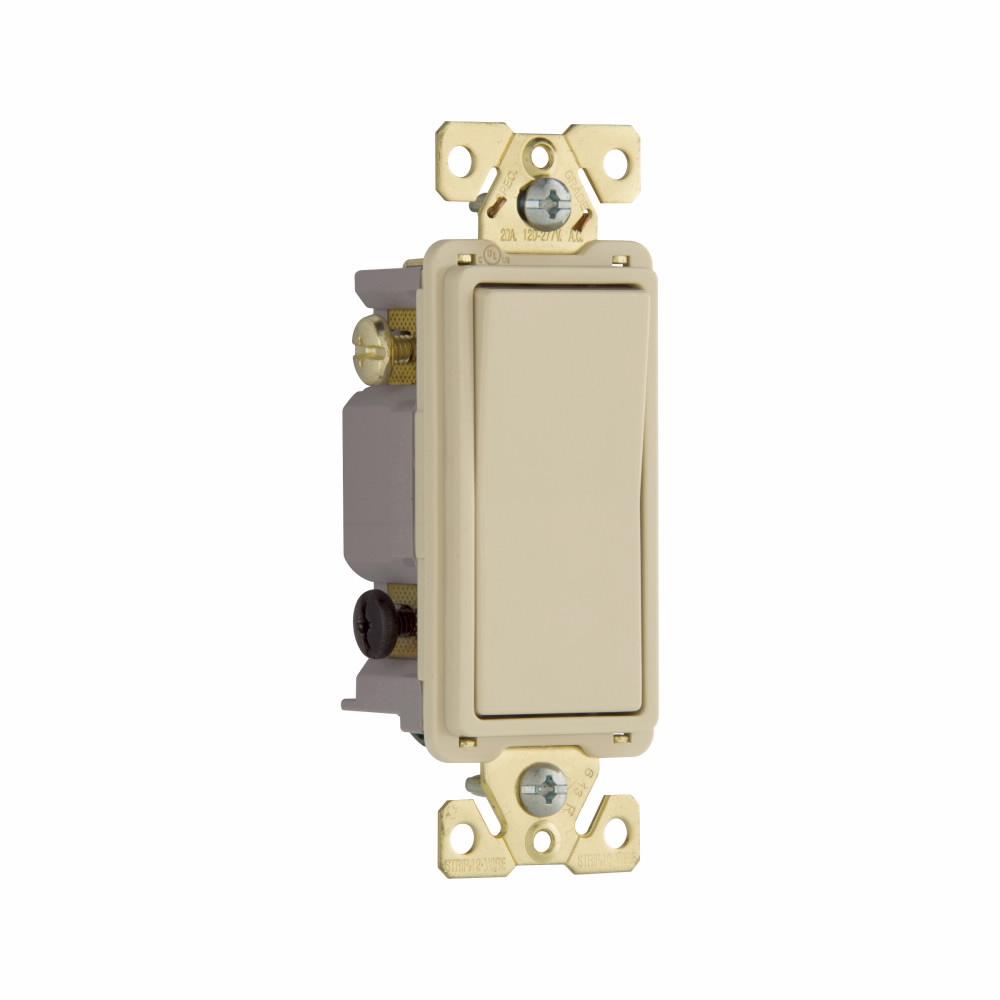

EATON Arrow Hart 7624V-BOX 4-Way AC Decorator Switch, 120/277 VAC, 20 A, 1 hp, 2 hp Power Rating
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD7624VBOX
- MPN: 7624V-BOX
- UPC:032664647437
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
EATON Arrow Hart AC Decorator Switch, 4-Way, Series: 7600, 120/277 VAC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 VAC Contact, Paddle Actuator, Wall Mounting, Screw Terminal, 30000 Cycles Operating Cycles, Polycarbonate/PVC/Thermoplastic, Ivory, Environmental Conditions: -20 to 60 deg C Operating Temperature, 1.44 in W x 1.18 in D x 3.81 in H Dimensions
| Actuator | : | Paddle |
| Amperage Rating | : | 20 A |
| Color | : | Ivory |
| Contact Rating | : | 20 A at 120/277 VAC |
| Dimensions | : | 1.44 in W x 1.18 in D x 3.81 in H |
| Environmental Conditions | : | -20 to 60 deg C Operating Temperature |
| Material | : | Polycarbonate/PVC/Thermoplastic |
| Mounting | : | Wall |
| Operating Cycles | : | 30000 Cycles |
| Power Rating | : | 1 hp, 2 hp |
| Series | : | 7600 |
| Terminal Type | : | Screw |
| Type | : | 4-Way |
| Voltage Rating | : | 120/277 VAC |
- Automatic grounding eliminates need for bonding jumper in metal enclosures
- Welded construction provides superior assembly security under heavy use
- Tri-combo head terminal and mounting screws, plus easy access grounding terminal
- Tapered back-wire openings handle multiple sizes and types, up to 10 AWG solid or stranded wire
- Smooth face for ease of cleaning
- Built-in wire stripper
- Stippled line and ground contacts ensure solid contact, ground screw clamp provides secure wiring and reduces installation time
- Ground screw clamp provides secure wiring
- Oversized termination screws
- Polycarbonate paddle/top housing and PVC bottom housing
- Standard rocker switch
