7622B-BOX EATON
EATON 7622B-BOX CWD7622BBOX
Send Print
  1. pin-int

CWD7622BBOX

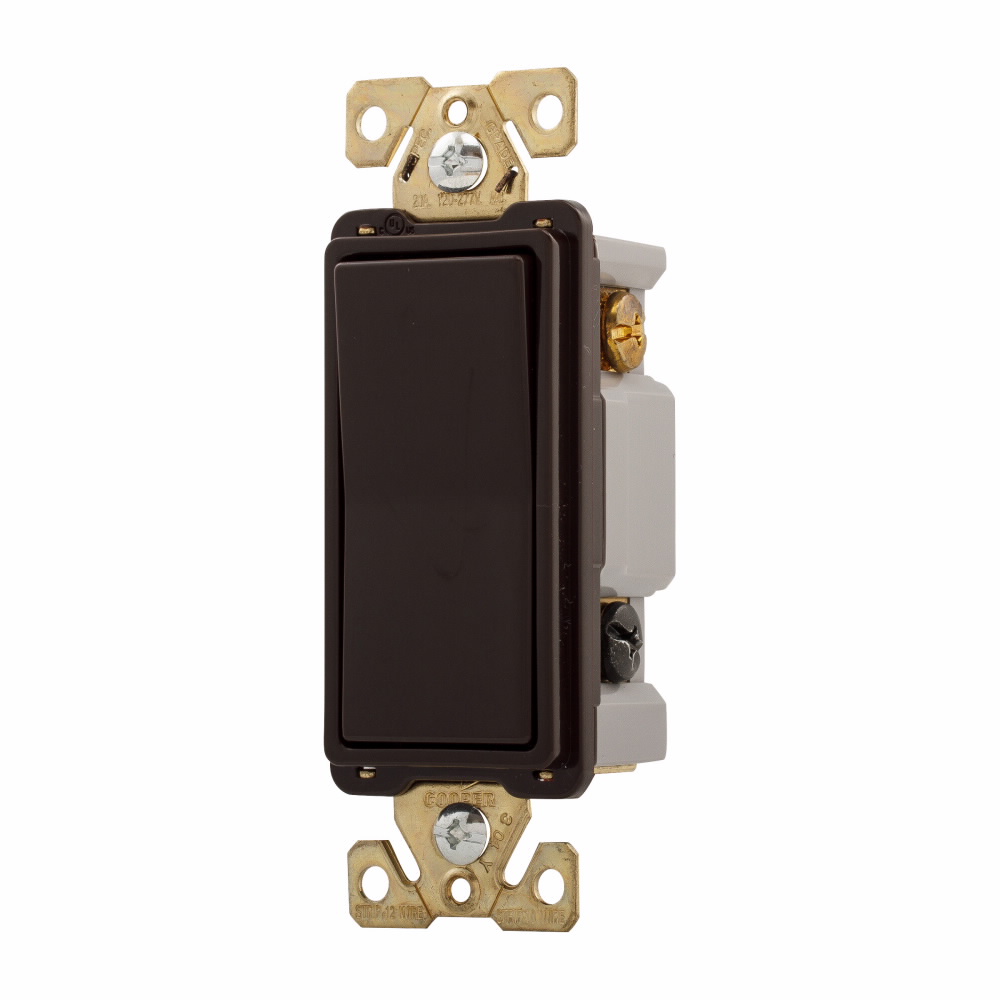

EATON Eaton Wiring Devices Arrow Hart® 7622B-BOX 1-Phase Auto Grounding Decorator Switch, 120/277 VAC, 20 A

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD7622BBOX
  • MPN: 7622B-BOX
  • UPC:032664647314
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Eaton Wiring Devices Arrow Hart® Decorator Switch, 1-Phase Auto Grounding, 120/277 VAC, 20 A, 2 Pole, Antimicrobial Paddle Actuator, Flush Mounting, Back/Side Wire/Screw Terminal, Thermoplastic, Brown, 1.29 in L x 1.18 in W x 4.19 in H Dimensions

Actuator      :      Antimicrobial Paddle
Amperage Rating      :      20 A
Color      :      Brown
Dimensions      :      1.29 in L x 1.18 in W x 4.19 in H
Material      :      Thermoplastic
Mounting      :      Flush
Number of Poles      :      2
Terminal Type      :      Back/Side Wire/Screw
Type      :      1-Phase Auto Grounding
Voltage Rating      :      120/277 VAC
  • Maintained closure
  • Motor control load
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_53dac4194915ef54b3ca3d5956461835d4fe13412219d30b1fb05fb2cc164f5e.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fe4d39ada36d1f1b7c5d923ef62d8ad77759b3a884ed931eff1a0d4430628bbf.pdf
