827V-BOX EATON
EATON 827V-BOX CWD827VBOX
Send Print
  1. pin-int

CWD827VBOX

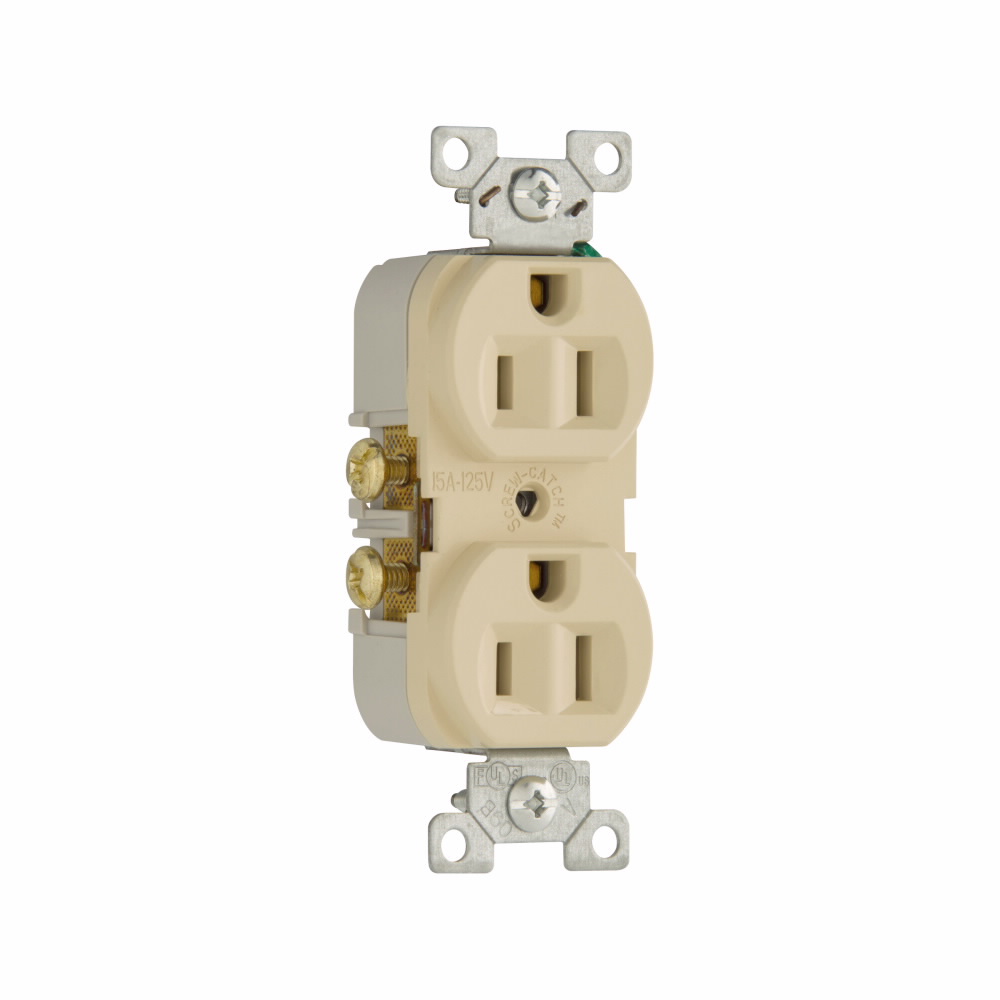

EATON Arrow Hart® 827V-BOX 827 Duplex Straight Blade Receptacle, 125 V, 15 A, 2 Poles, 3 Wires, Ivory

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD827VBOX
  • MPN: 827V-BOX
  • UPC:032664182907
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.

EATON Arrow Hart® Straight Blade Receptacle, Duplex, Series: 827, 125 V, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Premium Hospital Grade, -20 to 70 deg C, Back/Side Wire/Screw Terminal, Nylon, Ivory, 0.82 in D x 4.19 in H Dimensions

Amperage Rating      :      15 A
Color      :      Ivory
Dimensions      :      0.82 in D x 4.19 in H
Grade      :      Commercial/Premium Hospital
Material      :      Nylon
NEMA Rating      :      5-15R
Number of Poles      :      2
Number of Wires      :      3
Series      :      827
Temperature Rating      :      -20 to 70 deg C
Terminal Type      :      Back/Side Wire/Screw
Type      :      Duplex
Voltage Rating      :      125 V
  • Brass contacts
  • Flush mounting
  • Nylon face, glass filled nylon base
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6bac1017e872bab130c9dc84eac89d2baef58181499e5a8bd9095d274db2e85d.pdf
