TI3101-W EATON
EATON TI3101-W CWDTI3101W
Send Print
  1. pin-int

CWDTI3101W

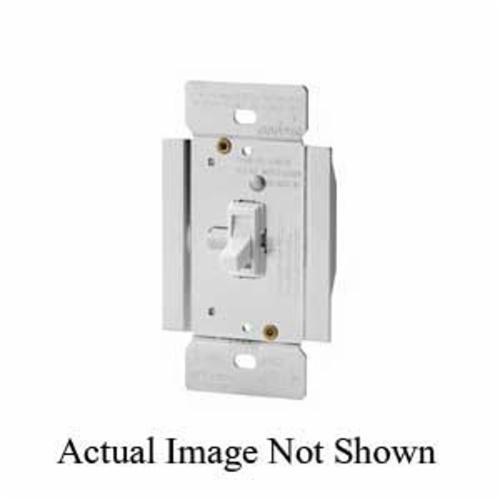

EATON Trace® TI3101-W 3-Way Toggle Dimmer Switch, 120 VAC, 1 Poles, On/Off Operation, White

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDTI3101W
  • MPN: TI3101-W
  • UPC:032664706615
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Toggle dimmers provide a smooth slide, full range dimming for incandescent lighting. In addition, one fully variable fan speed control is included in the product series this line offers combined 1-pole (single location) and 3-way (multi-location) units for 600 W and 1000 W lamp loads. All trace toggle dimmers are compatible with any traditional style switch, wallplate or screw less wallplate.

EATON Trace® Toggle Dimmer Switch, 3-Way, 120 VAC, 1000 W Power, 60 Hz Frequency, 1 Pole, Incandescent/Halogen Lamp, Operation Mode: On/Off, Toggle Control, Flush Mounting, Lead Wire Terminal, 0 to 40 deg C, Polycarbonate, White, 2.75 in L x 2.85 in W x 4.75 in H Dimensions

Color      :      White
Control      :      Toggle
Dimensions      :      2.75 in L x 2.85 in W x 4.75 in H
Frequency Rating      :      60 Hz
Lamp Type      :      Incandescent/Halogen
Material      :      Polycarbonate
Mounting Type      :      Flush
Number of Poles      :      1
Operation Mode      :      On/Off
Power Rating      :      1000 W
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Lead Wire
Type      :      3-Way
Voltage Rating      :      120 VAC
  • Power failure mode, lighted, non-preset
  • Integrated toggle switch for On/Off and Dim/Bright operation
  • Radio frequency interference (RFI) filtering for radio, audio and video equipment
  • Replaces a standard switch and offers dimmer capabilities
  • 16 AWG wire
  • On/Off and DIM/BRIGHT operation
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d8ab2c1020f0767e8533973f5067b03ff6b4e8d66d6ca92f6907e10bf5a94e32.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_Wiring_TI3101_V_Installation_Instructions.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1a51f09aa33326d959785a118500e93a6b0aa256f87f56dc87b5966653f0f8d1.pdf
