Tamper-resistant single and duplex receptacles provide compliance with 2011 NEC® Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. TR designation provides visual identification. Terminal screws are backed out and ready to wire. Extra long and extra wide mounting straps with patented built-in wire stripper for 14 and 12 AWG wire to speed installation. Side wire terminals accept up to 10 AWG solid or stranded wire and push-in terminals accept 14 AWG solid wire.

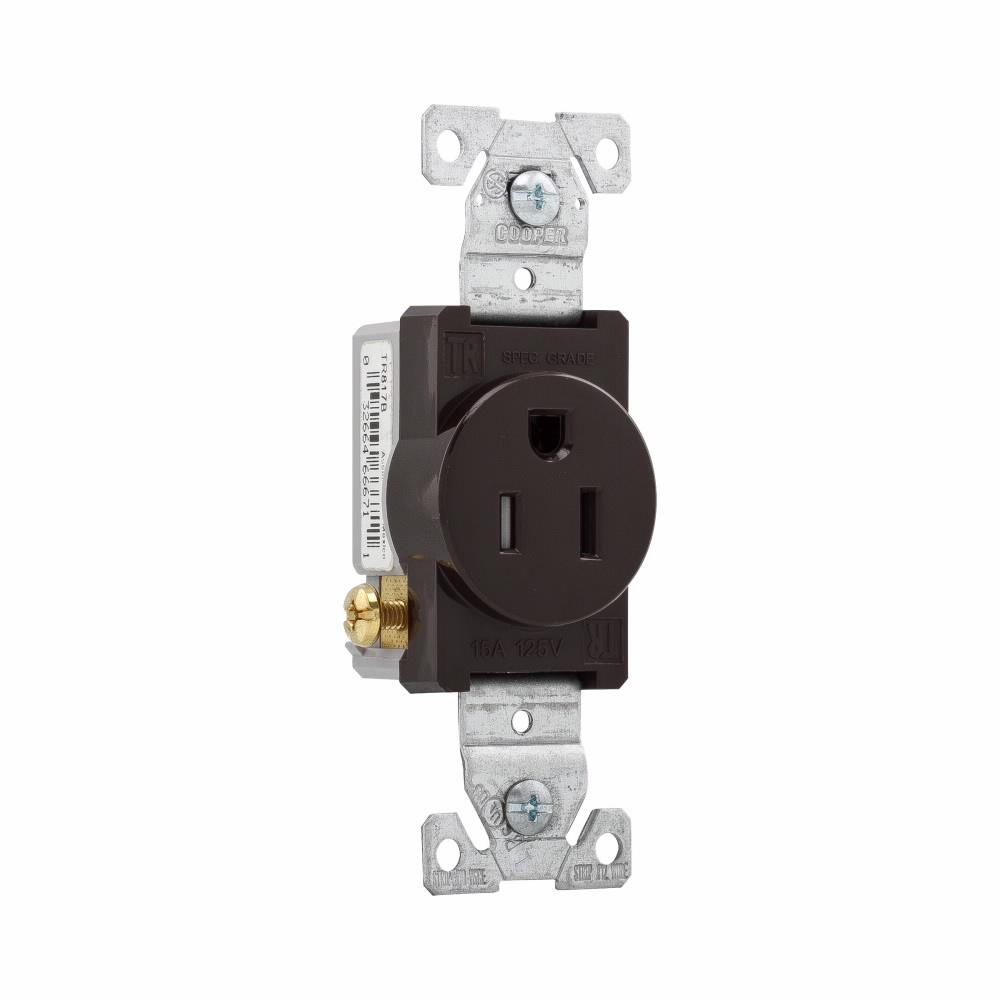

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Single Tamper-Resistant, Series: TR817, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, Nylon, Brown, 1.3 in L x 0.87 in W x 4.19 in H Dimensions

• Provides compliance with 2014 NEC Article 406.12
• Durable impact-resistant thermoplastic face and back body is virtually unbreakable and also chemical-resistant
• TR designation provides visual identification that device has Tamper-resistant shutters preventing the insertion of foreign objects
• Terminal screws are backed out and ready-to wire
• Extra long and extra wide mounting straps
• Side wire terminals accept up to 10 AWG solid/stranded wire
• 14 to 10 AWG wire terminal

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e2bb2dd4e1af6b723f99c46f42ba55452ed59fd0a7bfb260c4aa3394e5470e22.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6cc8d50de49e0249ba25c1265280f52e1e368742ae9d76b60fc153d246bf8194.pdf
