5262LA
EATON
https://www.billows.com/3409420/product/CWD5262LA
https://www.billows.com/3409420/product/CWD5262LA
CWD5262LA

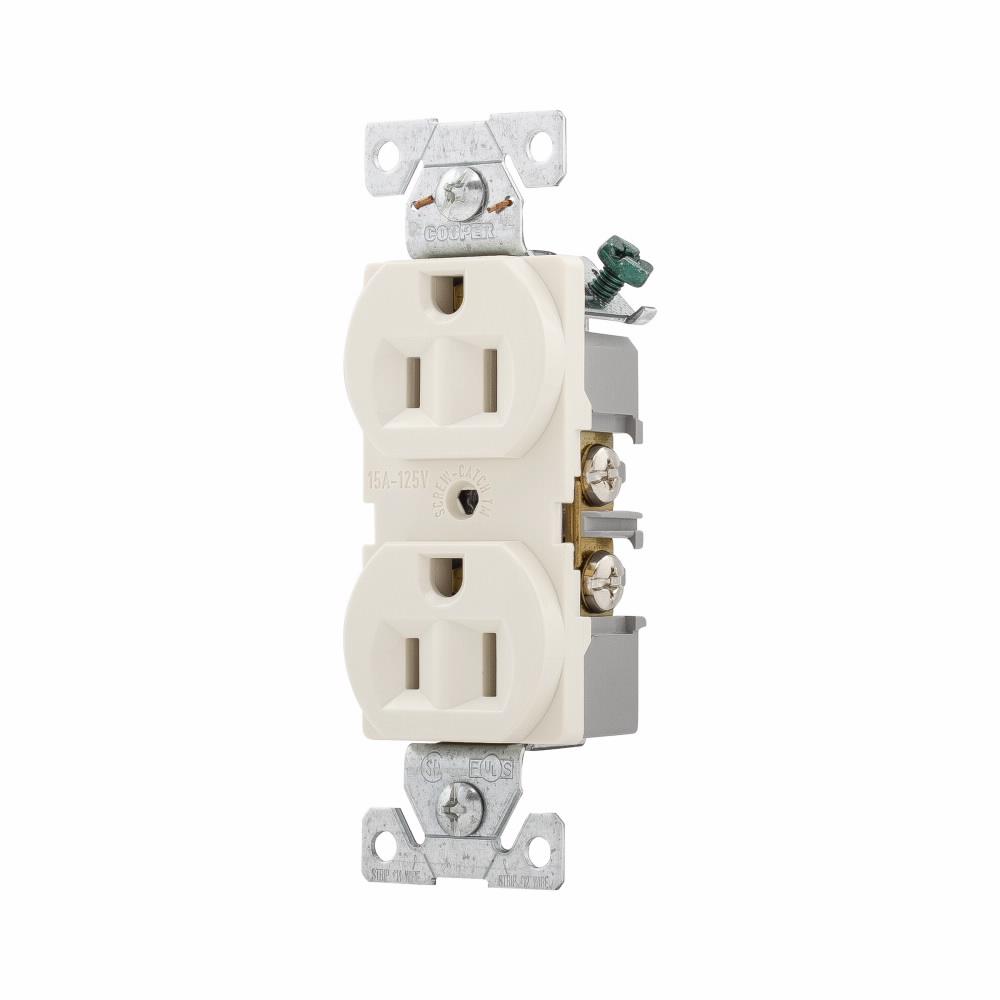

EATON Arrow Hart® 5262LA 5262 Duplex Grounding Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD5262LA
- MPN: 5262LA
- UPC:032664704314
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Construction specification grade straight blade receptacles - 15 A, 125 VAC, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and federal specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
EATON Arrow Hart® Straight Blade Receptacle, Duplex Grounding Standard, Series: 5262, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Construction Grade, -4 to 158 deg F, Screw Terminal, Glass Filled Nylon, Light Almond, 0.79 x 1.24 x 3.28 x 4 in Dimensions
| Amperage Rating | : | 15 A |
| Color | : | Light Almond |
| Dimensions | : | 0.79 x 1.24 x 3.28 x 4 in |
| Grade | : | Construction |
| Material | : | Glass Filled Nylon |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Series | : | 5262 |
| Temperature Rating | : | -4 to 158 deg F |
| Terminal Type | : | Screw |
| Type | : | Duplex Grounding Standard |
| Voltage Rating | : | 125 VAC |
- High impact and chemical-resistant nylon face maintains receptacle integrity
- Convenient built-in 10 and 12 AWG wire strippers
- All terminal and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures
- Extra long/wide mounting strap maintains assembly security and helps reach oversize cutouts
Specification Sheet
