CWD498BKBU

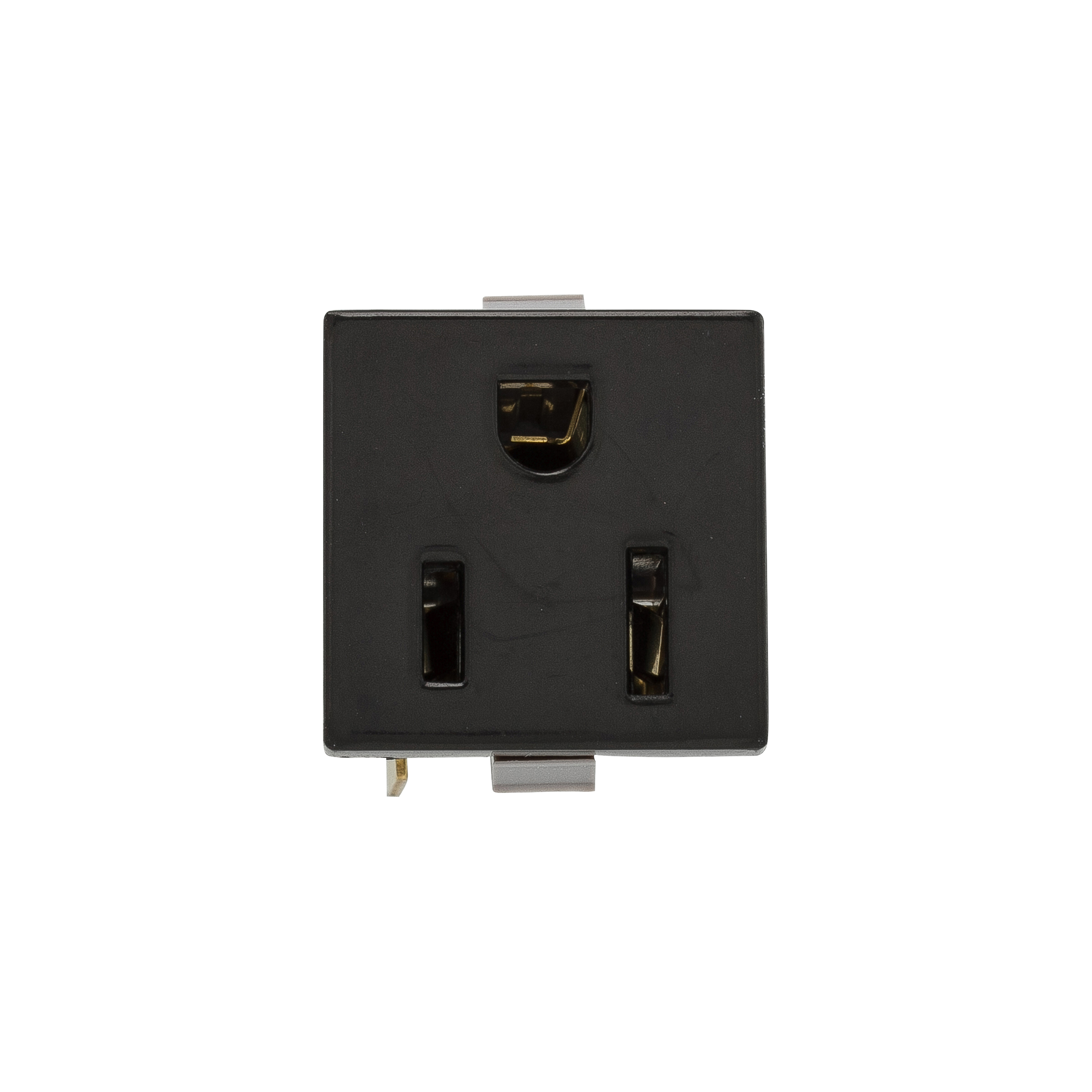

EATON 49-8BK-BU Receptacles Straight Blade Receptacle, 125 V, 15 A, 2 Poles, 3 Wires, Black
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD498BKBU
- MPN: 49-8BK-BU
- UPC:032664594717
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Commercial specification grade receptacles are challenged on a daily basis to provide a consistent, reliable means of connectivity in a wide variety of environments. The applications vary greatly by environment, and provide challenges from impact and chemical resistance to environmental extremes such as heat and moisture. The breadth of the Arrow Hart straight blade receptacle line provides solutions for all environments and applications.
EATON Straight Blade Receptacle, Receptacles, 125 V, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial Grade, 90 deg Quick-Connect/Wire Lead Terminal, Thermoplastic, Black, 1.06 in L x 0.72 in W x 1.06 in H Dimensions
| Amperage Rating | : | 15 A |
| Color | : | Black |
| Dimensions | : | 1.06 in L x 0.72 in W x 1.06 in H |
| Grade | : | Commercial |
| Material | : | Thermoplastic |
| NEMA Rating | : | 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Terminal Type | : | 90 deg Quick-Connect/Wire Lead |
| Type | : | Receptacles |
| Voltage Rating | : | 125 V |
- Snap-in, square
- Brass contacts
- Snap-in mounting
- Fiber back and steel clips
- Urea face, polypropylene base
Specification Sheet
