CWD5362BL

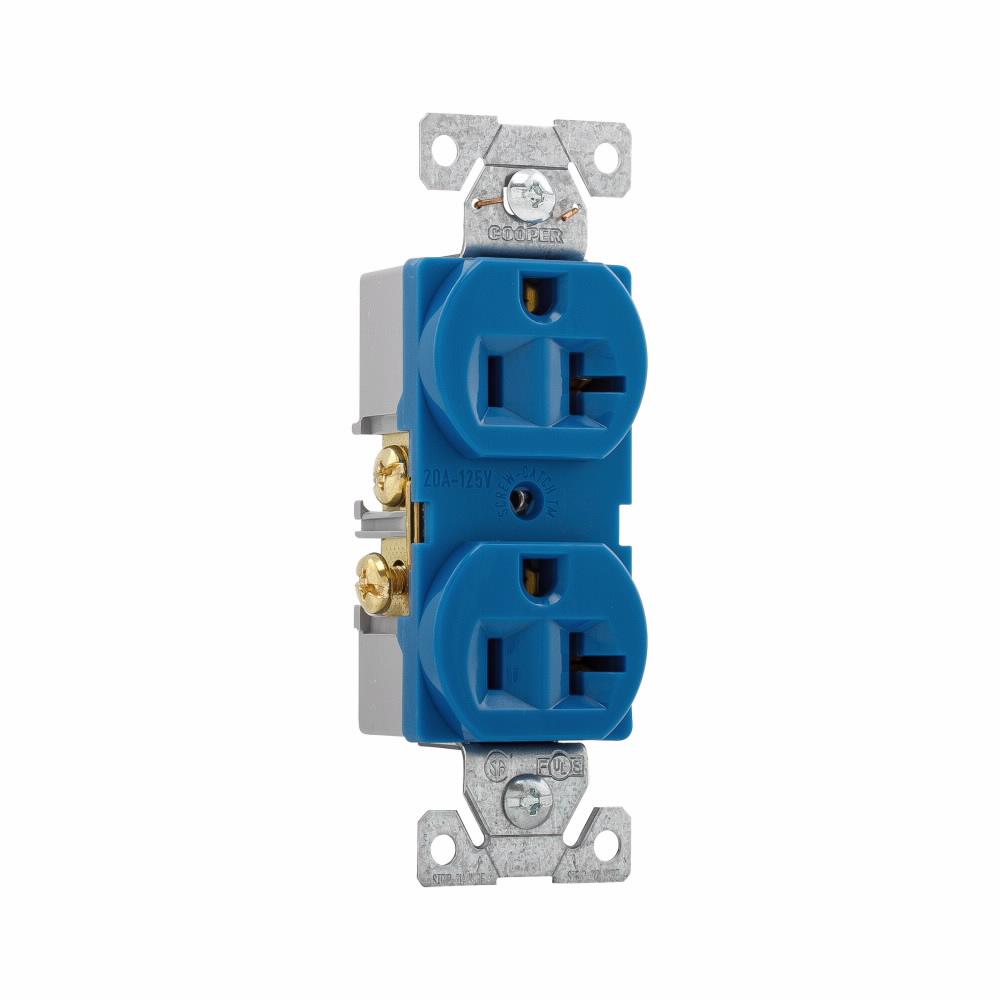

EATON Arrow Hart® 5362BL 5362 Duplex Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Blue
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD5362BL
- MPN: 5362BL
- UPC:032664725784
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Construction specification grade straight blade receptacles 20 A 125 VAC, NEMA 5-20R. Engineered for safe, reliable performance, these UL 498 and federal specification WC596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
EATON Arrow Hart® Straight Blade Receptacle, Duplex Grounding, Series: 5362, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Construction Grade, -4 to 158 deg F, Back/Side Wire Terminal, Nylon, Blue, 4.19 in L x 1.3 in W x 0.84 in D Dimensions
| Amperage Rating | : | 20 A |
| Color | : | Blue |
| Dimensions | : | 4.19 in L x 1.3 in W x 0.84 in D |
| Grade | : | Construction |
| Material | : | Nylon |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Series | : | 5362 |
| Temperature Rating | : | -4 to 158 deg F |
| Terminal Type | : | Back/Side Wire |
| Type | : | Duplex Grounding |
| Voltage Rating | : | 125 VAC |
- High impact and chemical resistant nylon face maintains receptacle integrity
- Convenient built-in 10 AWG and 12 AWG wire strippers for easy wiring
- All terminal and mounting screws triple combination (Slot/Phillips/Robertson) head for maximum installer flexibility
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures
- Extra long/wide mounting strap maintains assembly security and helps reach oversize cutouts
