74V-BOX EATON
EATON 74V-BOX CWD74VBOX
Send Print
  1. pin-int

CWD74VBOX

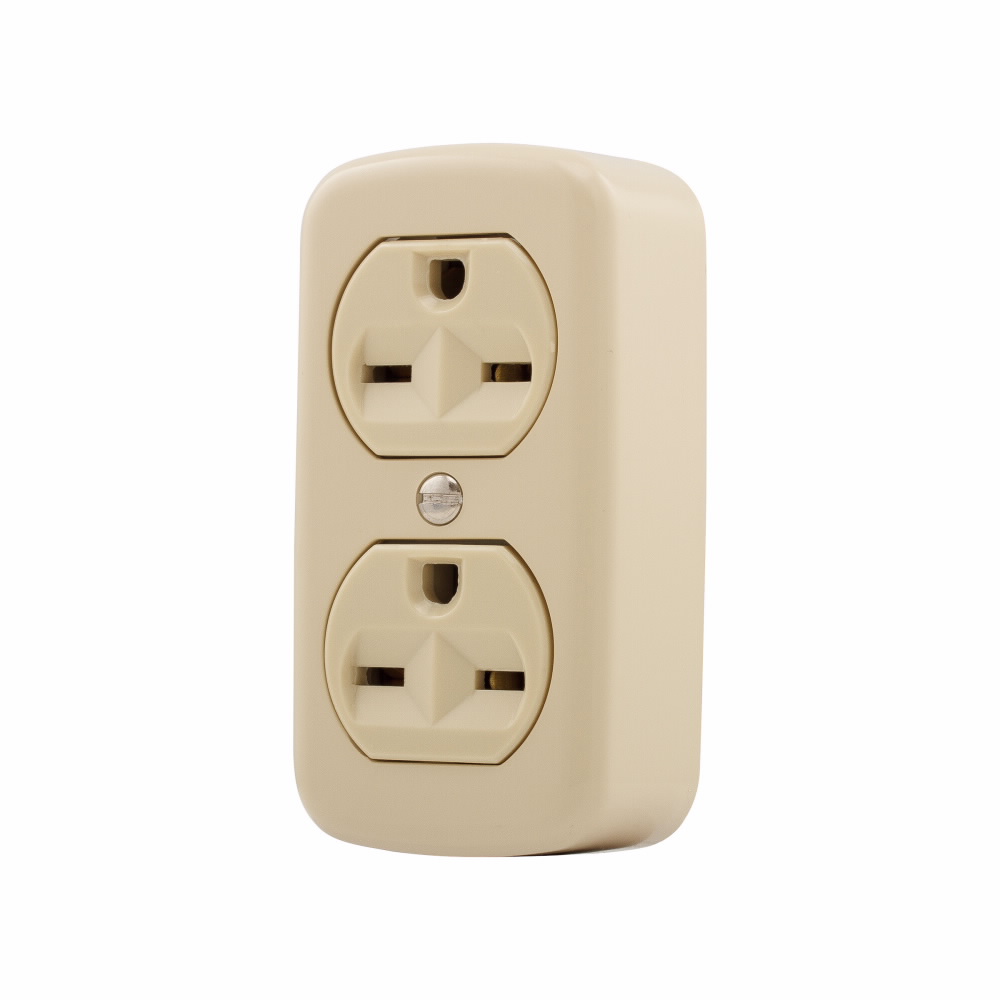

EATON 74V-BOX Receptacles Straight Blade Receptacle, 250 V, 15 A, 2 Poles, 3 Wires, Ivory

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD74VBOX
  • MPN: 74V-BOX
  • UPC:032664205200
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.

EATON Straight Blade Receptacle, Receptacles, 250 V, 15 A, 2 Pole, 3 Wires, 6-15R NEMA Rating, Standard Grade, -20 to 70 deg C, Back/Side Wire/Screw Terminal, Thermoplastic, Ivory, 1.21X 1.9 X3.6 in Dimensions

Amperage Rating      :      15 A
Color      :      Ivory
Dimensions      :      1.21X 1.9 X3.6 in
Grade      :      Standard
Material      :      Thermoplastic
NEMA Rating      :      6-15R
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -20 to 70 deg C
Terminal Type      :      Back/Side Wire/Screw
Type      :      Receptacles
Voltage Rating      :      250 V
  • Brass contact
  • Heavy duty plastic construction
  • Surface mounting
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7df43c899db3aca984b24cc5b461f7a87b910047fb7b6def2d1ffd1eef294d44.pdf
