816B-BOX EATON
EATON 816B-BOX CWD816BBOX
Send Print
  1. pin-int

CWD816BBOX

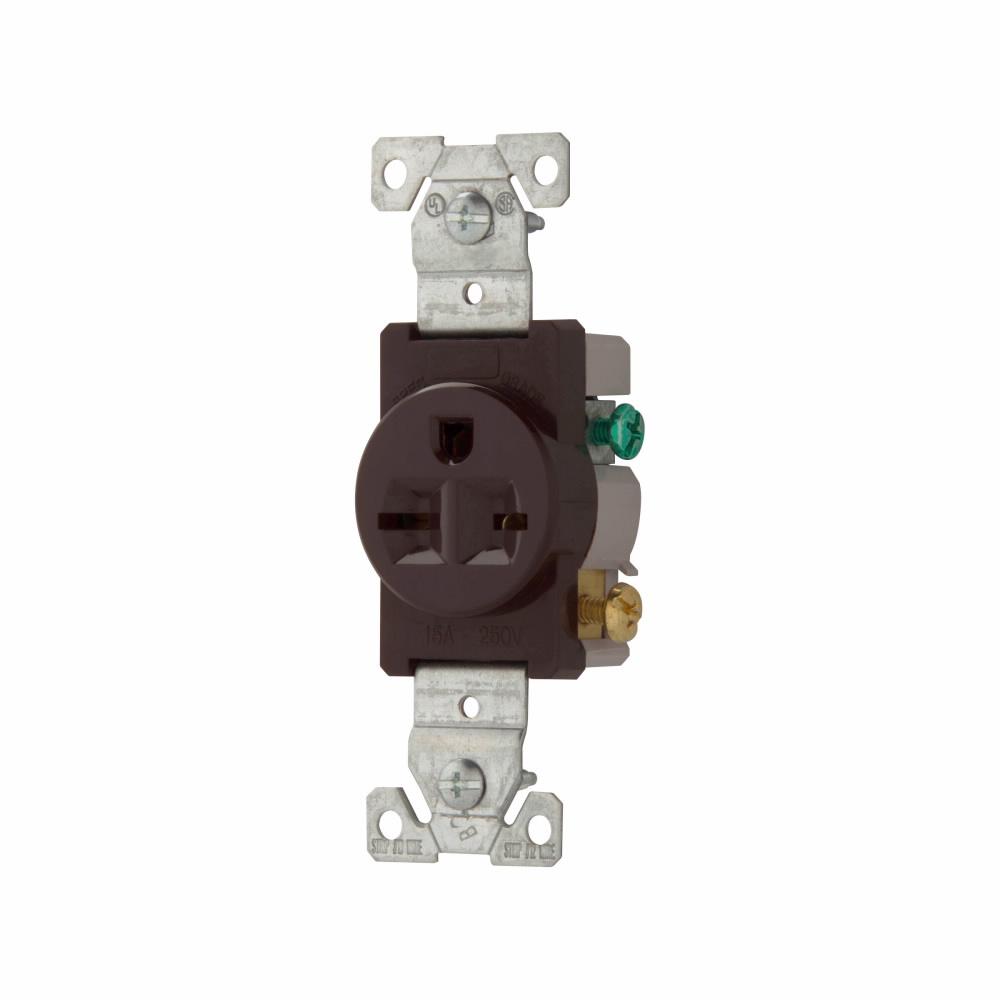

EATON Arrow Hart™ Eaton Wiring Devices 816B-BOX Single Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, Brown

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD816BBOX
  • MPN: 816B-BOX
  • UPC:032664182105
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Standard single receptacles. longer, wider strap provides 40% more contact area to wall board. virtually eliminates floating installations. patented built-in wire stripper for 14 and 12 AWG wire to speed installation. patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips® and robertson head tools for installation flexibility. terminal screws backed out ready for wiring. side wire terminals accept up to 10 AWG solid or stranded wire. push-in terminals accept 14 AWG solid wire.

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Single, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, Nylon, Brown, 1.3 in L x 0.82 in W x 4.19 in H Dimensions

Amperage Rating      :      15 A
Color      :      Brown
Dimensions      :      1.3 in L x 0.82 in W x 4.19 in H
Grade      :      Commercial
Material      :      Nylon
NEMA Rating      :      NEMA 6-15R
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -4 to 158 deg F
Terminal Type      :      Side Wire/Screw
Type      :      Single
Voltage Rating      :      250 VAC
  • Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Screw catch feature on duplex devices speeds mounting of wallplates
  • PVC bottom housing
  • 2000 VAC dielectric strength
  • Chemical and impact-resistant
  • Nylon insulation
  • Flush mounting
  • 14 to 10 AWG wire terminal
  • 14 to 10 AWG wire terminal
