SFS15P-W EATON
EATON SFS15P-W CWDSFS15PW
Send Print
  1. pin-int

CWDSFS15PW

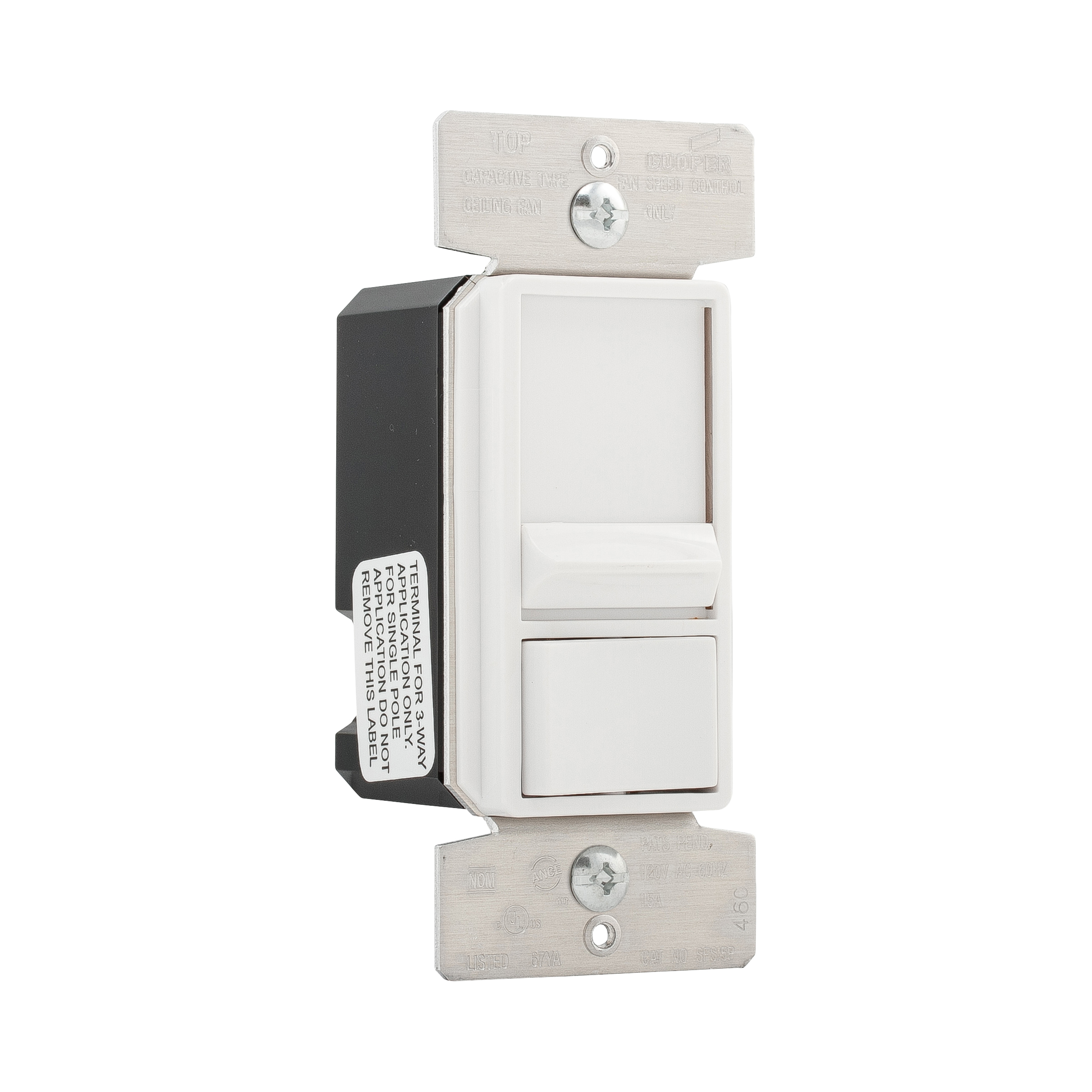

EATON SFS15P-W Residential Fan Speed Control, 120 V, 1.5 A, 3-Speed Operational Mode, Polycarbonate, White

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDSFS15PW
  • MPN: SFS15P-W
  • UPC:032664663321
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's fan controls vary the speed of air flow and employ special circuitry to quiet the fan's motor at low speeds. Install the device in place of a standard switch to add convenient fan control with quiet, smooth actuation. Tri-combo and ground screws help allow easy accesibility and installation. The top and back body are virtually unbreakable, and the device features electrostatic discharge protection, radio frequency interface filtering, and power failure memory. Eaton fan controls are available with color change kits and are compatible with traditional-style or screwless wallplates.

EATON Fan Speed Control, Residential, 120 V, 1.5 A, 3-Speed/Preset Operational Mode, Flush Mounting, 0 to 40 deg C, Polycarbonate, White, 4.28 in H x 2.03 in W

Amperage Rating      :      1.5 A
Color      :      White
Dimensions      :      4.28 in H x 2.03 in W
Material      :      Polycarbonate
Mounting      :      Flush
Operational Mode      :      3-Speed
Temperature Rating      :      0 to 40 deg C
Type      :      Residential
Voltage Rating      :      120 VAC
  • No neutral required
  • 60 Hz frequency rating
  • Maintained closure
  • Fan load type
  • 14 to 12 AWG wire
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Crouse-Hinds_SFS15P-W_Brochure.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6c0722c91cab95331d333642abc3d76dca691ce2904b2efe5e5c9c5e9ddd835f.pdf
