CRL630R EATON
EATON CRL630R CWDCRL630R
Send Print
  1. pin-int

CWDCRL630R

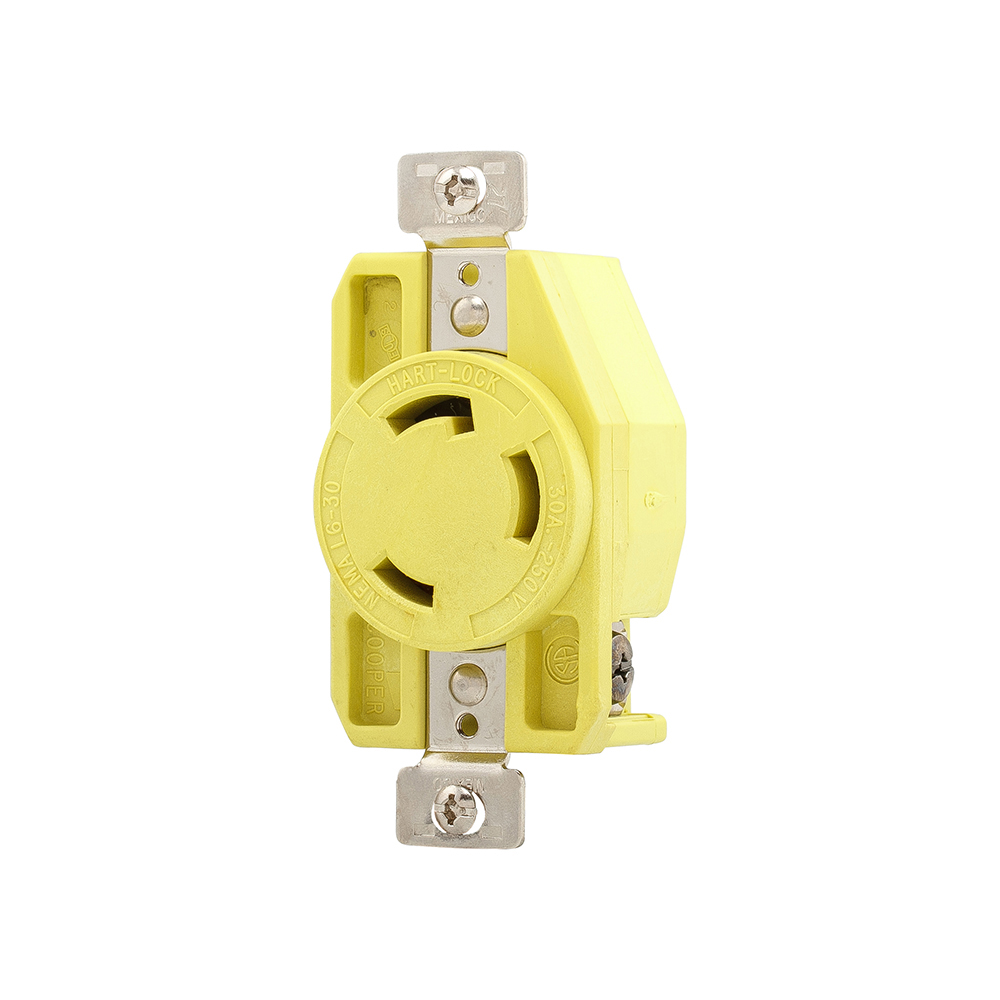

EATON Hart-Lock® CRL630R Single Locking Receptacle, 250 V, 30 A, 2 Poles, 3 Wires, Yellow

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDCRL630R
  • MPN: CRL630R
  • UPC:040893682495
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Hart-Lock® Locking Receptacle, Single, 250 V, 30 A, 2 Pole, 3 Wires, L6 to 30 NEMA Rating, Industrial Grade, Back Wire Terminal, Thermoplastic, Yellow

Amperage Rating      :      30 A
Color      :      Yellow
Grade      :      Industrial
Material      :      Thermoplastic
NEMA Rating      :      L6 to 30
Number of Poles      :      2
Number of Wires      :      3
Terminal Type      :      Back Wire
Type      :      Single
Voltage Rating      :      250 V
  • 14 to 10 AWG wire
  • Environmental resistance - corrosion resistant
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d2bb29e2b96ef958170f1f7f2c55e3925b9ca33c7737fb2b525207723d8508fc.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2cd86f4abf9daa76e89edac8790856aaa52ca9758ed0d01572581217fee04c9f.pdf
