SFS5-GY EATON
EATON SFS5-GY CWDSFS5GY
Send Print
  1. pin-int

CWDSFS5GY

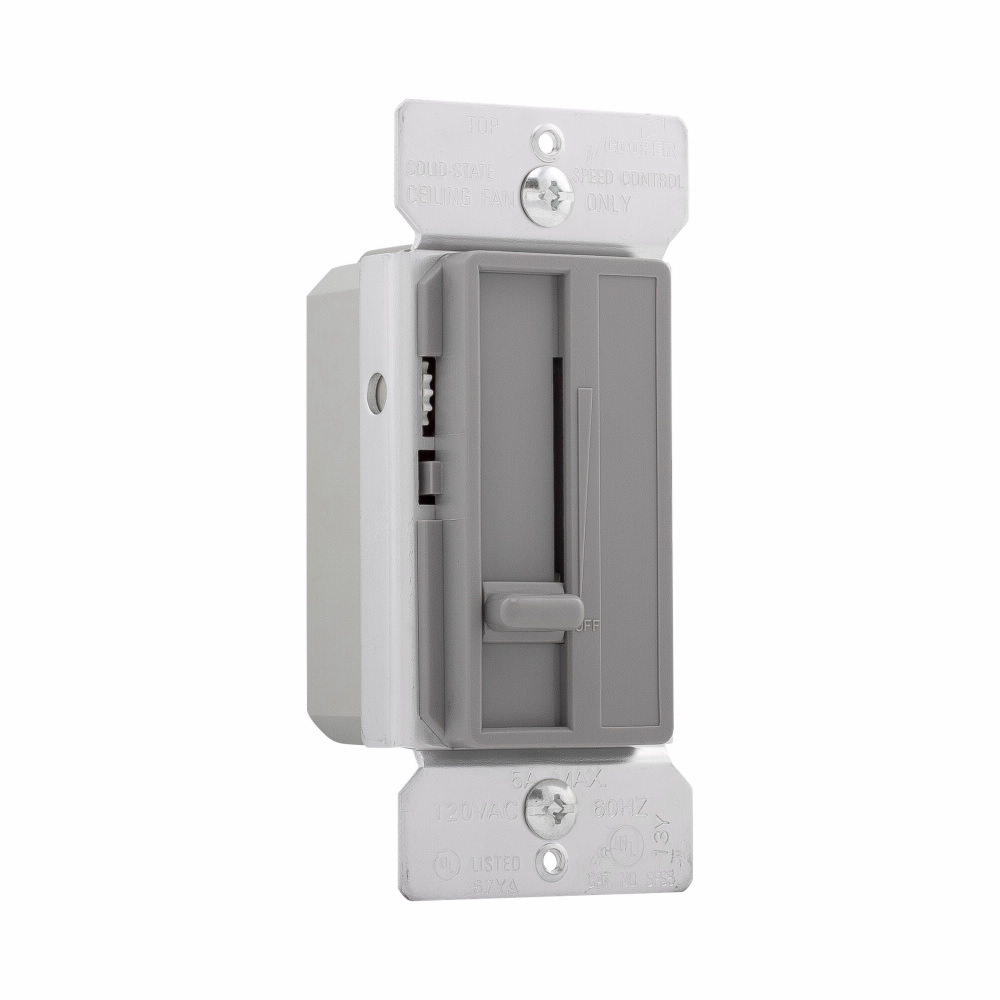

EATON SFS5-GY 1-Pole VACariable Fan Speed Control, 120 VAC, 5 A, 3-Way Operational Mode, Polycarbonate, Gray

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDSFS5GY
  • MPN: SFS5-GY
  • UPC:032664713101
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's fan controls vary the speed of air flow and employ special circuitry to quiet the fan's motor at low speeds. Install the device in place of a standard switch to add convenient fan control with quiet, smooth actuation. Tri-combo and ground screws help allow easy accesibility and installation. The top and back body are virtually unbreakable, and the device features electrostatic discharge protection, radio frequency interface filtering, and power failure memory. Eaton fan controls are available with color change kits and are compatible with traditional-style or screwless wallplates.

EATON Fan Speed Control, 1-Pole Variable, 120 V, 5 A, 3-Way/Maintained Operational Mode, Flush Mounting, Back/Side Wire Terminal, 0 to 40 deg C, Polycarbonate, Gray

Amperage Rating      :      5 A
Color      :      Gray
Material      :      Polycarbonate
Mounting      :      Flush
Operational Mode      :      3-Way
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Back/Side Wire
Type      :      1-Pole Variable
Voltage Rating      :      120 VAC
  • 14 to 12 AWG wire
  • Trim adjustment
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c9d10a86319321c518f5f157491bc10933920f395021f276e2315f4b23f11240.pdf
