AIM10-V EATON
EATON AIM10-V CWDAIM10V
Send Print
  1. pin-int

CWDAIM10V

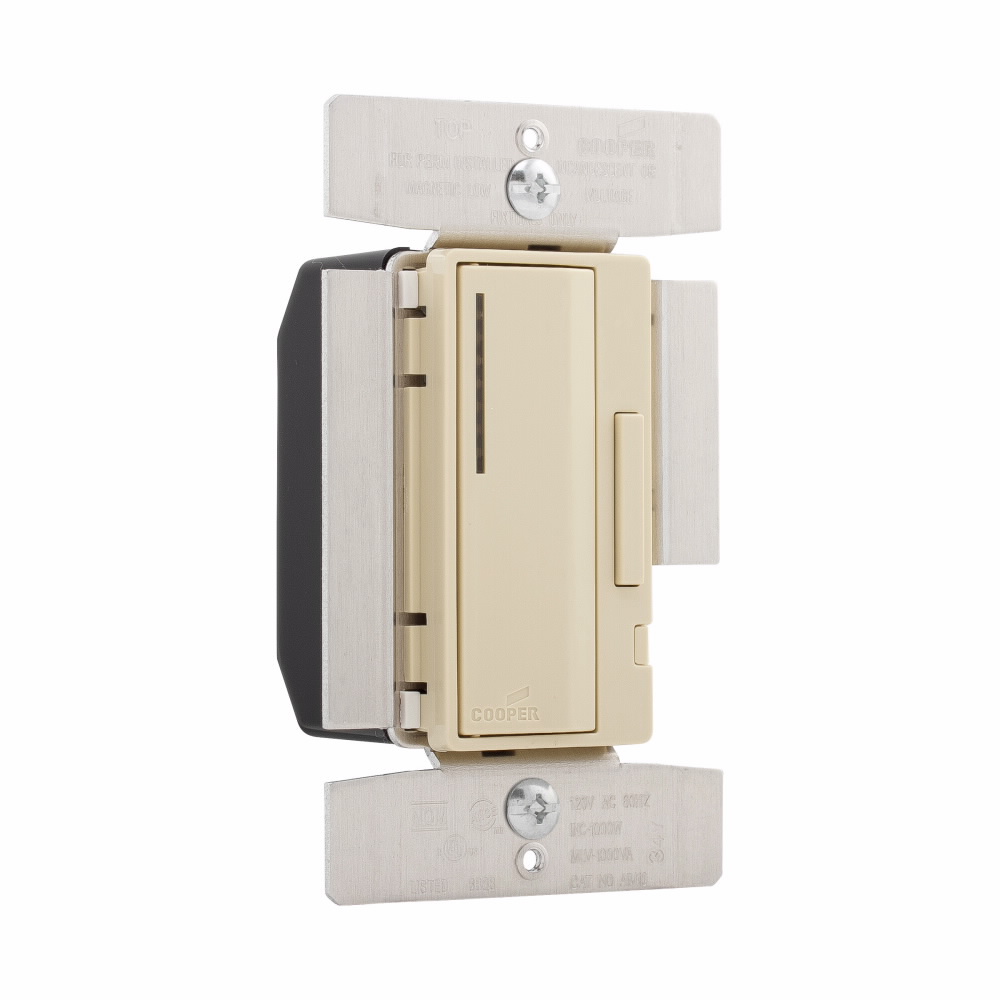

EATON AIM10-V Multi-Location Smart Dimmer Switch, 120 V, 1 Poles, Maintained Operation, Ivory

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAIM10V
  • MPN: AIM10-V
  • UPC:032664706905
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Using the latest in dimming technology, Eaton's dimmers let you adjust the level of your lighting at the light switch, so you can bring the right look to the room and save money at the same time. That s because lighting controls reduce the amount of electricity used by your lights, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton's lighting controls are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent; and they come in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

EATON Smart Dimmer Switch, Multi-Location, 120 V, 1000 W Power, 60 Hz Frequency, 1 Pole, Incandescent/Halogen Lamp, Operation Mode: Maintained, Flush Mounting, Lead Wire Terminal, 0 to 40 deg C, Polycarbonate, Ivory, 2.44 in L x 3 in W x 4.44 in H Dimensions

Color      :      Ivory
Dimensions      :      2.44 in L x 3 in W x 4.44 in H
Frequency Rating      :      60 Hz
Lamp Type      :      Incandescent/Halogen
Material      :      Polycarbonate
Mounting Type      :      Flush
Number of Poles      :      1
Operation Mode      :      Maintained
Power Rating      :      1000 W
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Lead Wire
Type      :      Multi-Location
Voltage Rating      :      120 V
  • Push pad actuator
  • Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
  • Push pad design provides minimal travel and crisp actuation
  • Preset feature allows user to return to previous light setting when turning lights on
  • LED light level display for presetting illumination levels and master/accessory units for multi-location control
  • Amber LED at bottom of LED display indicates ON/OFF load status
  • Pressing and holding push pad for 2 s when dimmer is OFF brings light to full brightness without affecting preset levels
  • Offers a 10 s delayed OFF feature by pressing and holding push pad for 2 s when dimmer is on
  • Installation speed enhancements include virtually unbreakable, ultrasonically welded top and backbody, extra long, extra wide mounting straps and easy access ground screws
  • Air-gap switch disconnects power from load, forcing an OFF condition
  • Radio frequency interference (RFI) filtering for radio, audio and video equipment
  • Power failure memory, electrostatic discharge protection
  • Square law dimming, perceived dimming level is proportional to the slider position
