CWL920P EATON
EATON CWL920P CWDCWL920P
Send Print
  1. pin-int

CWDCWL920P

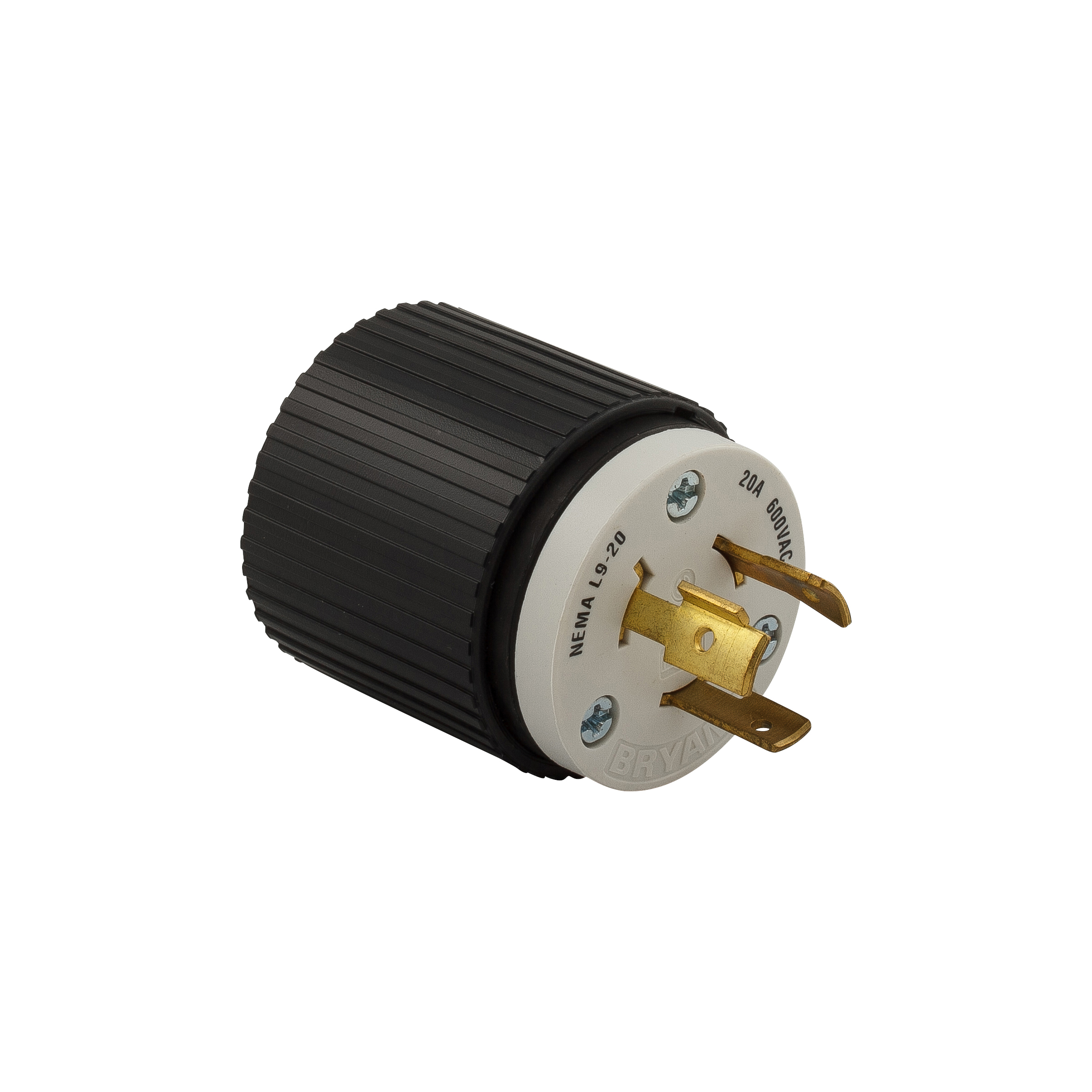

EATON AutoGrip™ CWL920P Locking Plug, 600 V, 20 A, 2 Poles, 3 Wires, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDCWL920P
  • MPN: CWL920P
  • UPC:040893678320
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON AutoGrip™ Locking Plug, 600 V, 20 A, 2 Pole, 3 Wires, NEMA L9 to 20 NEMA Rating, Industrial Grade, 0.3 to 0.95 in Diameter Cord, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Black, 2.13 in L x 2.13 in W x 3.9 in H Dimensions

Amperage Rating      :      20 A
Color      :      Black
Cord Diameter      :      0.3 to 0.95 in
Dimensions      :      2.13 in L x 2.13 in W x 3.9 in H
Grade      :      Industrial
Material      :      Nylon
NEMA Rating      :      NEMA L9 to 20
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -40 to 60 deg C
Terminal Type      :      Back/Side Wire
Voltage Rating      :      600 V
  • 18 to 8 AWG wire
  • Straight body
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_26b52ab331ed2ccf8a8877c539ecbcf95866f97e3ab3a5d84f4d8703e67c238d.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_31f95f2d77f1b22ea768fdcaf9ba4631e5cdc6ec1d64a5e61a12752c348e04a7.pdf
