L2330CW EATON
EATON L2330CW CWDL2330CW
Send Print
  1. pin-int

CWDL2330CW

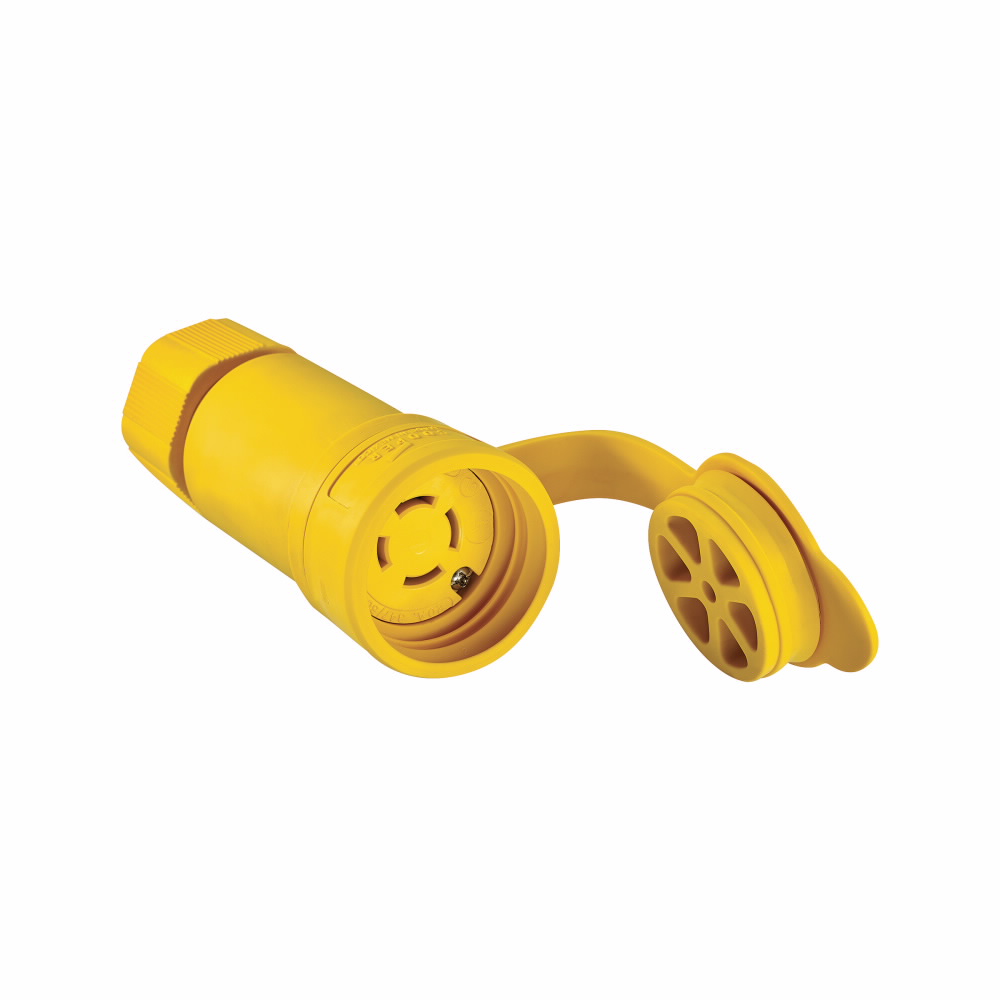

EATON Arrow Hart™ Hart-Lock® L2330CW 3-Phase Grounding Watertight Locking Connector, 347/600 VAC, 30 A, 4 Poles, 5 Wires, Yellow

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDL2330CW
  • MPN: L2330CW
  • UPC:040893642567
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Hart-Lock® industrial specification grade locking devices watertight plug and connector 30 A, 3-phase 347/600 VAC NEMA L23-30 4-pole/5-wire. Superior design and performance make arrow Hart™ Hart-Lock® devices the ideal choice for industrial applications. Available in a wide range of NEMA and Non-NEMA configurations.

EATON Arrow Hart™ Hart-Lock® Locking Connector, 3-Phase Grounding Watertight, 347/600 VAC, 30 A, 4 Pole, 5 Wires, NEMA L23-30 NEMA Rating, Industrial Grade, IP67 Enclosure, 0.43 to 1.15 in Diameter Cord, -40 to 167 deg F, Back/Side Wire Terminal, Santoprene™ TPE, Yellow

Amperage Rating      :      30 A
Color      :      Yellow
Cord Diameter      :      0.43 to 1.15 in
Enclosure      :      IP67
Grade      :      Industrial
Material      :      Santoprene™ TPE
NEMA Rating      :      NEMA L23-30
Number of Poles      :      4
Number of Wires      :      5
Temperature Rating      :      -40 to 167 deg F
Terminal Type      :      Back/Side Wire
Type      :      3-Phase Grounding Watertight
Voltage Rating      :      347/600 VAC
  • Nickel plated contacts, blades and terminal screws provide corrosion-resistance
  • Quick-drive Tri-combo stainless steel assembly screws provide corrosion-resistance and fast assembly
  • Tapered individual wire pockets guide wire into contact area for ease of installation
  • Innovative sealing system provides multipoint watertight seal
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6b6892ff82435af79200742979369c931dcc5ae1f6e65369a591c79cc627cf6d.pdf
