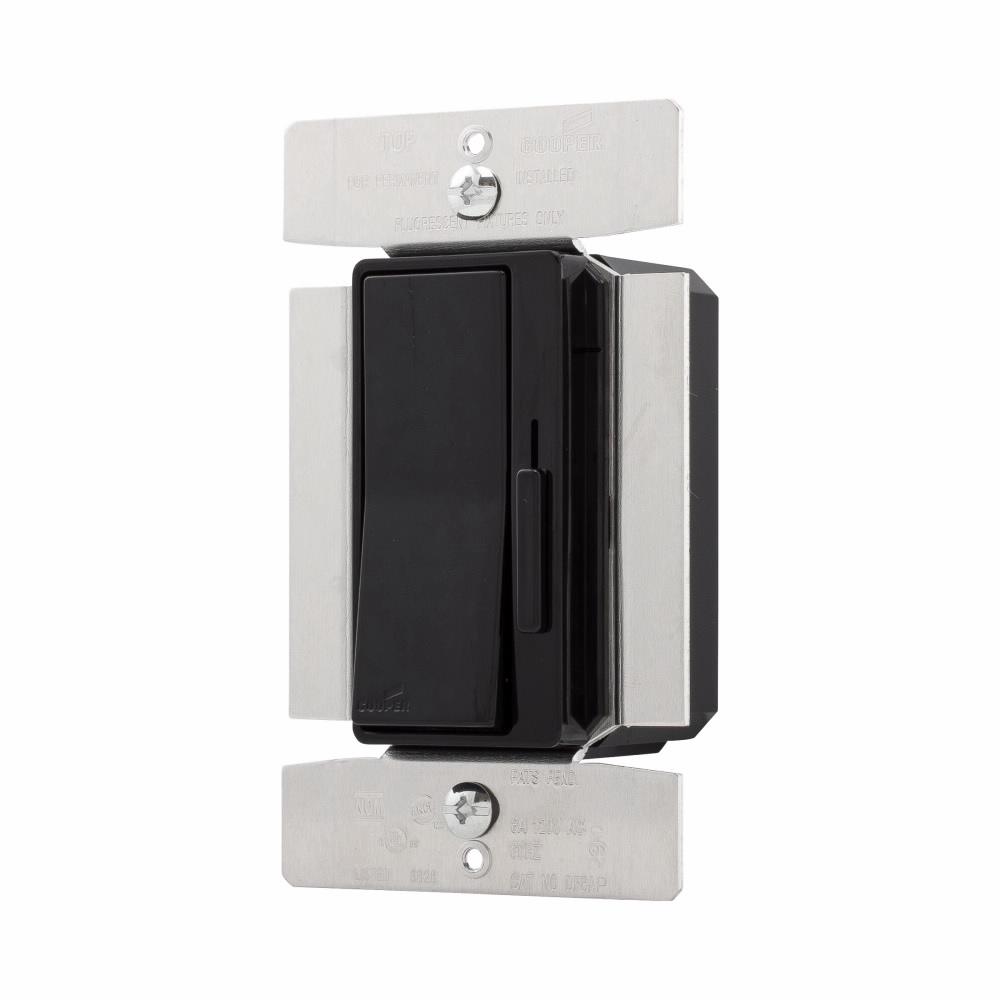

EATON DF8AP-BK Preset Decorator Dimmer, 120 VAC, 8 A, 1 Poles, 3-Way On/Off Operation, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • UPC:032664677120
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Using the latest in dimming technology, Eaton's dimmers let you adjust the level of your lighting at the light switch, so you can bring the right look to the room and save money at the same time. That s because lighting controls reduce the amount of electricity used by your lights, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton's lighting controls are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent; and they come in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

EATON Decorator Dimmer, Preset, 120 VAC, 8 A, 1000 W Power, 60 Hz Frequency, 1 Pole, ELV/Fluorescent/Halogen/Incandescent/LED/MLV Lamp, Operation Mode: 3-Way On/Off, Back/Side Wire Terminal, Black

Amperage Rating      :      8 A
Color      :      Black
Frequency Rating      :      60 Hz
Lamp Type      :      ELV/Fluorescent/Halogen/Incandescent/LED/MLV
Number of Poles      :      1
Operation Mode      :      3-Way On/Off
Power Rating      :      1000 W
Terminal Type      :      Back/Side Wire
Type      :      Preset
Voltage Rating      :      120 VAC
  • Preset feature allows user to return to previous light level when turning lights ON
  • Integrated full-slide control for easy, precise operation
  • Device can be wired into either three-way location (load side or line side)
  • Neutral is not required for installation of device
  • Electrostatic discharge protection
  • Replaces a standard switch and offers dimmer capabilities
  • Square law dimming - Perceived dimming level is proportional to the slider position
  • Power failure memory
  • Precise color matching to match room decor
  • Compatible with any decorator wallplate or screwless decorator wallplate
  • Adjustable high-end trim
  • Compatible with Mark 10® Powerline, AmbiStar® and Tu-wire® dimmable ballasts
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Eaton_DF8APBK_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DF8AP_BK_Manual.pdf
