9534SG EATON
EATON 9534SG CWD9534SG
Send Print
  1. pin-int

CWD9534SG

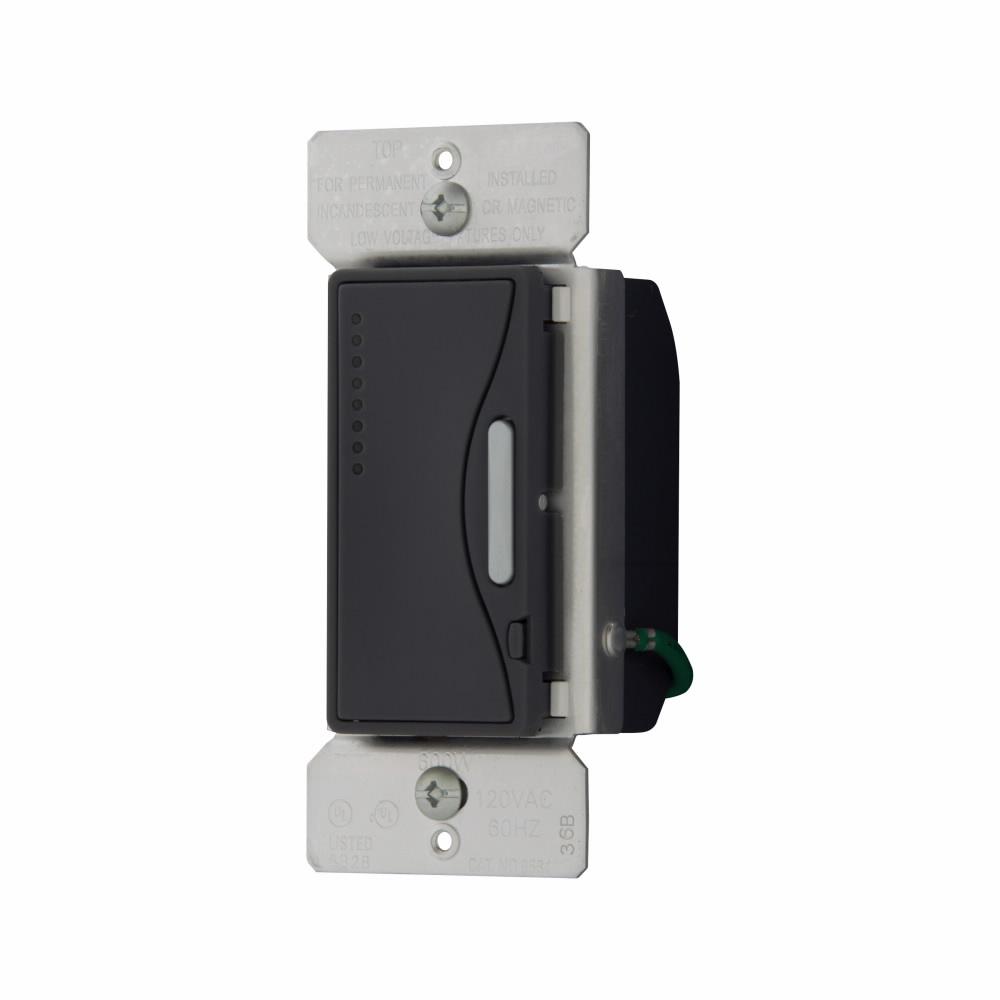

EATON ASPIRE™ 9534SG 3-Way Multi-Location Smart Dimmer, 120 VAC, 1 Poles, Preset Operation, Silver Granite

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD9534SG
  • MPN: 9534SG
  • UPC:032664646102
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

ASPIRE™ smart dimmers provide a smooth, full range digital dimming for incandescent, magnetic low voltage, electronic low voltage and fluorescent lighting. In addition, an accessory dimmer is included in the product series for multi-location control for up to 5 locations. This line offers combined 1-pole/multi-location units for 600 W, 1000 W or 1000 VA lamp loads. All ASPIRE™ dimmers are compatible with any ASPIRE™ screw less decorator designer style wallplates.

EATON ASPIRE™ Smart Dimmer, 3-Way Multi-Location, 120 VAC, 600 W Power, 60 Hz Frequency, 1 Pole, Halogen/Incandescent/LED Lamp, Operation Mode: Preset, Push Pad Control, Flush Mounting, Lead Wire Terminal, 0 to 40 deg C, Polycarbonate, Silver Granite, 1.73 in L x 4.2 in H x 1.38 in D Dimensions

Color      :      Silver Granite
Control      :      Push Pad
Dimensions      :      1.73 in L x 4.2 in H x 1.38 in D
Frequency Rating      :      60 Hz
Lamp Type      :      Halogen/Incandescent/LED
Material      :      Polycarbonate
Mounting Type      :      Flush
Number of Poles      :      1
Operation Mode      :      Preset
Power Rating      :      600 W
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Lead Wire
Type      :      3-Way Multi-Location
Voltage Rating      :      120 VAC
  • Electro-Mechanical push pad for On/Off operation with separate DIM/bright bar
  • Push pad design provides minimal travel and crisp actuation
  • Preset feature allows user to return to previous light level when turning lights on
  • LED light level display for pre-setting illumination levels and master/accessory units for multi-location control
  • Amber LED at bottom of LED display indicates On/Off load status
  • Seven step green LED display on push pad indicates selected light level and reduces brightness when Off night light feature
  • Pressing and holding push pad for 2 s when dimmer is Off brings light to full brightness without affecting pre-set levels
  • Offers a 10 s delayed Off feature by pressing and holding push pad for 2 s when dimmer is ON
  • Replaces a standard switch and offers dimmer capabilities
  • Digital circuitry provides aesthetically pleasing soft on/fade off that extends lamp life
  • Neutral is not required for installation of device
  • Incandescent and magnetic low voltage offered in single unit versions
  • Installation speed enhancements include virtually unbreakable, ultrasonically welded top and back body, extra long, extra wide mounting straps and easy access ground screws
  • Air gap switch disconnects power from load, forcing an Off condition
  • Radio frequency interference (RFI) filtering for radio, audio and video equipment
  • Decorator form factor
  • ASPIRE™ design system
